Screw M3 X 20
Cover Panel
Main unit attenuator

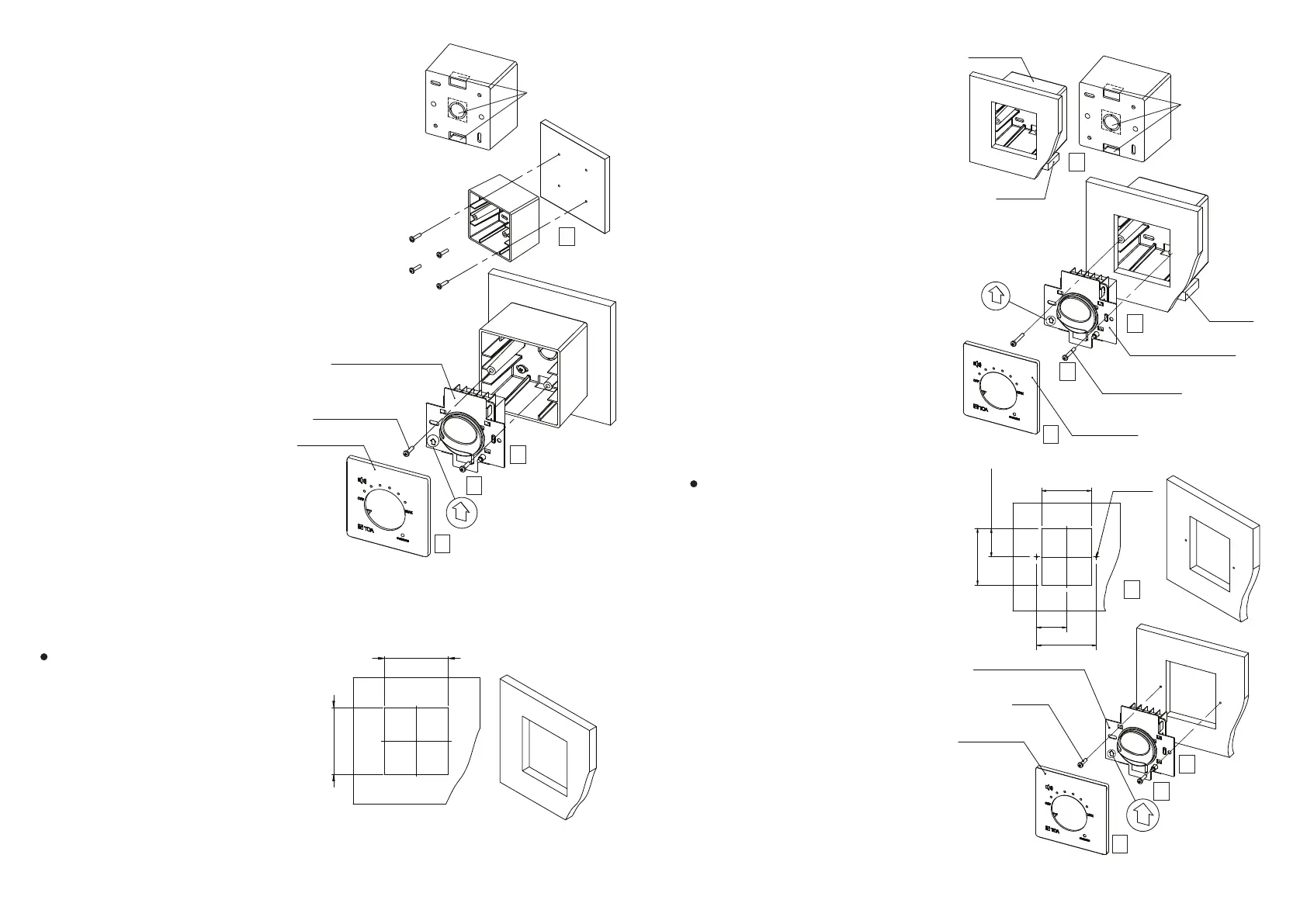

3.2. FLUSH MOUNTING
Flush mounting installation can be implemented in 2 ways, with back box or without back box.
3.2.1 FLUSH MOUNTING WITH BACK BOX
3.2.2 FLUSH MOUNTING WITHOUT BACK BOX
Install the back box with suitable
screws on the surface of the wall.
Connect the recommended cable to
the terminal.
WARNING :
Do not supply 24V DC when connect-
ing 4-wire attenuator system.
Install the main unit to the back box.
Attach the cover panel to the main
unit attenuator until the hook mount
clips perfectly.
Cut this area for
the lane cables.
Step 1.
Step 2.
Step 3.
Step 4.
Unit : mm
65 - 70
69 - 73
WALL
To prepare for installation, mark the
opening on the wall with rectangular
pattern as shown in the picture.
Install the back box inside the wall.
Connect the recommended cable to
the terminal.
WARNING :
Do not supply 24V DC when connect-
ing 4-wire attenuator system.
Install the main unit to the back box.
Attach the cover panel to the main
unit attenuator until the hook mount
clips perfectly.
Step 1.
Step 2.
Step 3.
Step 4.
Cover Panel
Screw M3 X 20
Main unit Attenuator
Support
To prepare for installation, mark the
opening on the wall as shown in the
picture. This mounting method can be
used for all models.
Make opening on the wall.
Connect the recommended cable to
the terminal.
WARNING :
Do not supply 24V DC when
connecting 4-wire attenuator
system.
Install the main unit directly to the
wall using screws that are suitable
for the kind of wall.
Attach the cover panel to the main
unit attenuator until the hook mount
clips perfectly.
Step 1.
Step 2.
Step 3.
Step 4.
57 - 60
72
34.5 - 36.5
36
2 holes
WALL
Cover Panel
Screw
Main unit Attenuator
69 - 73
Unit : mm
Back Box
Support
4
1
2
3
2
4
3
1
2
4
3
1
Cut this area for
the lane cables.
