www.tkaudio.se
Specifications:
Input impedance: 20kohm
Max input level: +26dBu
Max output level: +26dBu
S/N ratio @ 0dBu: 89dB, depends on which stages that are activated
Dynamic range: 115dB
Power consumption: 13VA
Power requirement: 115v or 230v internally selectable
Features:
TX Drive control
TX Drive in/out
Gain, up to +20dB
Channel in/out
Saturation in/out
Even in/out (adds even harmonics to the saturation circuit)
Output trim, -20dB to 0dB
Ge stage in/out
Class-A in/out
HF in/out, (class-A stage HF boost)
Blend control, between harmonics stages and dry signal
M/S in/out
All switches are illuminated
Specifications and components may be changed or updated without further notice.

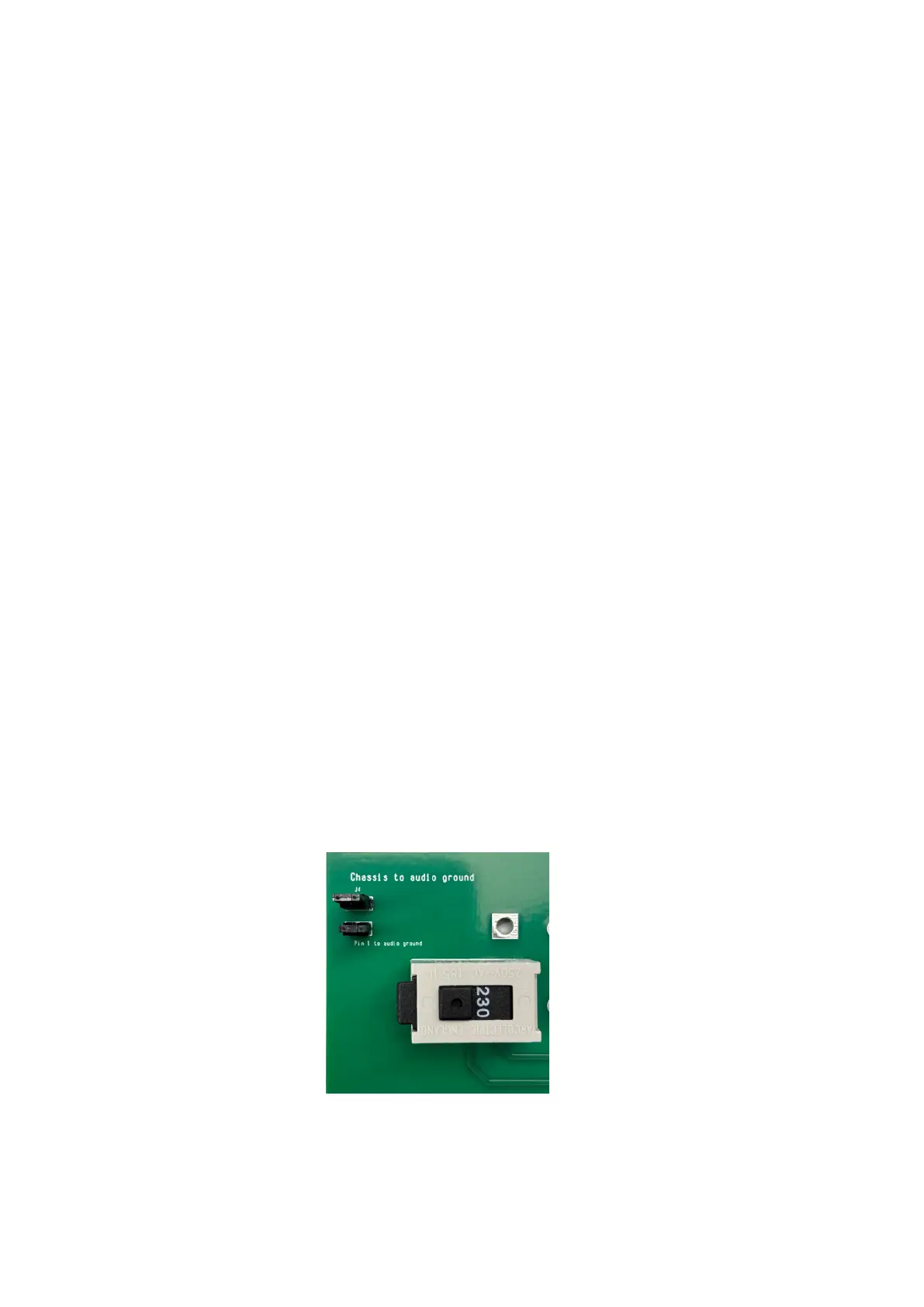

Two ground jumpers are provided inside the unit.
Jumper 1 (J4) disconnects the audio ground from the chassis.
Jumper 2 disconnects pin 1 on all four XLR connectors.
If you experience hum or a higher noise level than normal, try remove the J4 jumper!
