HDMI/SDI-QAM-IPLL
Thor Fiber Tel: (800) 521-84 Email: sales@thorfiber.com https://thorbroadcast.com/ http://www.thormodulators.com/
IP Output

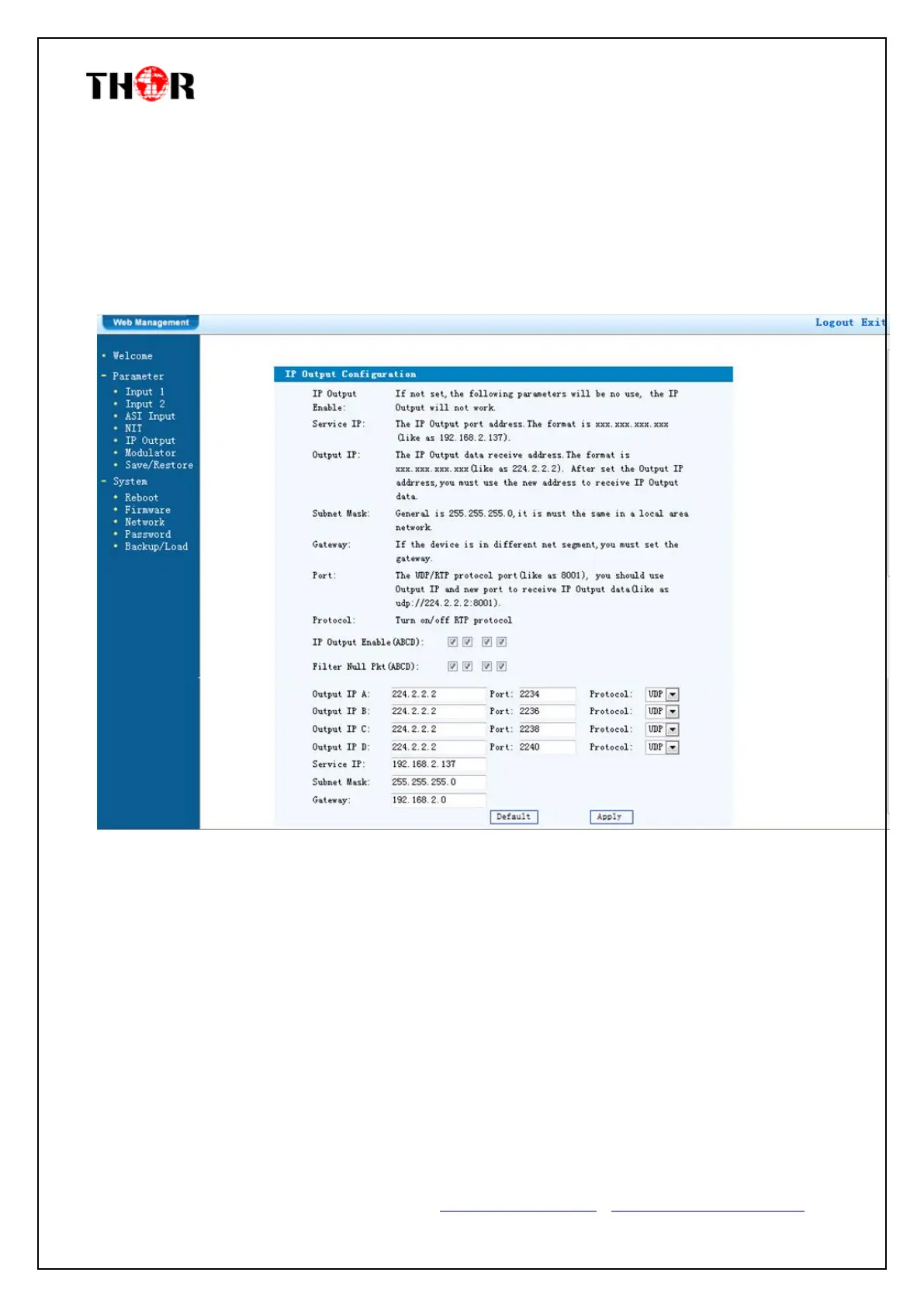

Click “IP Output” from the left menu, it will display the screen shown in Figure-8 where to configure
the 4 IP SPTS Outputs.
After setting the parameters, click “Apply” to save the setting.
Figure-8
Modulator Setting
This unit is equipped with 4 adjacent frequency output. You can configure 4 carrier outputs here.
NOTE: Different modulation standards have different bandwidths. (See specifications in Chapter 1).
After setting all the parameters, click on “Apply” to save the Modulator parameters.
