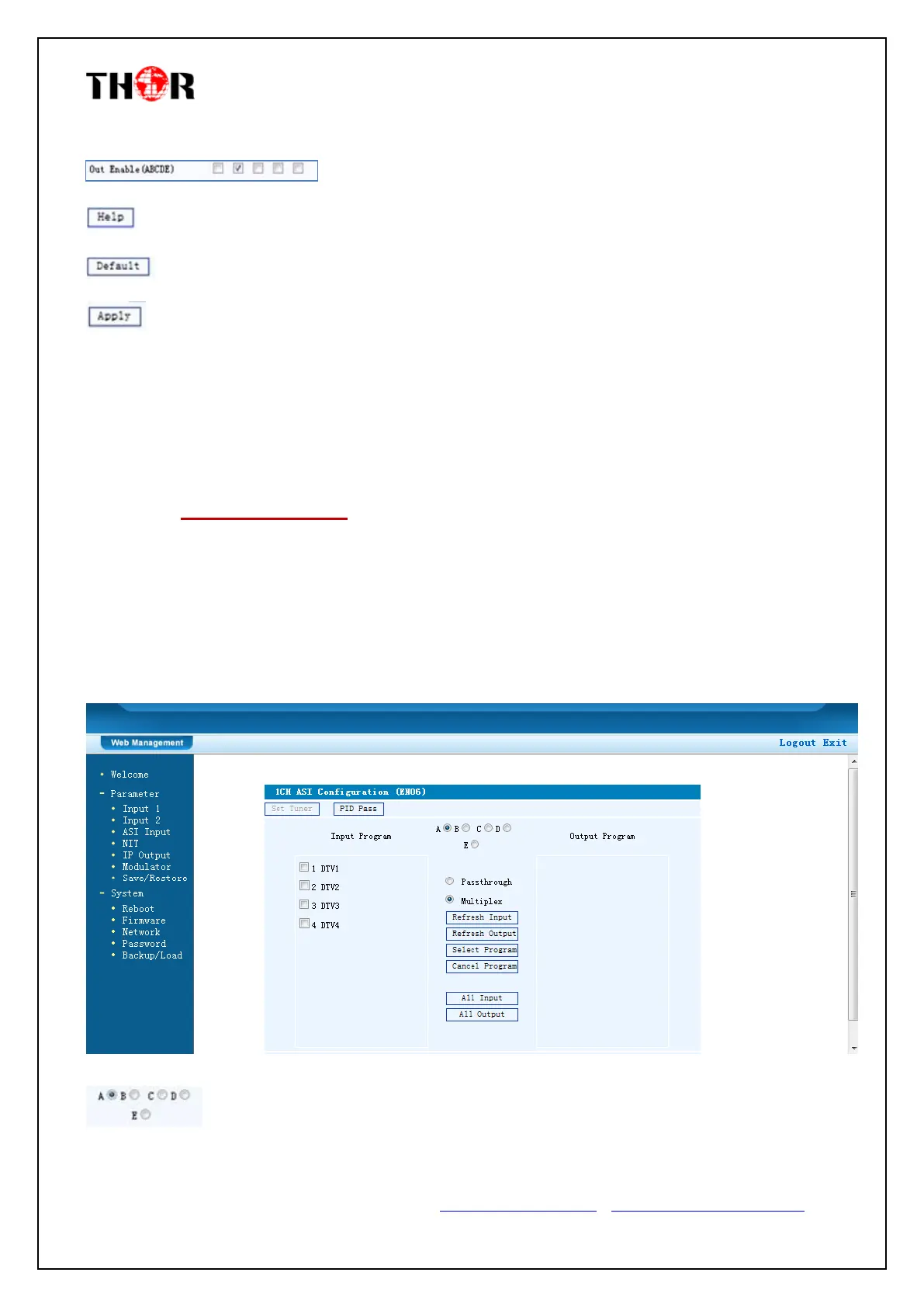

HDMI/SDI-QAM-IPLL
Thor Fiber Tel: (800) 521-84 Email: sales@thorfiber.com https://thorbroadcast.com/ http://www.thormodulators.com/
You can choose the output program from 4 carriers (A, B, C, D) or ASI(E).
Further assistance if necessary
Click this button to apply the default settings of Input 1
Click this button to apply the modified parameters.
…..………………………………..... NOTE……..……..………………………….
The different combination of Video Format, Video Bit-rate, Low Delay Mode and the Resolution of
signal source will have an impact on the latency. Please refer to the Appendix attached for detailed
information. Mode 1 is the Fastest.
…………………………………………………………………………………………..……
ASI Input
Click “ASI Input”, it will display ASI input program information as shown in Figure-4.Parse and
multiplex ASI IN programs in this interface.
Figure-4
The letters A to D represent the 4 carrier outputs. E represents the ASI
output.Configure different program groups for each carrier output.
