4.1 Pin assignment
You can use XLR and 1/4" plugs with balanced or unbalanced wiring. In the following we will
give you an overview of the various possibilities.

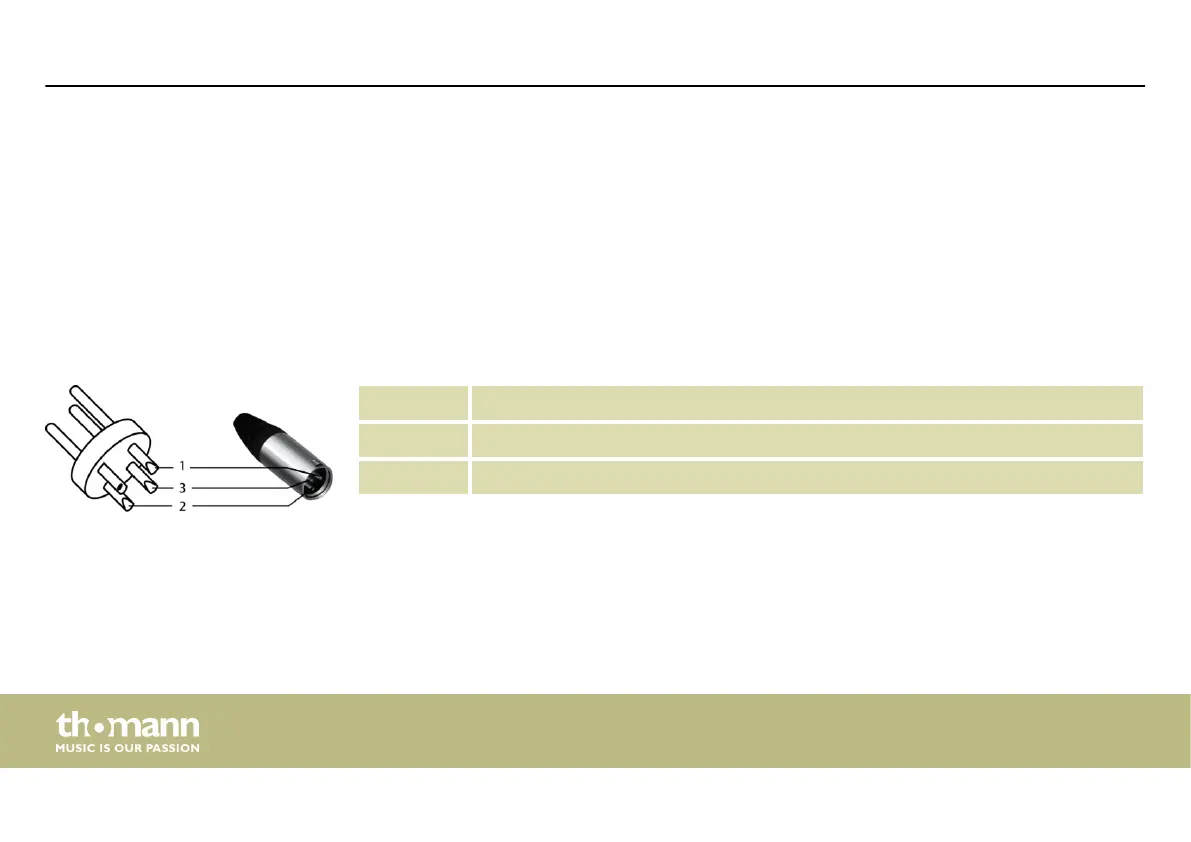

XLR mounting sockets are used for signal inputs. XLR mounting plugs provide the output sig‐
nals. Drawing and table indicate the XLR pin assignment.
Balanced wiring:
1 Ground, shielding
2 Positive signal (+)
3 Negative signal (–)
XLR connections for signal
inputs and outputs
Installation
full-range speaker
14
