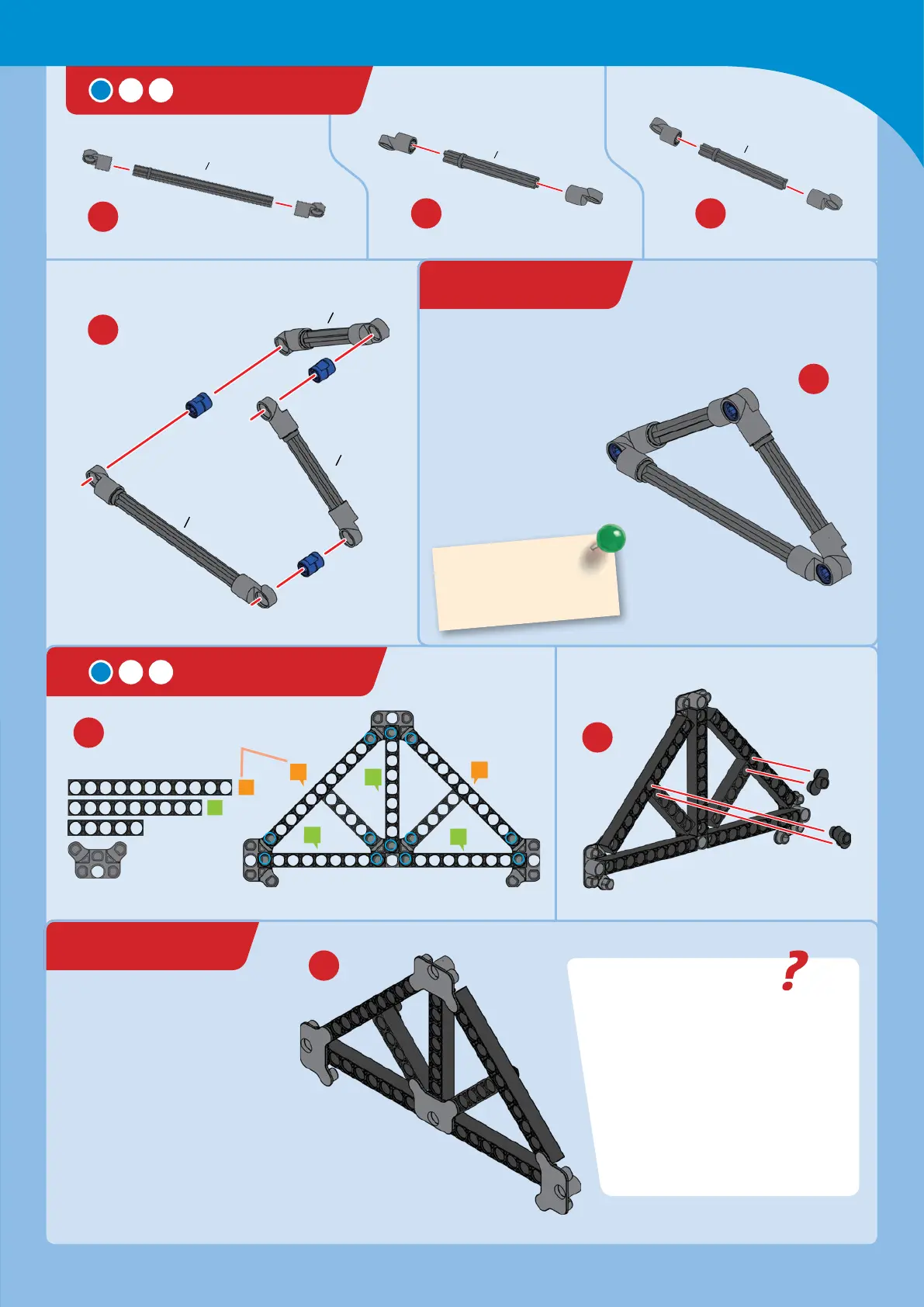

TRIANGLE
SIMPLE TRUSS
EXPERIMENT 4
HERE’S HOW
Push and pull on the corners of the
simple truss. Observe how it
responds to these forces. Compare
this to the previous experiments.
Simple truss
EXPERIMENT 3
HERE’S HOW
Repeat Experiment 1
with the triangle. How
does the triangle
compare to the square
and braced square?
Minimizing materials
Done!
5
3
Done!
The triangle is the
simplest geometric
shape that is stable.
7
Triangle and Simple Truss
WHAT’S HAPPENING
Structural engineers regularly combine
simple, well-understood elements
together to build more complex
structures. In this case, four triangles
are combined together to form what is
called a simple truss. The truss uses a
relatively small amount of material
to achieve a relatively large amount
of stability.
Note: These callouts indicate
the number of holes in the rods.
