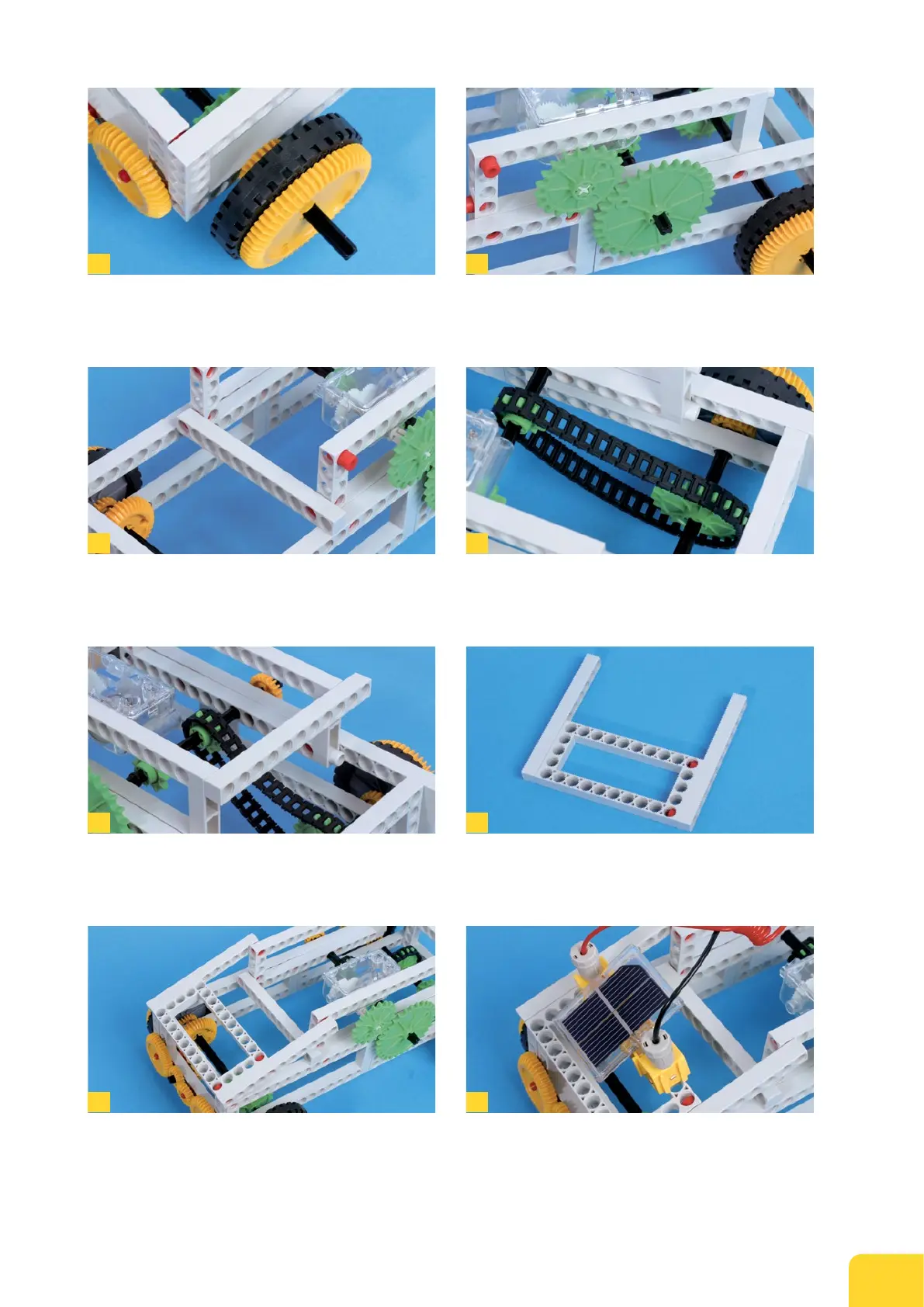

17. Now mount the four tire wheels (15) onto the front and rear axles.
For looks, add a large gear wheel (6) to the outside of each one.
19. At the front, a short rod (4) stabilizes the construction. It attaches
to the two upper frames by the two anchor pins (26).
21. At the rear as well, reinforce the construction with a short rod (4)
attached to the two long upper frames.
23. Then attach this structure at the front to the two long upper frames.
You will have to push the two rods out a little bit.
18. For the power transmission between engine shaft and drive shaft,
mount a medium sprocket wheel (10) on the engine shaft and a large
sprocket wheel (11) on the drive shaft.
20. The lower chain is made out of 43 chain links (29). Before attaching
it, adjust the two sprocket wheels so they form a straight line.
22. For the front section, connect two short rods (4) with one short
frame (3). You will need to use two anchor pins.
24. Finally, mount the battery holder (22) with the solar module (23) to
the frames at the front. Then connect the electricity cables (20/21) to
the engine.
