The Experiment Car Base

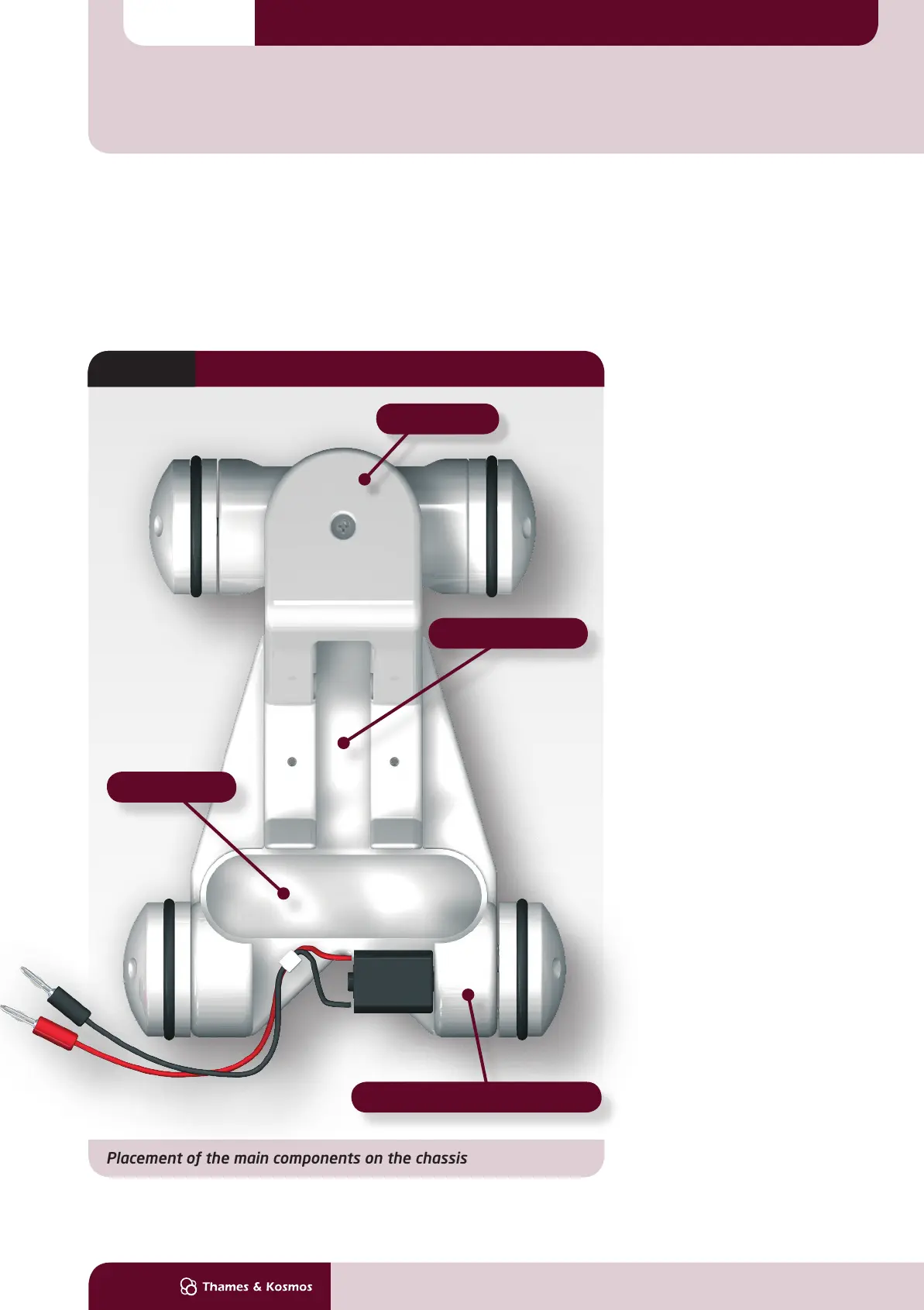

Placement of the main components on the chassis

Fuel Cell 10

Front Axle

Insert the front axle’s center

pin into the hole in the front

of the chassis from the bot-

tom. The indentation (A) must

be in the front. Secure using

the screw (B) with the ﬁxed

washer.

Tighten the screw with a small

Phillips head screwdriver to a

point where the axle can still

turn a little, but is securely at-

tached. When the indentation

(A) is oriented to the front, the

axle will stay straight.

The mobility of the front axle

can be adjusted by tightening

or loosening the screw (B).

For the experiments in this

manual and when running the

car on the display stand, the

front axle should always be

oriented straight ahead.

Wheel Mounting

The wheels, axles, and tires

come pre-assembled.

The black rubber tires, or O-

rings (D), allow for better driv-

ing on smooth surfaces.

The wheels have short con-

nector axles (E) inside them

that easily snap into the holes

in the front axle and at the

rear of the chassis.

Snap the three wheels into

the holes and roll the car on

the table or ﬂoor to make sure

all the wheels are properly

seated and rolling smoothly.

he chassis is the base of

the fuel cell car. The other

components will be attached

to it. The fuel cell will sit in

the rectangular area in the

middle of the chassis. The wa-

ter tank and the gas tanks will

be placed behind the fuel cell,

at the back of the car.

The motor and transmission

are attached directly to the

right rear wheel.

Chassis

Motor and Transmission

Fuel Cell

Gas Tank

Concept Component Layout

Chapter 2 Initial Assembly
