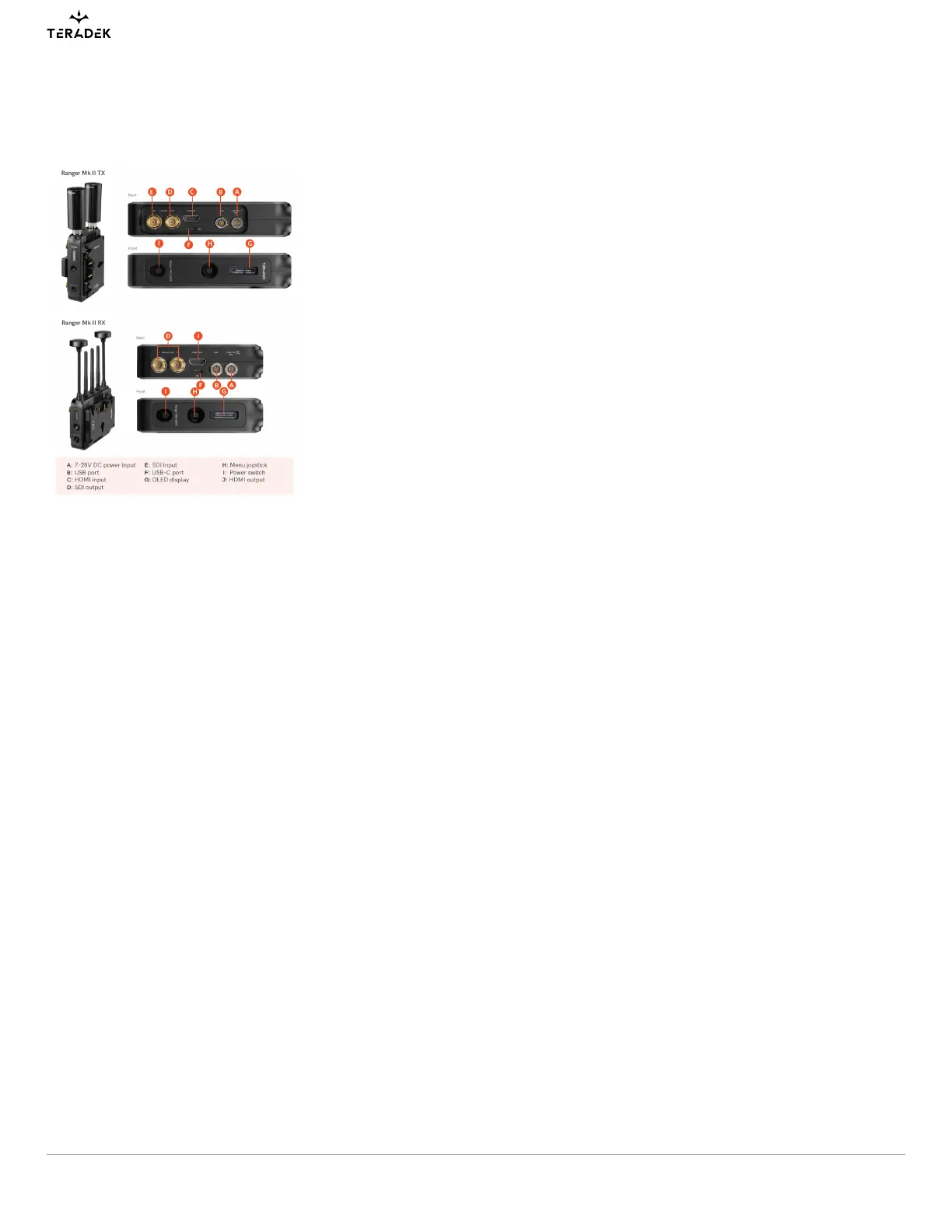

Physical Properties
Power and Connect
1. Attach the Ranger transmitter (male side) to the back of your camera.
2. Connect power to the Ranger transmitter and receiver with the included A/C adapter, or if both
devices are equipped with battery plate accessories, attach a compatible battery (Gold or V mount).
3. Connect the output from your video source to either the SDI or HDMI input (C or E) on the Ranger
transmitter. Connect either the SDI or HDMI output (D or J) from the Ranger receiver to the video
input on your monitor. NOTE: If mounting the receiver upright on a stand above the monitor, use a
right-angle SDI adapter to relieve any strain caused by the weight of the cable, and to avoid
damaging the SDI output’s internal connectors.
4. Transmitter: Attach the H and V barrel antennas to the type-N connectors on the transmitter. The V
antenna attaches to the V-connector, and the H antenna attaches to the H-connector.
Receiver: Attach the three 2dBi antennas to the receiver’s center connectors and the two horizontal
antennas to the left and right connectors.
5. Move the power switches on both the transmitter and receiver (I) to the ON position. Video appears
within a few seconds.
Pairing/Unpairing
Ranger devices purchased as a set (TX and RX), are paired by default, requiring no additional
con`guration. Ranger devices purchased separately need to be paired using the device's front panel
(OLED) menu, Launchpad, or the Ranger App. To pair your transmitter with multiple receivers, you will
Teradek User Manual
Page 7Ranger Micro | Mk II
