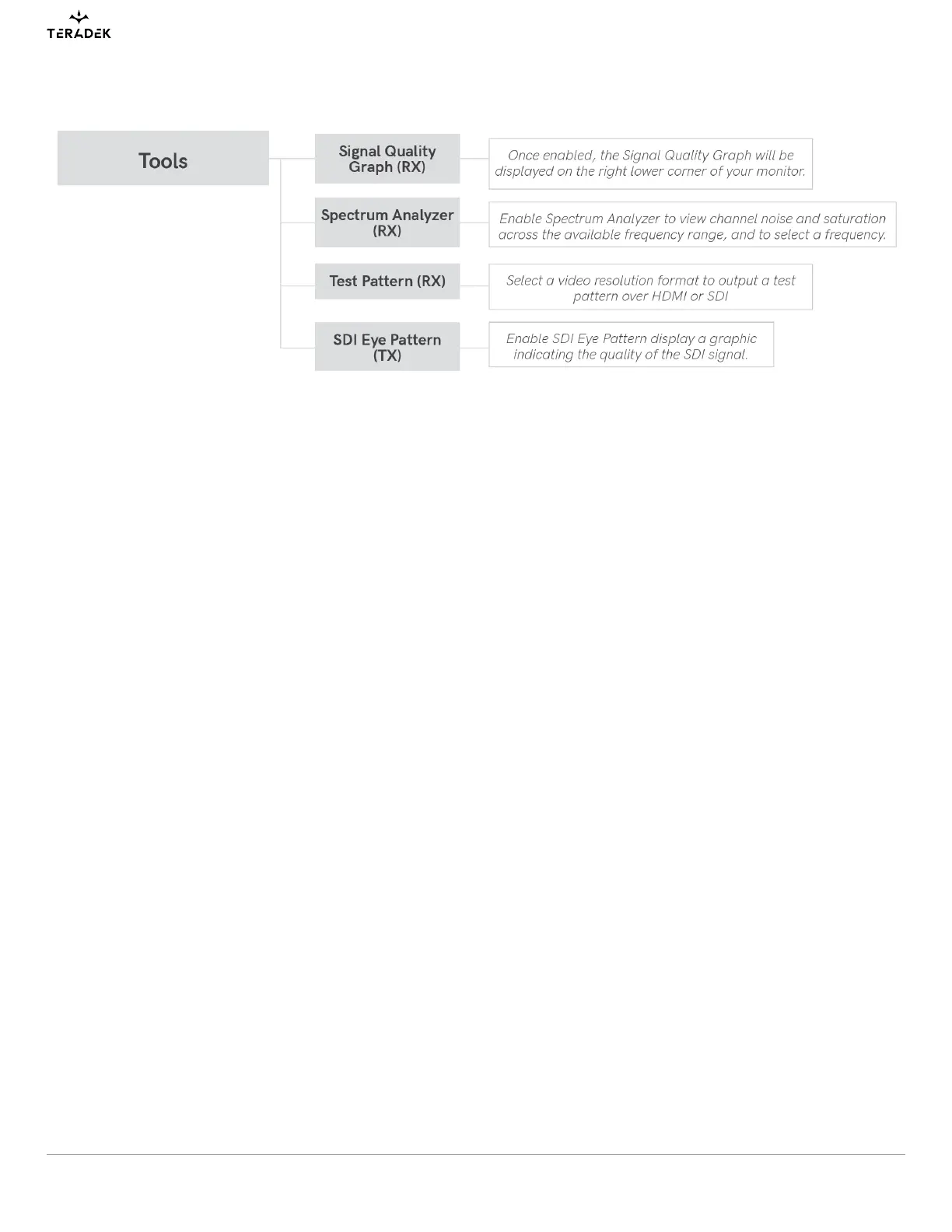

Tools
SDI EYE PATTERN (RANGER MKII TX ONLY)
The SDI Eye Pattern provides a graphical display of the SDI signal coming from the camera to the
transmitter, and is useful in determining the amount of interference present, or if the SDI cable is
damaged. The size of the "eye" displayed on the front panel indicates the quality of the SDI signal. The
bigger the size of the eye pattern is, the better the SDI signal.
SIGNAL QUALITY GRAPH (RX)
The Signal Quality Graph indicates the quality and reliability of the signal being received according to the
amount of interference that is present between the RX and TX. When enabled, the graph will be
displayed on the right lower corner of your monitor. Signal Quality is represented in percentages:
• Figures below 30% indicate poor signal quality
• Figures between 30% and 45% indicate fair signal quality
• Figures above 45% indicate good signal quality
SPECTRUM ANALYZER (RX)
The built-in Spectrum Analyzer provides a visual indication of channel noise and saturation across the
entire available frequency range. Move the Menu joystick left and right to select a frequency.
Teradek User Manual
Page 49Ranger Micro | Mk II
