6.7.3 Example of Configuring QVLAN Settings
Networking requirement
A hotel has the following wireless network coverage requirements:
− Guests are connected to VLAN 2 and can access only the internet. Staffs are connected
to VLAN 3 and can access only the LAN.
− Managers are connected to VLAN4 and can access both the LAN and the internet.
Networking assumption
− Set the SSID to internet for guests, oa for staffs, and VIP for managers for 2.4 GHz
network.
− The wireless networks with the aforementioned SSIDs are enabled and set on the AP.
Configuration procedure
Configure the AP
Step 1 Log in to the web UI of the AP and choose Wireless Setting > QVLAN Settings.
Step 2 Select the Enable check box.
Step 3 Modify the VLAN ID of the SSIDs at 2.4 GHz band. Set the VLAN of internet to 2, oa to 3,
and VIP to 4 respectively.
Step 4 Click Save.

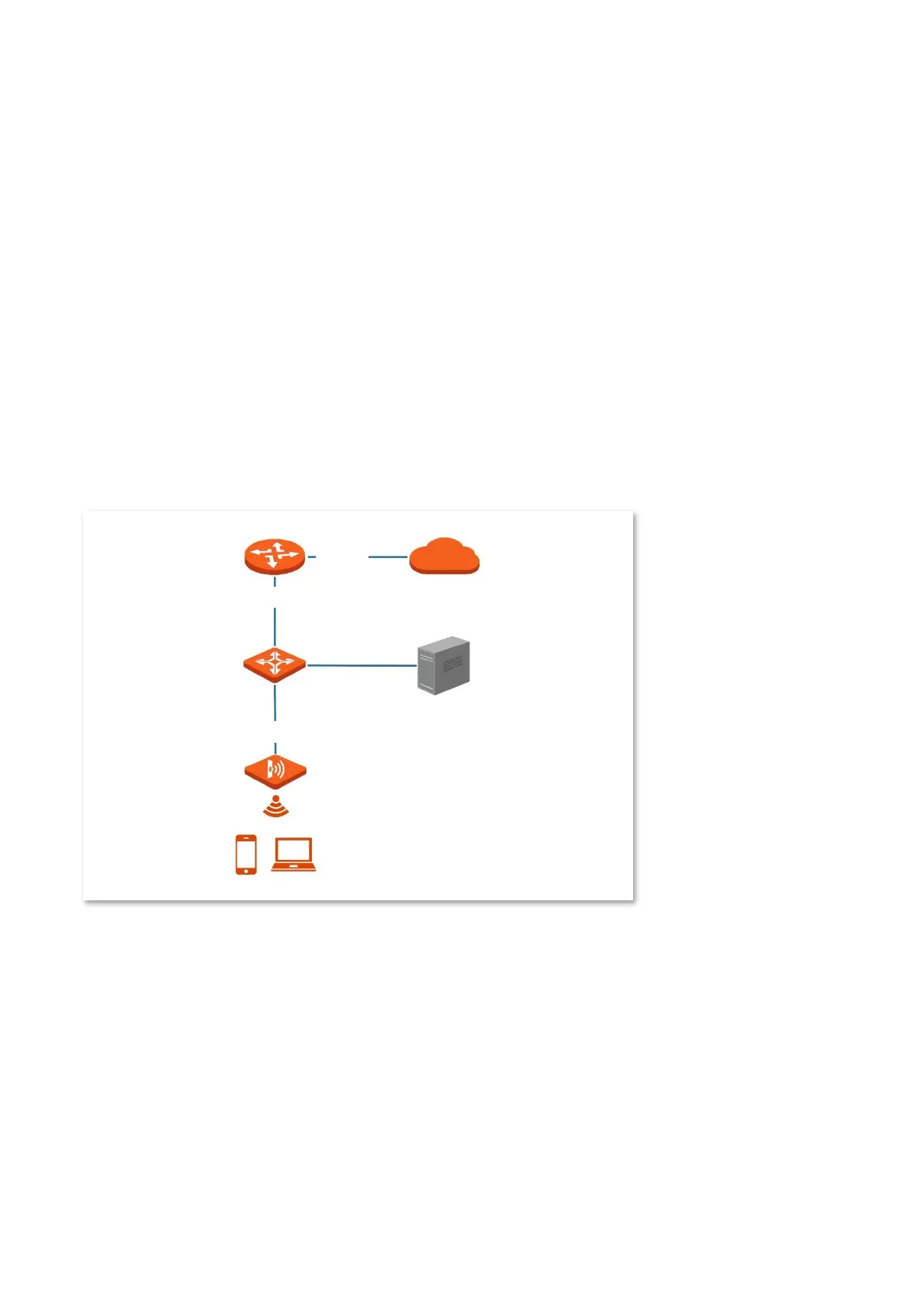

Internet
Router
PoE switch
AP
SSID for Guests: internet
VLAN 2
Internal server
SSID for Managers: VIP
VLAN 4
SSID for Staffs: oa
VLAN 3
LAN0
LAN
WAN
