〓〓〓〓〓 INSTALLATION 〓〓〓〓〓
— 12 —

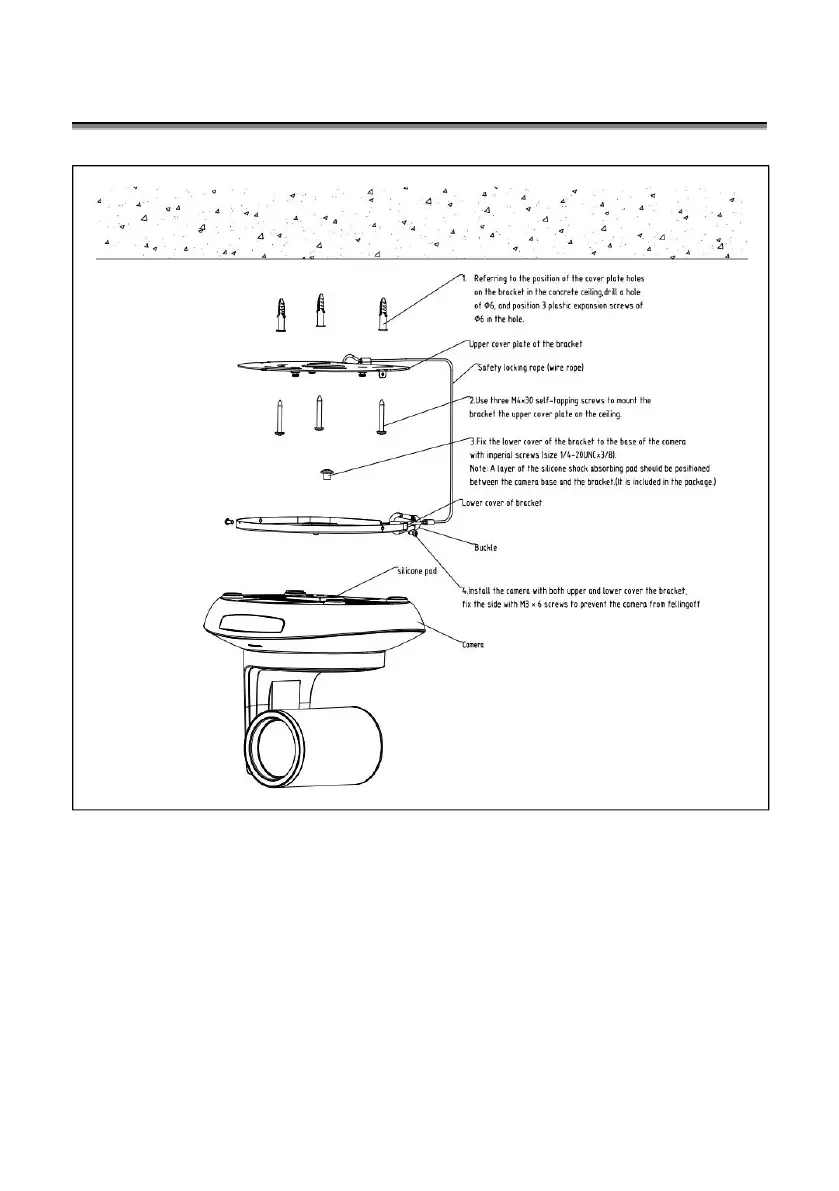

Ceiling-Mount Installation ：
1.Referring to the position of the cover plate holes on the bracket in the
concrete ceiling, drill a hole of φ6, and position 3 plastic expansion screws of φ6
in the hole.
2.Use three M4*30 self-tapping screws to mount the bracket the upper cover
plate on the ceiling.
3.Fix the lower cover of bracket to the base of the camera with imperial screws
（Size 1/4-20UNC*3/8）
Note：A layer of silicone shock-absorbing pad should be positioned between
the camera base and the bracket. (It is included in the package).
4.Istall the camera with both upper and lower cover of the bracket, fix the side
with M3*6 screws to prevent the camera from falling off.
