Default: Balanced (BAL) Operation (Out)
Switch position: out (not depressed) Balanced (Audiocom)
Switch position: in (depressed) Unbalanced (Clear-Com)
Cables
The numbers below correspond to the cable numbers in the connection drawings shown in Figure 3.
1. 1-channel intercom cable. Sold separately. Use Telex ME cables, below.
ME-25: 25’ (7.6 m) cable with Male and Female 3-pin XLR connectors.
ME-50: 50’ (15.2 m) cable with Male and Female 3-pin XLR connectors.
ME-100:100’ (30.4 m) cable with Male and Female 3-pin XLR connectors.
NOTE: When connecting from the MS-4002 to a TW-7W, keep cables as short as possible. Also, heavier gauge wire
is recommended.
2. 2-channel intercom cable. Sold separately. Use Telex ME cables, below.
ME-25/2: 25’ (7.6 m) cable with Male and Female 6-pin XLR connectors.
ME-50/2: 50’ (15.2 m) cable with Male and Female 6-pin XLR connectors.
ME-100/2: 100’ (30.4 m) cable with Male and Female 6-pin XLR connectors.
3. Y adapter cable. Sold separately. Use Telex CA-23-16.
3 ft. (0.91 m) speaker cable with RCA plugs. One supplied with each SPS2001, and SPK-2000.
4. 18” (457 mm) EXP IN/OUT cable, stereo mini-plug to stereo mini-plug. One (1) supplied with each EMS-4001.
5. Shielded patch cable, 9-pin Male D-sub to 9-pin Female D-sub. Customer local purchase. Available at most
electronic shops. Note, all pins must be connected straight through: do not use an RS232 computer cable.
6. Shielded patch cable, stereo miniplug to stereo miniplug. Customer local purchase. Available at most electronic
stores.
7. Shielded audio cable. Must have male 3-pin XLR connector at one (1) end for connection to the XP-USPG or SP-
4PGM program inputs. Pin-out for program inputs as follows:
Pin 1: common
Pin 2: + program input
Pin 3: - program input

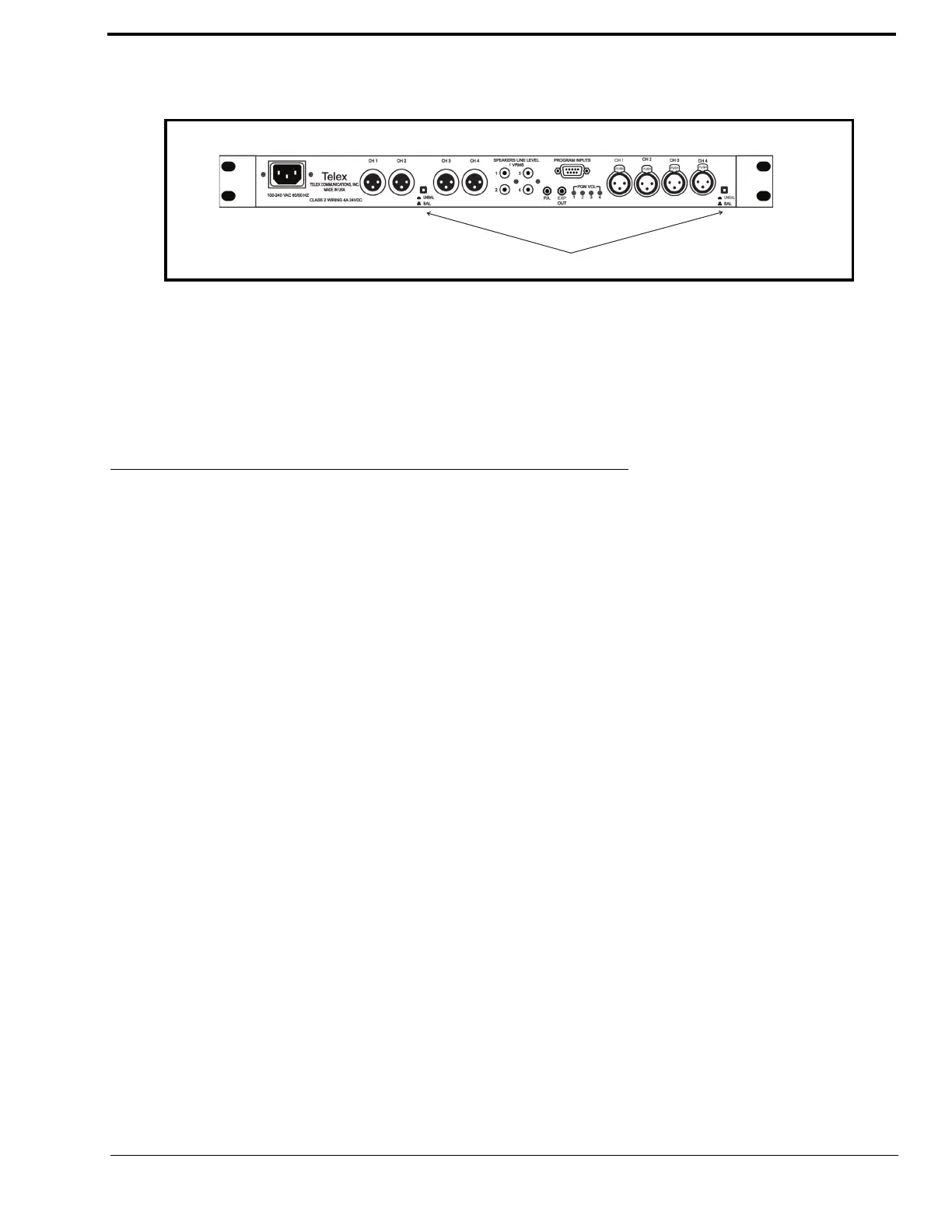

Figure 2. MS-4002 Back Panel Balanced and Unbalanced Operation Switches
BAL / UNBAL
buttons
