Installation

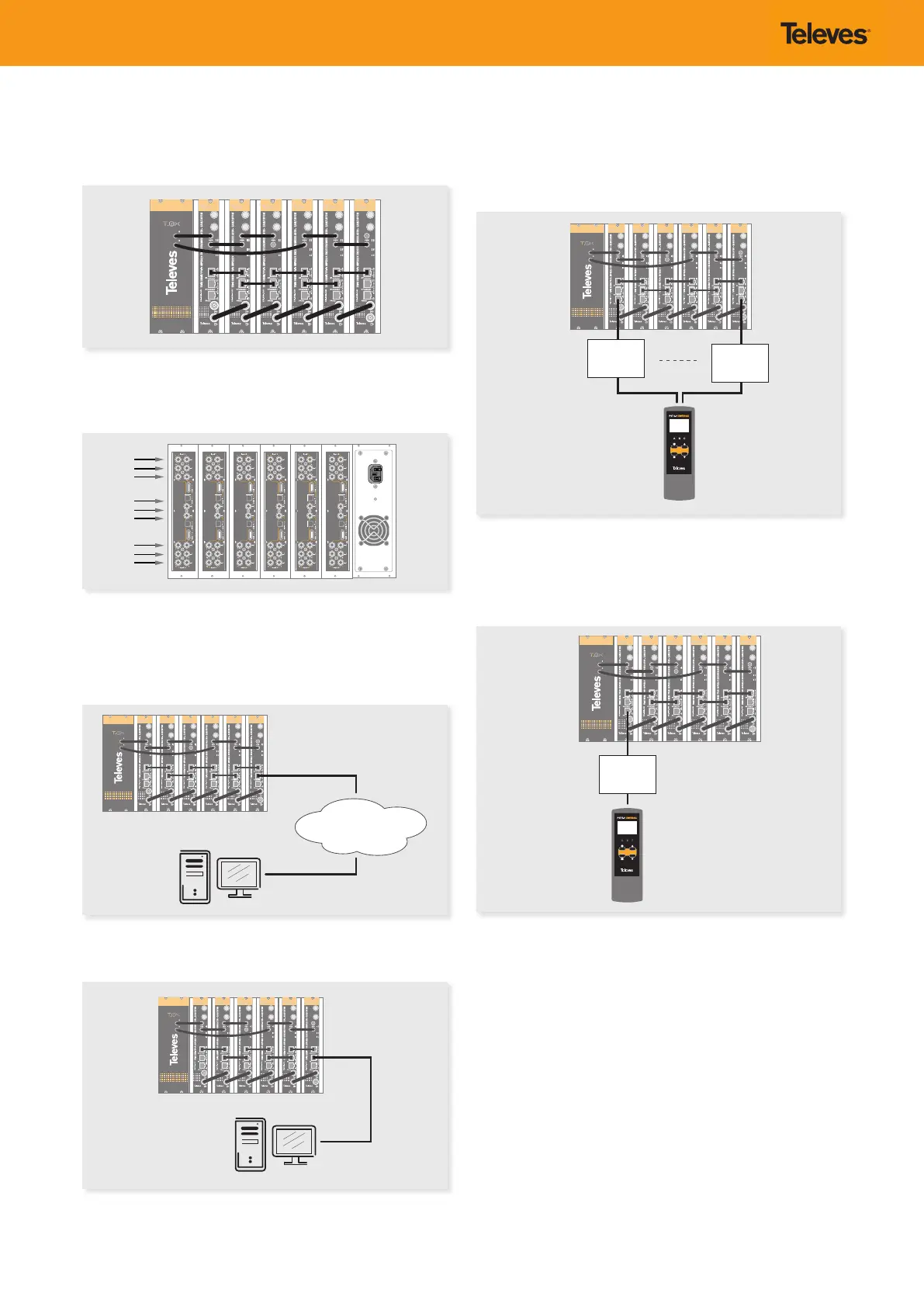

1. Install all units in the rack and connect them as shown in Figure 1.
Figure 1
2. The audio and video input signals connect to the back of the
modules.
Figure 2
3. If a network is available that provides IP addresses through DHCP,
connect the encoders to the network as shown in Figure 3. If such a
network is not available, then a computer will need to be connected
as shown in Figure 4.
Figure 3 - Rack with DHCP server.
4. Power on the units.
Figure 4 - Rack without DHCP server.
5. Connect the programmer to each unit and set a unique number in
the “# ID” eld according to the order of installation of the units in
the rack.
Figure 5 - Set a # number dierent for each unit.
6. Connect the programmer to a unit, usually the rst one, and read
the IP address.
Each unit can work as a master controller for the other units. All units
can be congured by connecting to only one.
Figure 6 - Read the IP address of one unit.
7. If a network was connected in Step 3 then proceed to step 8. If not,
set the address of you computer as follows:
IP value = 172.20.0.2
netmask = 255.0.0.0
gateway = 172.20.0.3
NOTE: The default factory conguration of the units has an IP address in
this range (it should be dierent for each unit). If a unit was ever
provided an address before, manually or through DHCP, this unique
address may no longer exist. Resetting to IP factory defaults, will
return the original unique private address though.
8. In your web browser, enter the IP address from Step 6 as the URL.
A login prompt will appear. By default the parameters are:
Login: encoder
Password: encoder
