CDC IP H/E Manager
12

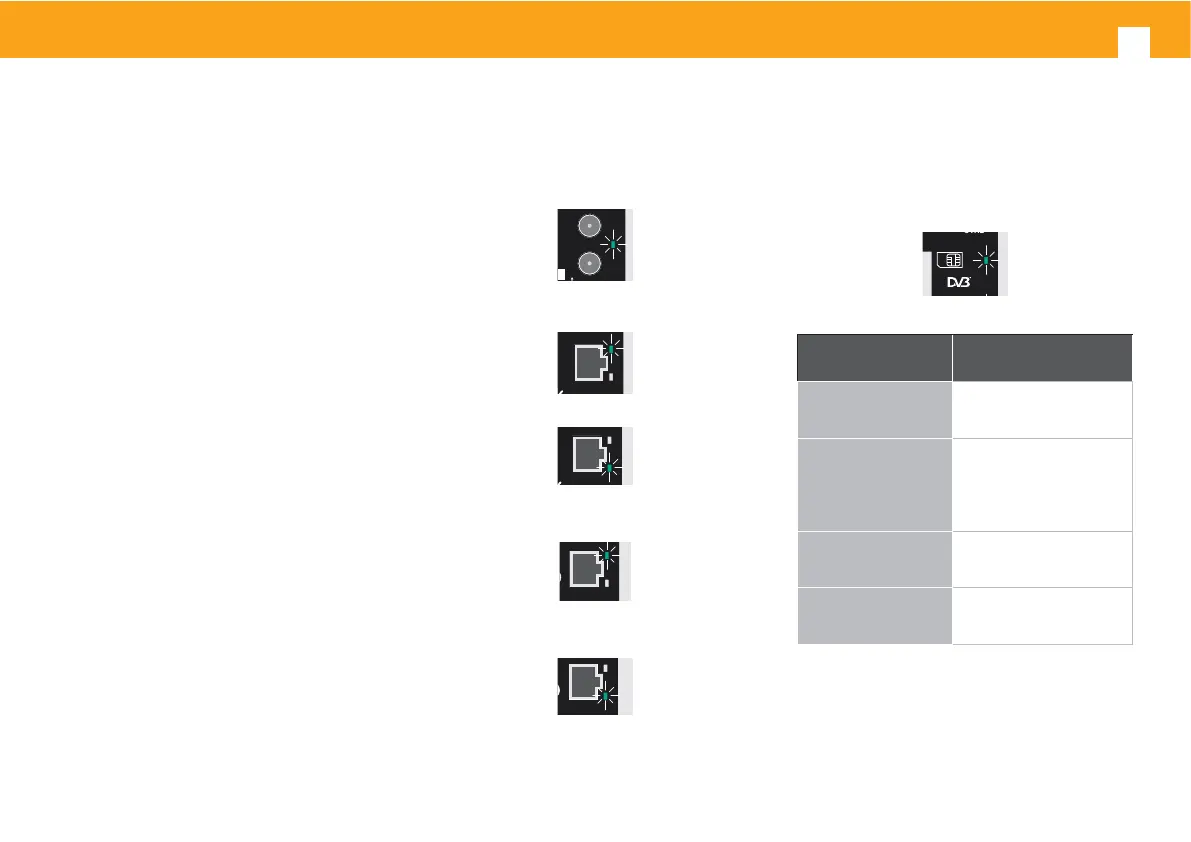

Indicators LEDs
LED indicator for 24 Vdc voltage. It is used to
indicate that the device is properly powered from
the power bus.
CDC
IP/GSM
PWR
Ethernet Rate. ON: 100Mbps; OFF: 10 Mbps.
ETHERNET
Ethernet link. It indicates activity when blinking.
ETHERNET
It monitors the 3V8 output of the DC-DC
converter. GSM/GPRS powering.
PRGM
ETHERNET
CPU activity. It will blink slowly in case of little
activity (and vice versa)..
PRGM
ETHERNET
Product description
1. Powering bus connector. LED status.
Power input of 24 Vdc single voltage from
which we obtained the rest of the internal
voltages.
External LED indicator for 24 Vdc input
detection.
2. BUS control connector. Jack input for the
RS485 BUS. Comunication via EIA-485[TIA-485]
standard.
3. ETHERNET. RJ-45 Ethernet connector. Input
Ethernet 10/100 Base-T standard.
4. Programmer/PC connector. Connector that
supports con guration using the LCD RCU
Ref. 7234 and can be used for debugging the
system using the Linux Session..
5. USB Host Type A connector. Host Port
Connector USB 2.0 Full Speed (12Mbps).
6. SIM Interface, 3 Volts (Ref 555901). Slot
for inserting the SIM card operator to
connect to the GSM/GPRS network.Supports
Phase 2 of standard GSM11.14-SIM 3 volts.
It allows hot SIM card changing. It can be
removed and reinserted into modem even
though it is active.
7. ANTENNA. Antenna GSM/GPRS’ connector
(Ref. 555901).
LED status of GSM/GPRS. Indication of the
availability of network. Reports on the availability
of the services to the GSM network, and the actual
state of the GSM call.
CTRL
SIM
LED status
Modem status
GSM/GPRS
Always ON
Active call
(incoming or established)
Rapid sequence of
blinking (1 sec.)
GSM network search.
Device is not registered.
Shutting down.
Slow sequence of
blinking (3 sec.)
Registered device in GSM
network.
Always OFF Device switched o
