(564301) format and converted to their respective
output channels using an agile up-converter.
A Common Interface slot is available. A conditional
access module (CAM) can be inserted to
descramble output services.
The multiplexer can demodulate up to three
DVBS or DVBS2 signals from one or two satellite
IF inputs. The user selects which services will
be transmodulated in each of the two available
outputs. Two transport stream are created, which
are then modulated in QAM (564401) or COFDM
To congure the multiplexer operating parameters
(input frequency, output channel, modulation
format and adaptation of services) the universal
programming unit (ref. 7234) or the TSuite software
can be used.
4 Elements’ description

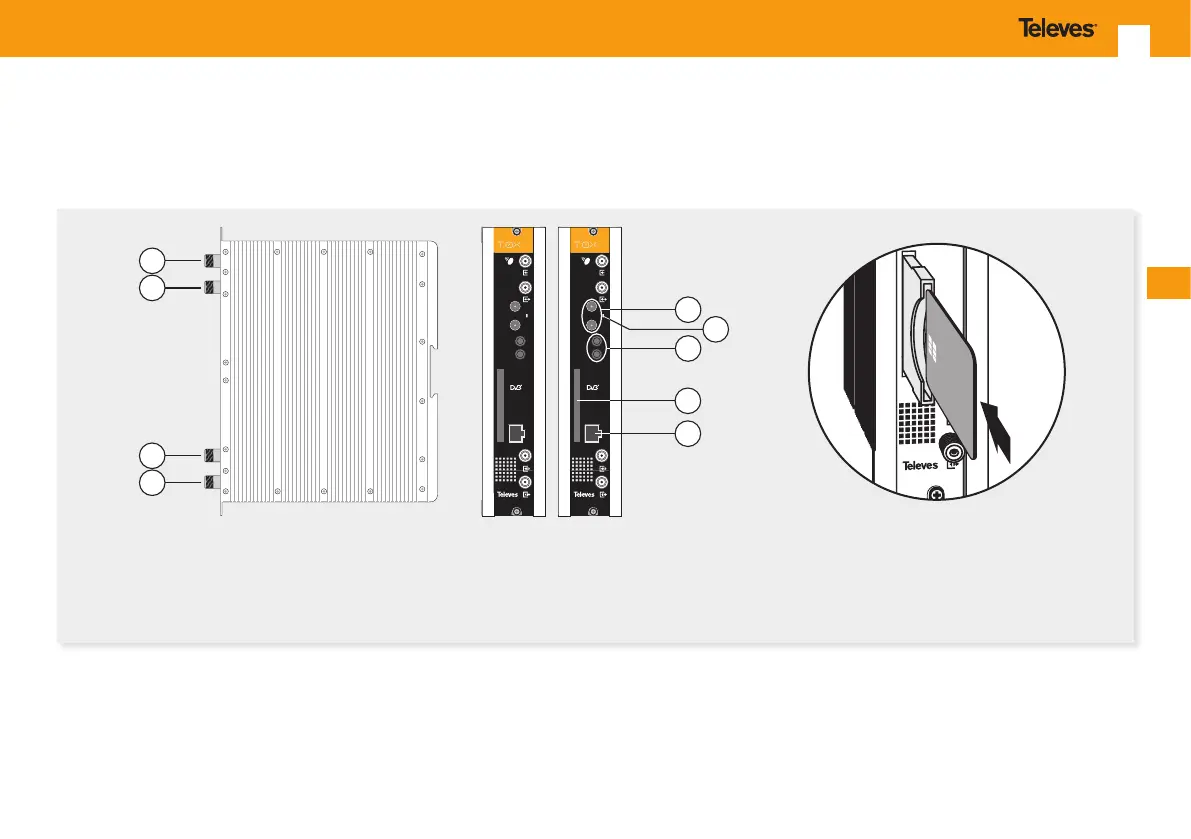

4.1 DVBS2 - QAM CI Twin (564401) / DVBS2 - COFDM CI Twin (564301)
1. SAT IF input
2. SAT IF input/output
3. RF input
4. RF output
5. Powering input
6. Status LED
Insert the smartcard completely
into the CAM slot before powering
modules. Card contacts looking left
and forwards when it is being inserted.
7. Control BUS connector
8. CAM slot
9. PC/Programmer socket
564401 564301
