EN
17
7. Satellite Test
This function checks that the input signal
corresponds to the selected satellite, and at the
same time checks the proper reception of the
selected transponders (from 1 to 4 transponders).
To do that, the meter performs all the
measurements on those transponders.
First of all the user must select the channel plan of
the satellite towards which the antenna is oriented.
Then the user must select the transponders on
which you want to carry out the measurements
(see Setup section of this function).
The information necessary to verify the satellite
is extracted from these channels, and the
measurements of the selected transponders are
displayed.
7.1. Main window

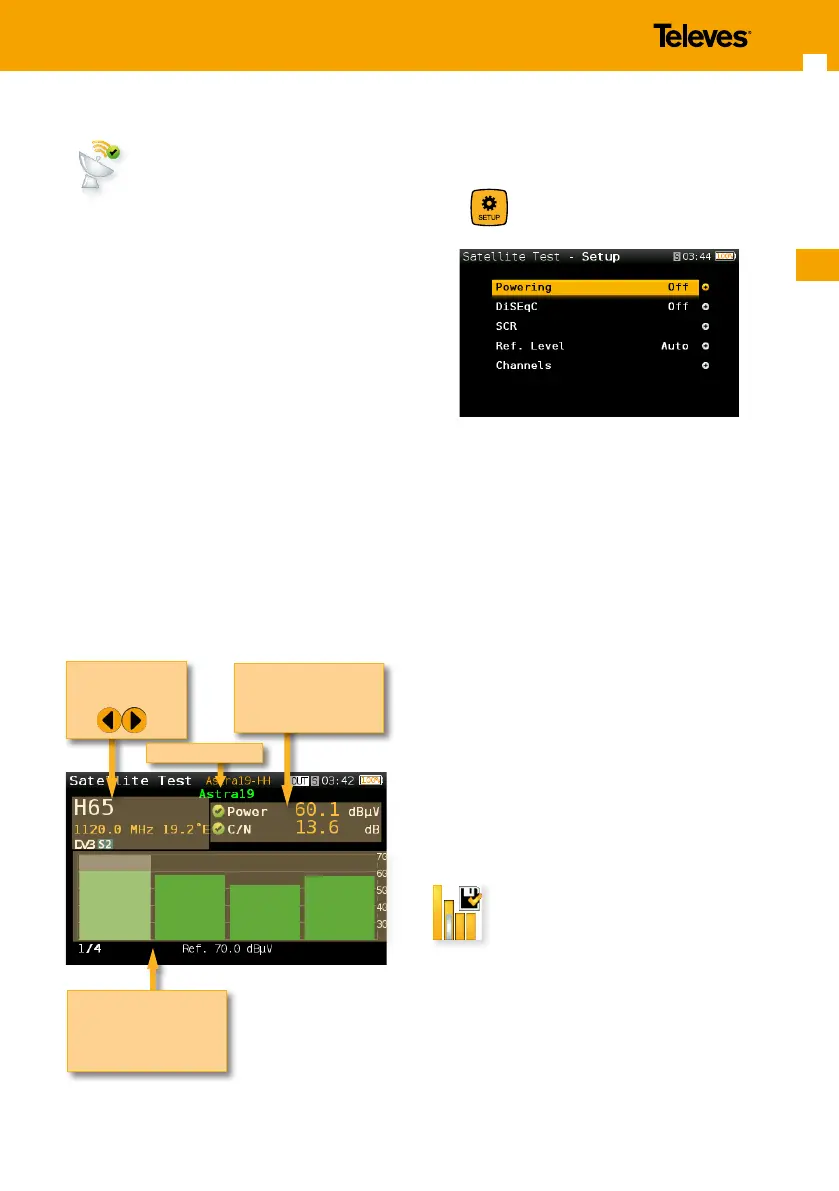

Below is a capture of a Satellite Test window with a
brief explanation of its features:
List of measurements
with pass/fail indicators
Press OK to see all the
measurements
Bar graph representing
the selected channels
Color according to
checkmarks
Selected channel
Change using
7.2. Setup
Press
to change the Satellite Test options.
- Powering: Select the powering of the LNB if
needed.
- DiSEqC: Select the SAT of the DiSEqC
command.
- SCR (only satellite band): Selects the SCR
parameters (multiswitch, standard and slots)
When a slot is enabled (for example slot 3,
freq. 1210MHz), the meter will tune into the
slot frequency (1210MHz) and will set the slot
with the meter parameters: frequency, band
(powering), and DiSEqC. In addition, a SCR
icon will be shown in the bar at the top (SCR3)
to indicate that the slot is enabled.
While the slot is enabled, all the setting
changes of the meter, will be applied to the
currently slot (SCR3).
- Ref. Level: Select the reference level of the
bar graph.
- Channels: Select the number of channels as
well as the channels from the channel plan.
8. Learning plan
Analyzes the input signal to the meter and
automatically detects all channels.
This feature automatically identies the channels
as either analog or digital and performs
measurements on each.
A bar graph is displayed with the height
representing the power for digital channels and the
level of the video carrier for the analog channels.
Satellite checked
