When a slot is enabled (for example slot 3,
freq. 1210MHz), the meter will tune into the
slot frequency (1210MHz) and will set the slot
with the meter parameters: frequency, band
(powering), and DiSEqC. In addition, a SCR
icon will be shown in the bar at the top (SCR3)
to indicate that the slot is enabled.
While the slot is enabled, all the setting
changes of the meter, will be applied to the
currently slot (SCR3).
- Aim antenna: Emits a modular audible
signal with frequency directly proportional
to signal level in the spectrum trace relative
to reference level. It is recommended to set
the reference level manually, as well as to
select the span to include a frequency range
wide enough.
The audible signal becomes continuous when
the signal level is close to the reference level.
Then it is necessary to increase the reference
level to get a more accurate adjustment.
This is a useful feature to point antennas
without having to look at the display
- Span: 5MHz, 10MHz 20MHz, 50MHz, 100MHz,
200MHz, 500MHz, Full.
Set the span of the spectrum. To easily change
the span, use the OK Button to decrease the
span and the Back Button to increase the span.
- Ref. Level: Select the reference level of the
spectrum graph
- dB/div: 5 dB/div, 10 dB/div
- Tuning: Channel, Frequency
- A/D: Auto, Analog, Digital.
- C/N: ON, OFF. Shows/Hides the C/N measure.
- Hold: ON/OFF. Shows/hides the maximum
graph
- Save datalog: Saves the current scan
measurements. You can see the datalogs
using the remote control application.
4. MPEG
The H30Crystal MPEG feature will show the image
of the selected service.
4.1. Main window

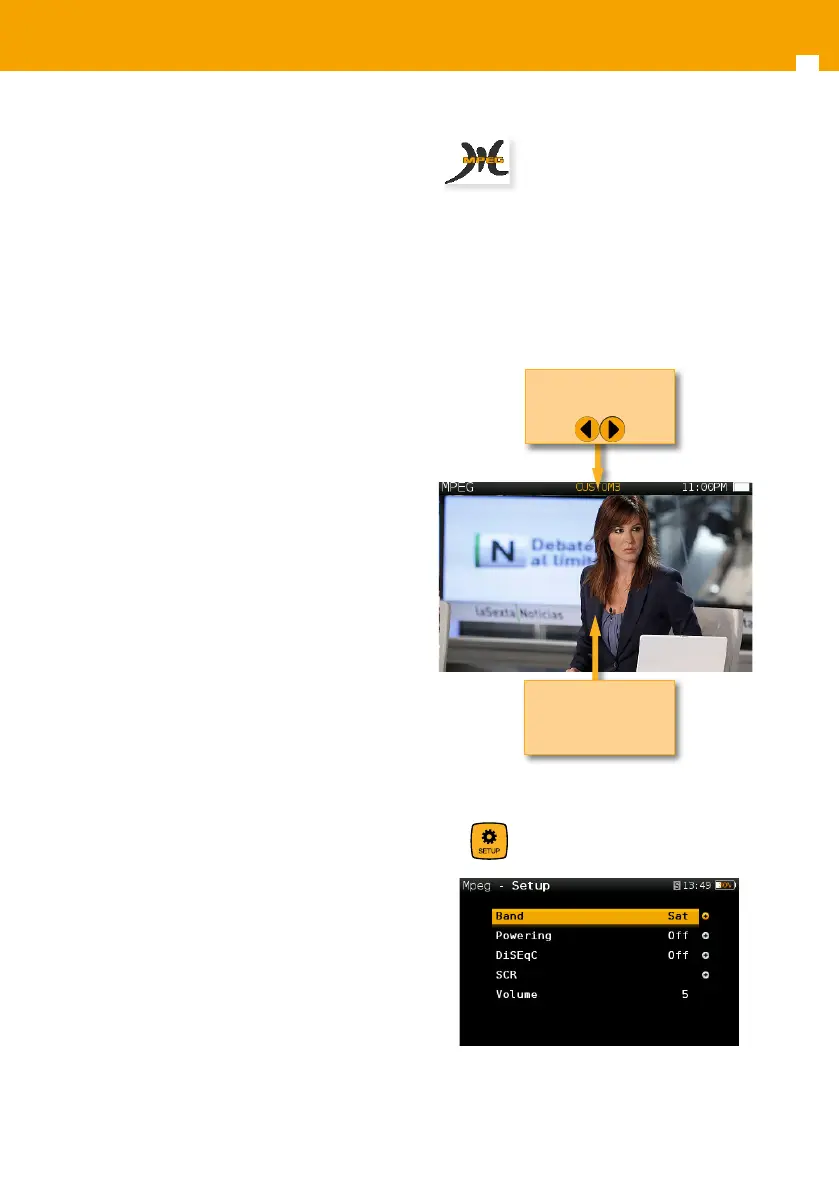

Below is a capture of a MPEG Info window with a
brief explanation of its features:
Selected channel
Change using
4.2. Setup
Press
to change the Channel Info options.
- Band: Terrestrial/Satellite
- Plan: Selects the channel plan
Press OK button to see
the services list
