Bar graph of main
measurement.
Color according to
checkmarks
Bar graph of optical
attenuation measures.
Color according to
checkmarks
Optical attenuation
measurements
in each wavelength
1.2. Setup
Press
to change the Channel Info options.
- Auto mode (both Selective and Non-
Selective models): On/O. Allows to operate
with the Auto mode of the Televes OPS3L, which
communicates to the H30Crystal the lambda it is
emitting.
- Optical wavelength (only Non-Selective
models): Allows to select the wavelength to be
measured.
- Calibrate: In Non-Selective models, this
function calibrates the selected wavelength.
In Selective models, each wavelength must be
calibrated separately
- Reset calibration (both Selective and Non-
Selective models): Resets the calibration
-Save datalog: Saves the current scan
measurements. You can see the datalogs using the
remote control application.
2. Channel Info
Analog and digital channels are very dierent in
terms of signal content and power distribution
and thus require the advanced SLM techniques
provided in the Televes H30Crystal.
In analog mode, video and audio levels, V/A and
Carrier to Noise (C/N) are measured.
In digital mode measurements depend on the
modulation
2.1. Main window

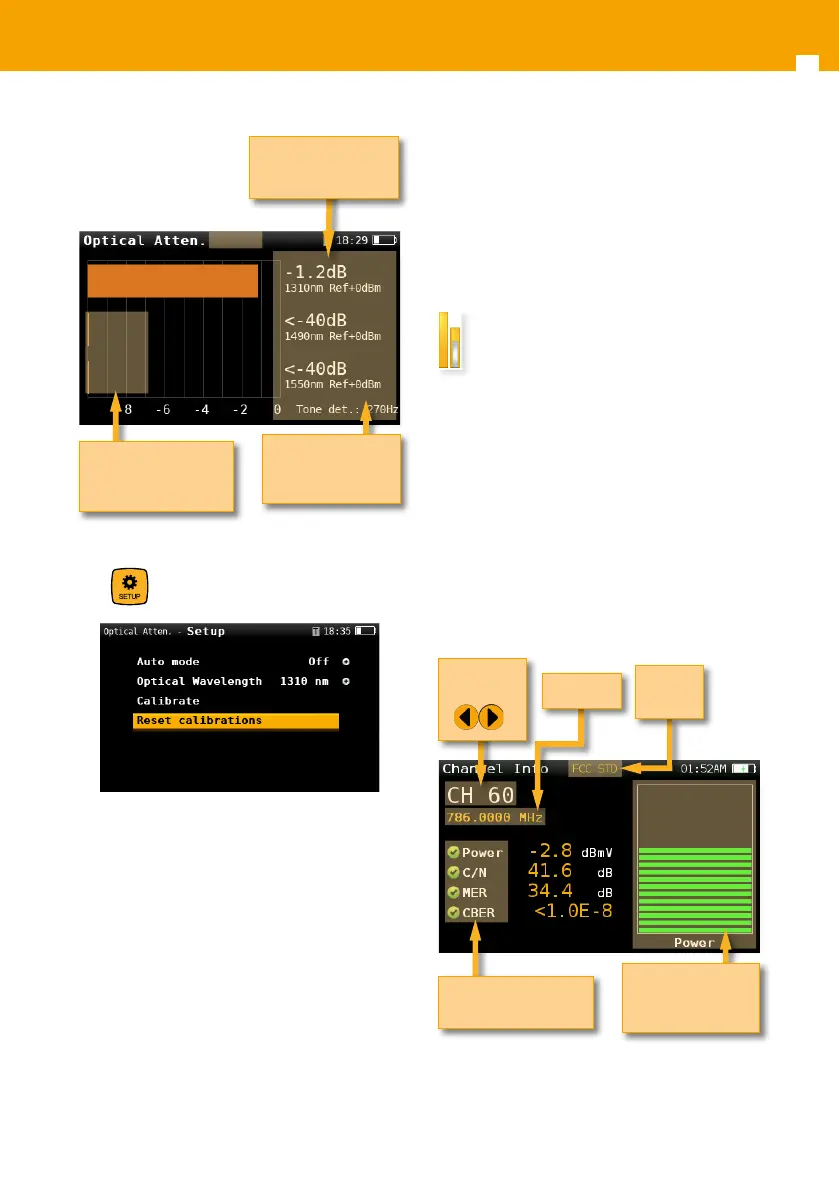

Below is a capture of a Channel Info window with a
brief explanation of its features.
Channel
plan
Frequency
Channel
Change using
Bar graph of main
measurement.
Color according to
checkmarks
List of measurements
with pass/fail indicators
