Waveform display settings
Displaying and removing a waveform
Use this procedure to turn on or of
f the display of each channel’s waveform.

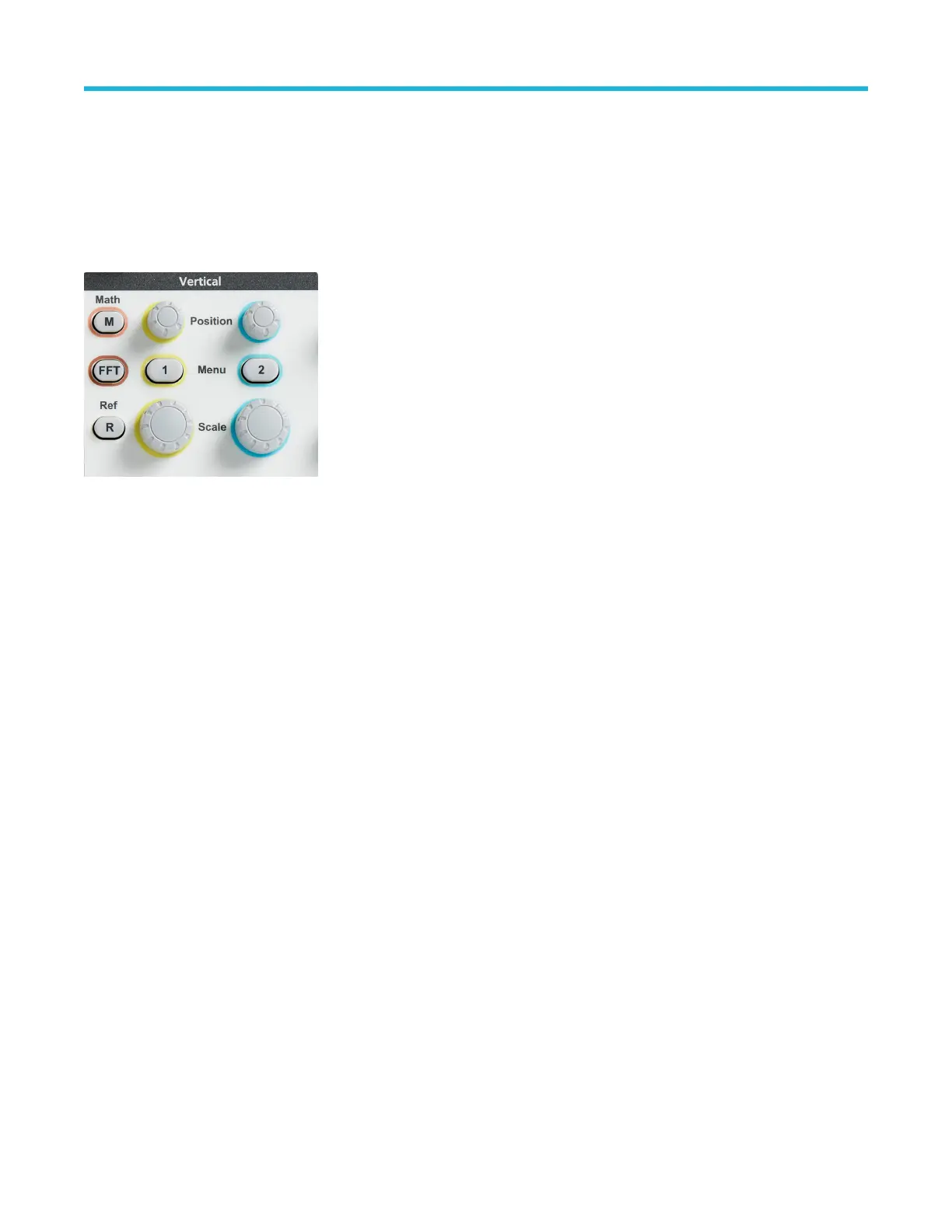

To add or remove a waveform from the display, push the corresponding front-panel channel Menu button.
If the selected channel is already active, pushing the channel Menu button removes the waveform.
If the channel is not active, pushing the channel Menu button selects that channel; another push removes the waveform from the screen.
If more than one waveform is displayed on the screen, selecting a channel brings the corresponding waveform on top of all other
waveforms.
Setting the waveform persistence
Persistence sets the time for how long the oscilloscope retains and displays the sampled waveform points on the screen. Using longer or
infinite persistence time helps to display infrequent or random signal anomalies such as glitches.
Normal persistence sets the oscilloscope to erase the current waveform data as it draws the newest acquisition. Changing the persistence
time (from 1 second to 10 seconds) sets how long to retain waveform data points in memory and on the screen until they are erased. The
older data points are erased first.
Infinite persistence sets the oscilloscope to retain and display all acquisition waveform data points without erasing the previous data.
Changing an acquisition setting, such as Horizontal Position or Scale, Autoset, and Single, resets the persistence period to start over
.
1. Push Acquire.
Waveform display settings
TBS1000C Series Oscilloscopes User Manual 76
