Setting channel deskew
Deskew compensates for dif
ferences in signal delays between different cable lengths or probe types. Use Deskew to adjust the signal
delay for individual channels so that all signals arrive at the oscilloscope at the same time. Deskewing channels lets you take accurate
time-related measurements between two or more channels, or when using a current probe with a voltage probe.
Select one probe as a reference signal and adjust the deskew values for the other channels so that they all align. For best results, use a
deskew fixture, such as the Tektronix 067-1686-xx.

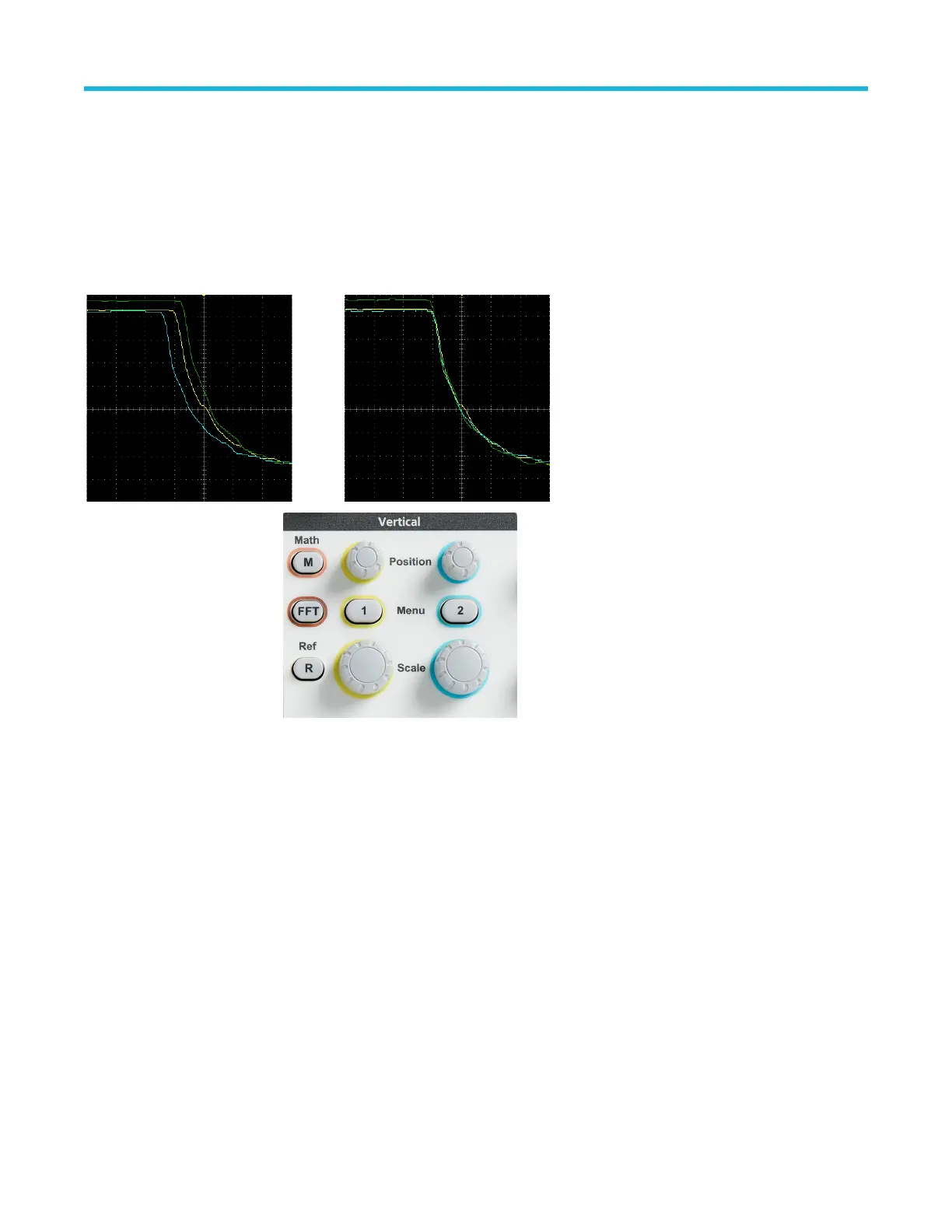

The following image shows before and after using deskew to set channel 1 and 2 deskew to minimize the delay with channel 1.
Push the Vertical Menu button
for the channel input that you
want to set.
Push the More side-menu
button.
Use the Multipurpose knob to
select and click
Deskew.
To set a specific deskew delay,
use the Multipurpose knob to
select and click 0s. Then use
the knob to change and set the
value. The waveform on the
screen moves as you adjust
the value.
To set the deskew to the
oscilloscope default (0 delay),
use the Multipurpose knob to
select and click Set to Default.
Deskew tips
• Deskew settings are stored in nonvolatile memory until changed manually for each channel.
Setting channel input parameters
TBS1000C Series Oscilloscopes User Manual 61
