4
A
B
C
D
E
F
G
H
I
J

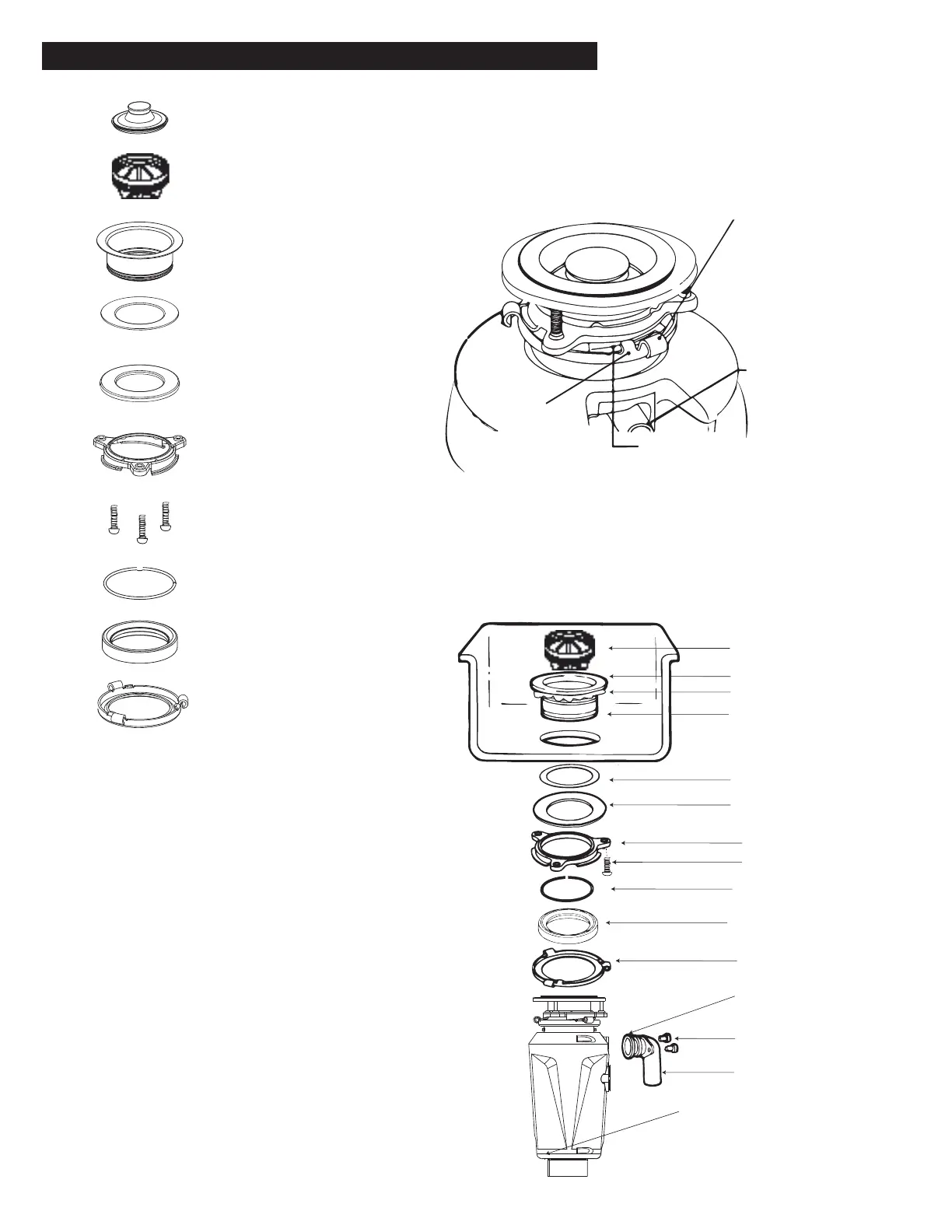

2. INSTALLATION OF MOUNTING ASSEMBLY
STOPPER
REMOVABLE SPLASH GUARD
SINK FLANGE
FIBER GASKET
SUPPORT FLANGE
UPPER MOUNT RING
MOUNT SCREWS
RETAINER RING
CUSHION RING*
LOWER MOUNT RING*
Sink
Removable Splash Guard
Groove
Fiber Gasket
Support Flange
Upper Mount Ring
Mounting Screws
Retainer Ring
Cushion Ring
Lower Mount Ring
Rubber Gasket
Elbow
Reset Button
Elbow Flange & Screw Set
Sink Flange
Plumber’s Putty
(not included)
READ CAREFULLY AND COMPLETELY BEFORE STARTING
NOTE: As the mounting assembly is properly assembled at
the factory, please pay close attention to the order of the
mounting system parts.
NOTE: Cushion Ring included between the Upper
Mount Ring and Lower Mounting Ring.
* Part not disengaged during disposer installation.
LOWER MOUNT RING
DISHWASHER INLET
MOUNT TAB
CUSHION RING
DISPOSER
