10
EN

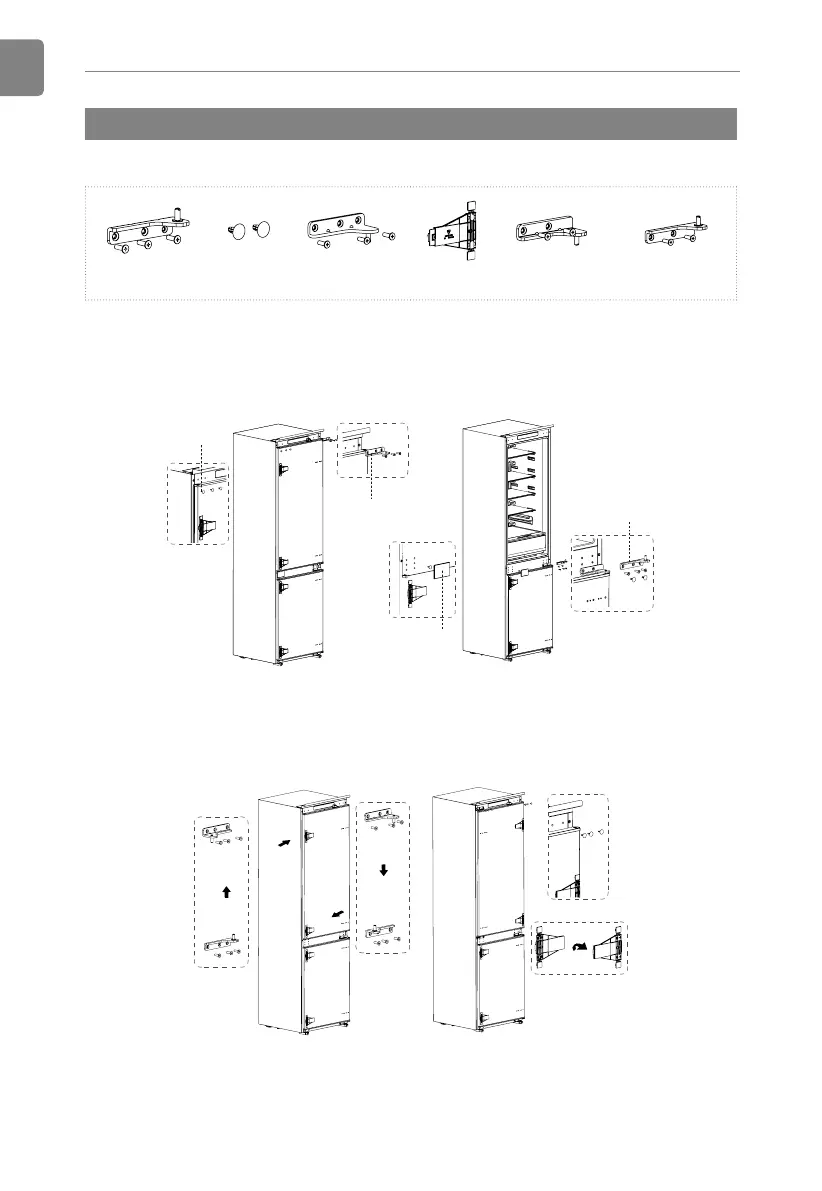

Install Instruction
Doors reversal
Parts already mounted on the refrigerator (as shipped):
R: Bottom hinge Hole cap R: Upper hinge block F: Upper hinge F: Bottom hinge
Steps:
1. Power off the refrigerator, and remove all objects from the door trays.
2. Remove the upper hinge and hole caps of refrigerator door.
3. Remove the refrigerator door, the bottom hinge and the hole cover.
R:Bottom hing
Hole cap
R:Upper hinge
Hole cap
4. Exchange the R:bottom hinge and R:upper hinge ,then install them according to below steps,
and install the top hole caps.
5. Remove the two fixed blocks of refrigerator door and rotate them for 180° and install them on
other side of refrigerator door.
6. Remove the the upper hinge of freezer door and plug pin.
7. Remove the freezer door, the bottom hinge and the hole caps.
Fixed block
Hole cap
R:Bottom hinge
R:Upper hinge
