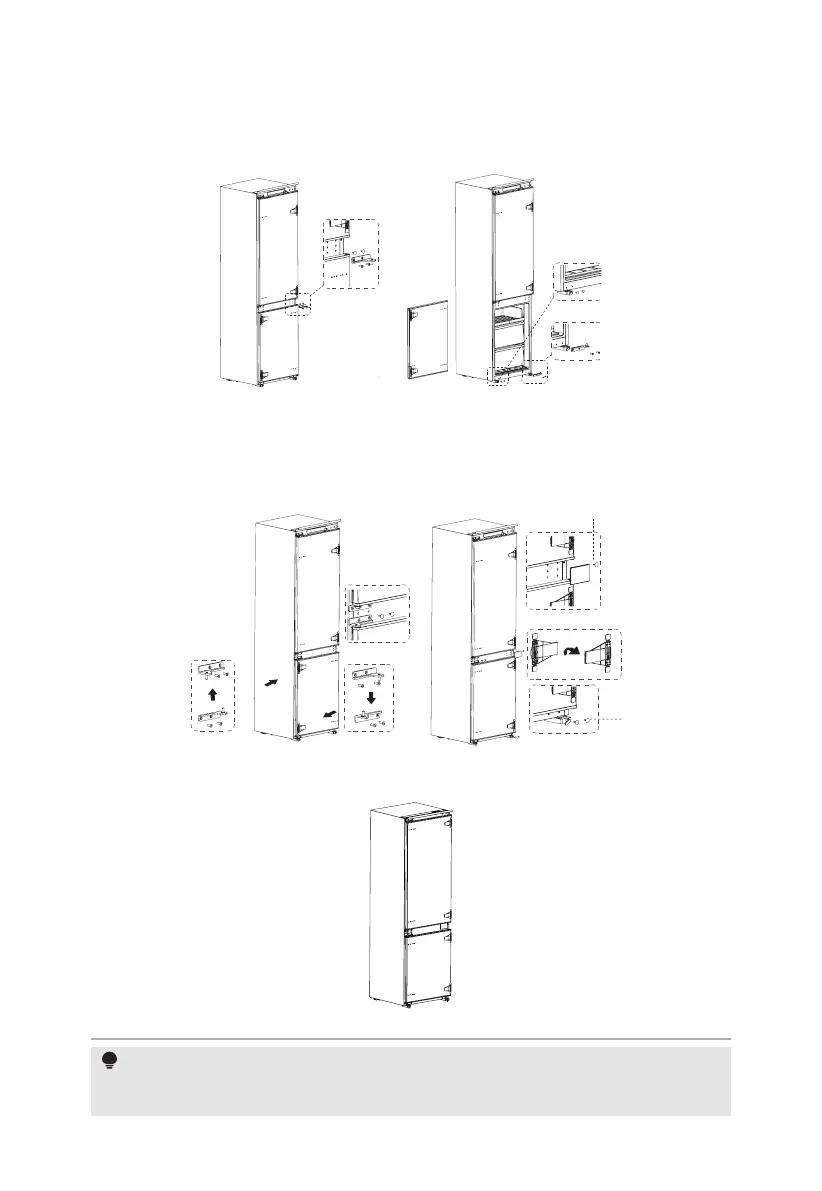

6. Remove the the upper hinge of freezer door and plug pin.
7. Remove the freezer door, the bottom hinge and the hole caps.
8. Exchange the F:bottom hinge and F:upper hinge ,then install them according to below steps, and install
the top hole cover and lower hole caps
9. Remove the two fixed blocks of freezer door and rotate them for 180° and install them on other side of
freezer door.
10. The picture after completion is shown as below.
ATTENTION
Differences: Due to technical changes and different models, some of the illustrations in this manual may differ from
your model.
F:Bottom hing
F:Upper hing
Fixed block
Hole cap
Hole cap
Upper hing
Hole cap
F:Bottom hinge
V.1
12
