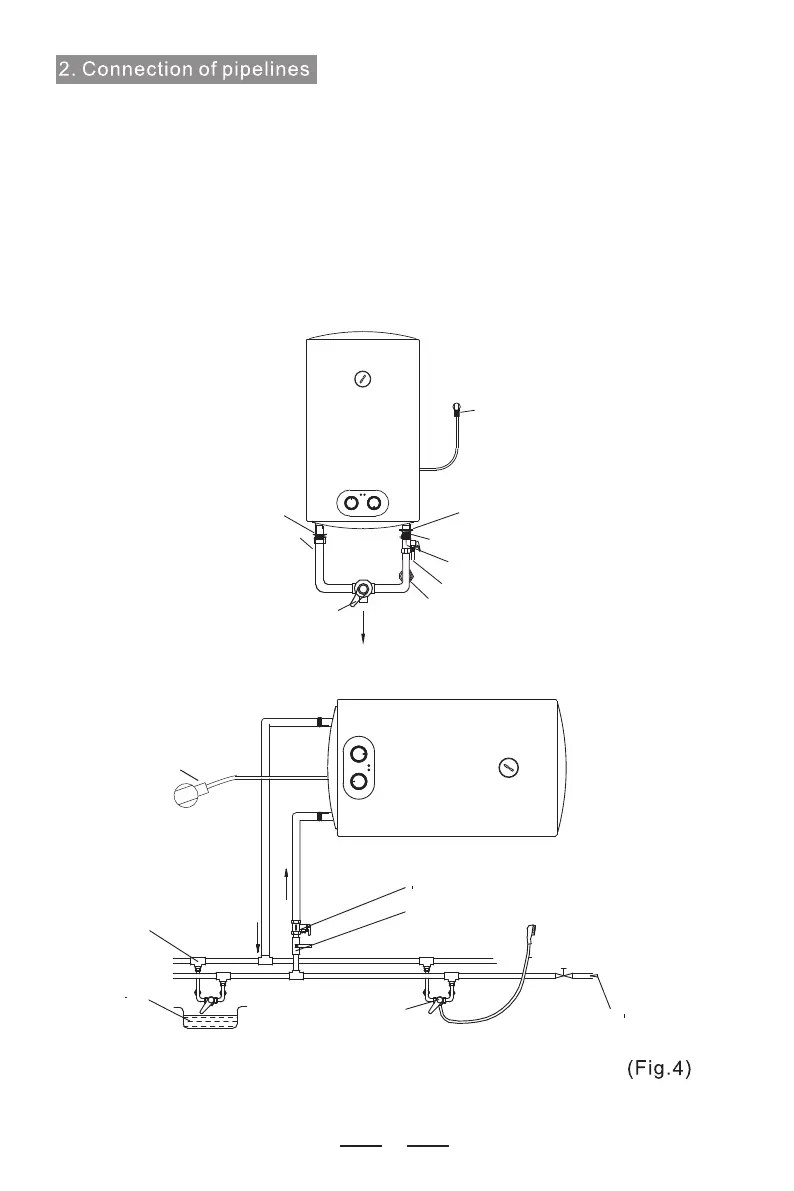

The dimension of each pipe part is G1/2.
Connection of one-way safety valve:install the one-way safety valve
attached with the machine at the water inlet of the main machine.(Pay
attention to keep the installed drainage flexible pipes of the safety valve
sloping downwards and connected with the atmosphere.)
In order to avoid leakage when connecting the pipelines, the rubber seal
gaskets provided with the machine must be added at the end of the threads
(see Fig.4).
1.
2.
3.
4
Power cord
Hot water outlet
Cold water inlet
Rubber seal gaskets
Pressure relief valve
Pressure release hole
Joint screw for cold water inlet
Adjusting handle for
mixing valve
Hot water
Rubber seal gaskets
Pressure relief valve
Water inlet valve
Running water pipeMixing valve
Water pool
Triple joint
Water inlet valve
Shower nozzle
Hot
water
outlet
Cold
water
inlet
Power cord
