21
WARNING
Hazardous voltages exist at the outputs and the load connections. To
protect personnel against accidental contact with hazardous voltages,
ensure that the load and its connections have no accessible live parts.
Ensure that the load wiring insulation rating is greater than or equal to
the maximum output voltage of the power supply.

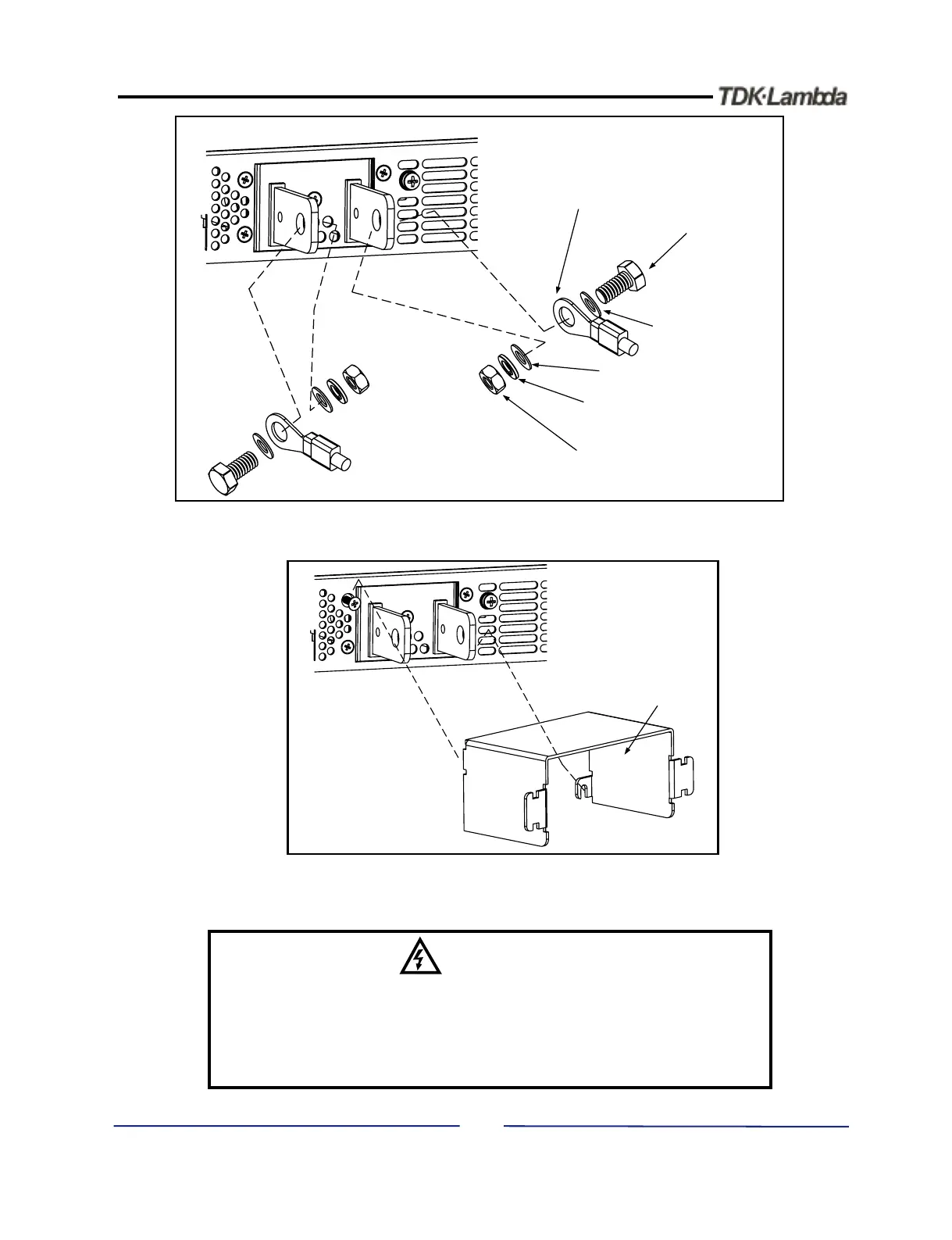

Fig. 3-5: Load wires connection , 6V to 60V models.
Fig. 3-6: Bus-bars shield mounting
80V to 600V Models
M8x15 screw (2 places)
Hex Nut (2 places)
Flat washer (2 places)
Spring washer (2 places)
Wire terminal lug (2 places)
Flat washer
(2 places)
Shield
Screws tightening torque: 104-118 Lb-inch.
