12
Operation keys

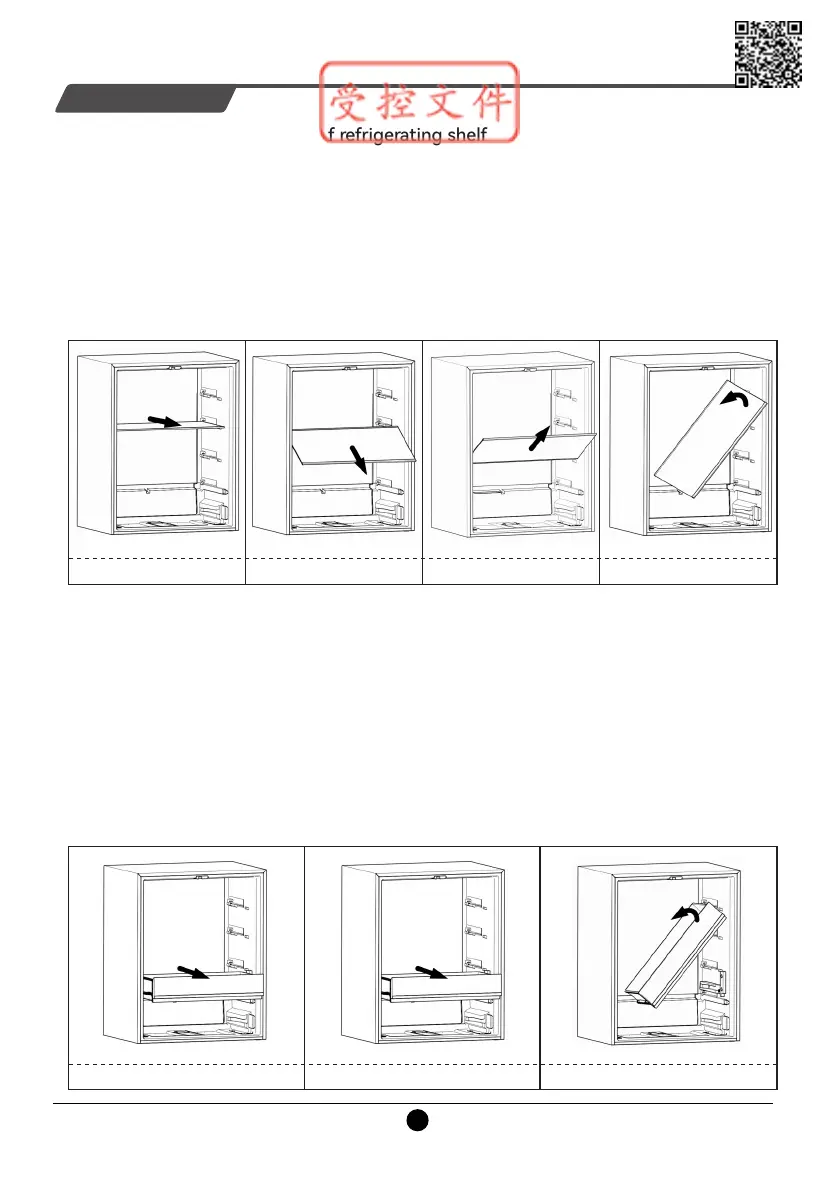

Disassembly and reinstallation of refrigerating shelf
Disassembly procedure
Step 1: Pull out the shelf horiz ontally following the arrow shown in Fig.1.
Step 2: Pull the top shelf down and forward following the arrow shown in Fig. 2, and the bottom shelf up and
forward following the arrow shown in Fig. 3.
Step 3: Vertically lift the right end of the shelf upwards, and appropriately turn it in the arrow shown in Fig.4 to
facilitate removal.
Reinstallation
Carry out shelf reinstallation in an order of Step 3-1.
Note: For shelf disassembly, open the door to the max. extent to facilitate shelf disassembly or prevent door
collision. (The picture is for reference only. For details of the specific interior configuration, the exact product may
prevail.)
Disassembly and reinstallation of fruit and vegetable box
Disassembly procedure
Step 1: First, pull the shelf out of the refrigerator compartment.
Step 2: Pull out the fruit and vegetable box horizontally following the arrow shown in Fig.1 until the fruit and
vegetable box is not supported by the guide rail.
Step 3: Pull out the fruit and vegetable box up and forward following the arrow shown in Fig. 2.
Step 4: Vertically lift the right end of the fruit and vegetable box and appropriately turn it in the arrow shown
in Fig.3 to facilitate removal.
Reinstallation
Carry out r einstallation of the fruit and vegetable box in an order of Step 4-2.
Note: For disassembly of the fruit and vegetable box , open the door to the max. extent to facilitate its
disassembly or prevent door collision. (The picture is for reference only. For details of the specific interior
configuration, the exact product may prevail.)
Fig.1 Fig.2 Fig.3 Fig.4
Fig.1 Fig.2 Fig.3
