TCL Air Conditioner Service Manual
40
B
Unfix screws btw the
top cover with front
panel, left and right
plate, then you can
take the top cover
out.

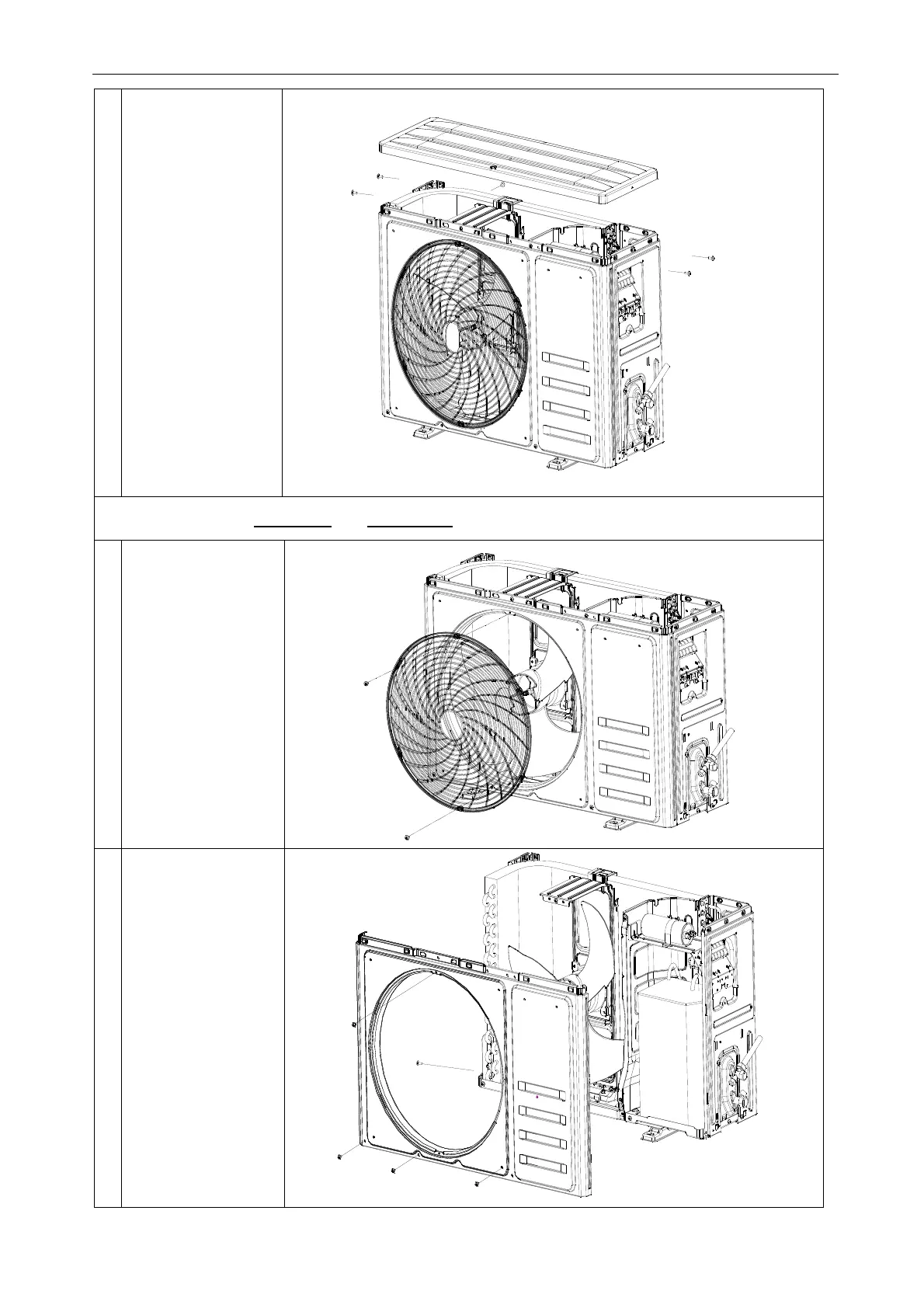

2Disassemble the Fan Guard and Front Panel
A
1). Unfix screw btw
fan guard and front
panel, and take the
fan guard out.
B
2). Unfix screws btw
front panel and fan
motor supporter,
ODU mid separate
plate & base plate,
uplift front panel you
can take it out from
unit.
