paGe Head

HW & installation

frOnT and rear

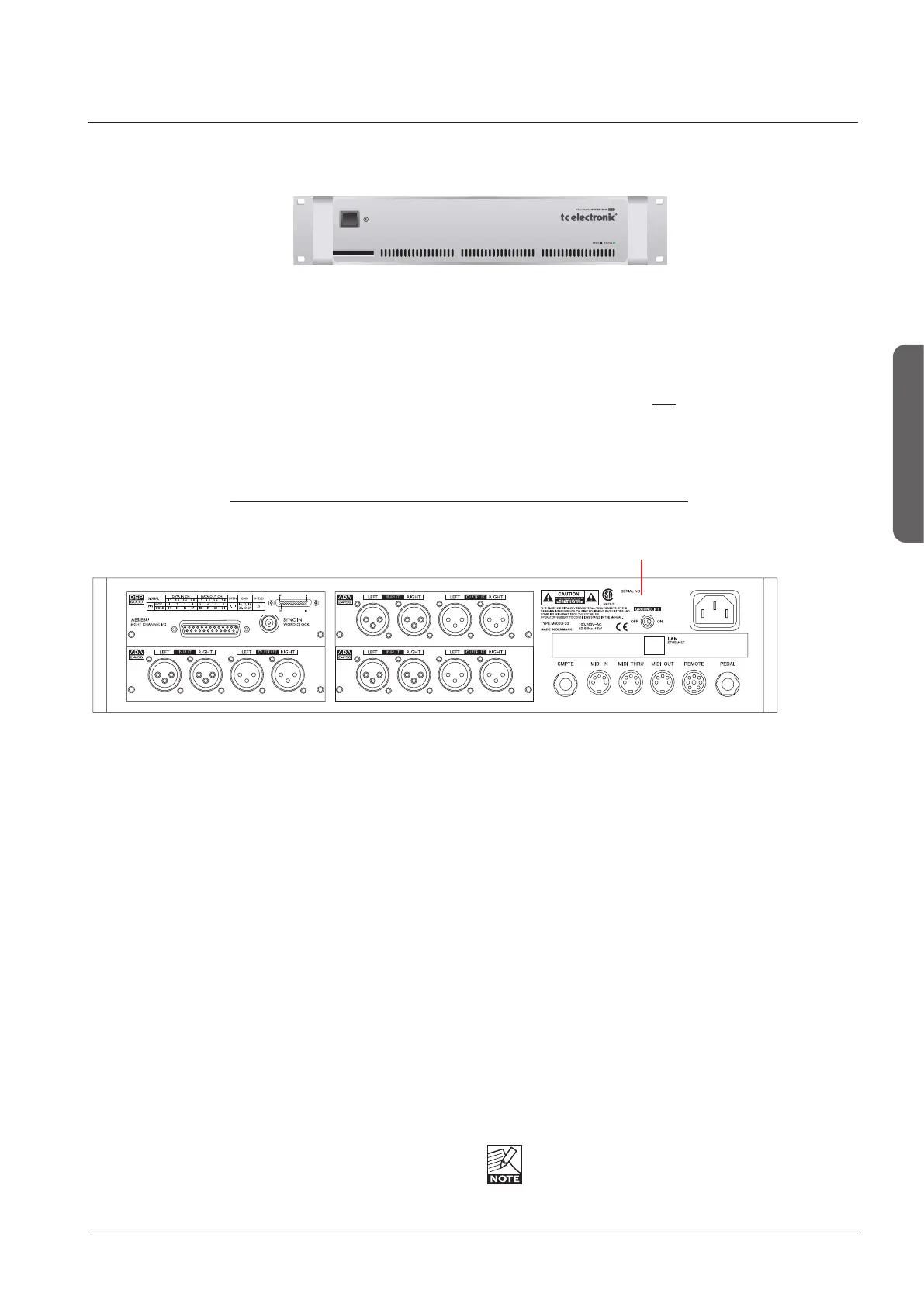

System 6000 Mainframe Front

Power Key

Switches power On/Off.

PCMCIA slot

For handling of preset banks.

Power On LED

Duringstart-upthisLEDisred.Whentheunitisreadyfor

use,theLEDwillturngreen.

System 6000 Mainframe Rear

I/O Slot - A

I/O Slot - B (AES-8)

DSP Slot

I/O Slot - C

I/O Slots A, B and C

These slots are used for the optional I/O cards ADA 24/96

and AES-8. Slots must be filled consecutively in alphabetic

order.

The System 6000 DSP card fits in the DSP slot only. When

I/O cards are mounted, dip switches on the cards must be

set accordingly. Please see the following page.

AnAES-8cardshouldbeinstalledin“I/OSlotB(AES-8)”

only. If your mainframe rear panel carries a label saying

BUSupdatedyoucaninstalltheAES-8cardyourself

following the instructions on the next of this chapter.

DSP Slot

The System 6000 DSP card is placed in the DSP Slot.

Power In

100-230VAC.50/60Hz-auto-select.

LAN/Ethernet

Connection for external control devices e.g. the TC Icon.

The type is 32 bit PCI Ethernet interface fully compliant

with IEE 802.3u 10/100 Mbps CSMA/CD standards.

Theconnectortypeisa100Base-TRJ-45(CN13)

SMPTE

1/4”connectionforSMPTEsync.Input.

Ground Lift

Use this standard chassis ground lift if you encounter

problems with hum.

MIDI In, Thru and Out

5 pin DIN connectors.

Remote

This connection is for service and test purposes only.

Pedal

General Purpose Input. Connect a TC Master Fader or a

tip to ground switch. Applications vary depending on the

specific algorithm.

Rack-mounting Advice

• TheM6000shouldnotbeplacedinanenvironmentwith

a temperature exceeding 50 degrees Celsius.

• Donotcovertheventilationopeningsonthesidesofthe

frame.

The cooling fan is activated according to the

temperature inside.

Reset (countersunk)

Press and hold this button during boot to reset the frames

IP address to the default setting: 192.168.1.xx*, - where

“xx”isthelasttwodigitsintheframesserialnumber.

*Note-iftheframesserialnumberendson“00”,theIP

address will be: 192.168.1.100,as“00”isnotavalidIP

number in all networks.

Serial Number
