TASCAM FR-AV4 V1.00 69
4. Connections

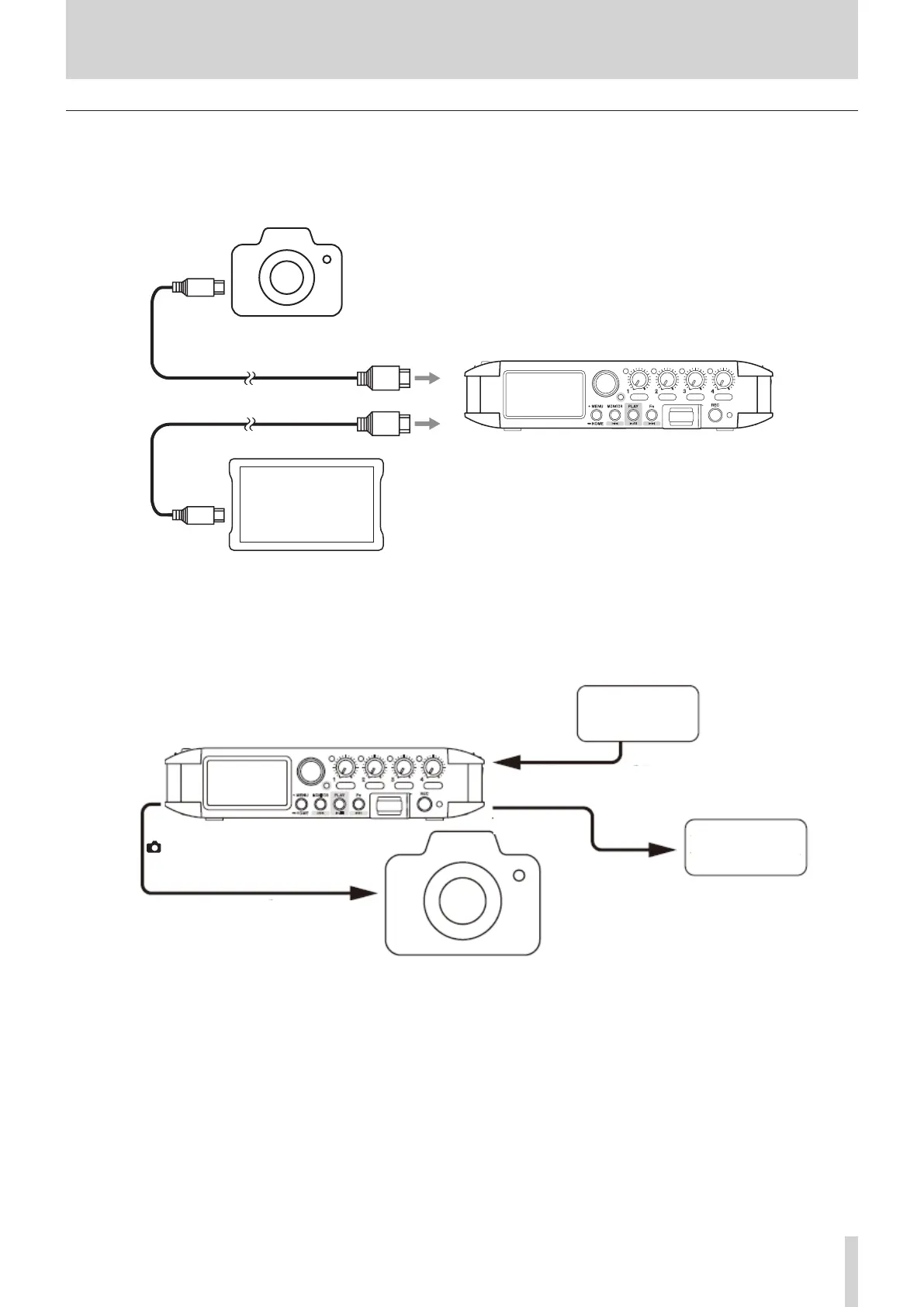

Timecode connection examples
1. Using HDMI® timecode
HDMI® OUT port
HDMI® IN port
Digital SLR camera
Monitor/recorder
Timecode e
d Timecode
2. Using a timecode generator
Input timecode from an external timecode generator through the TC IN jack. By using jam sync, devices that are
synchronized to timecode can also be added.
TC OUT jack
/TC/LINE OUT jack
TC IN jack
3.5mm cables
(TS or TRS)
Separate timecode generator or
timecode receiver that receives LTC
Camera or other device that receives mic level
3.5mm TRS cable
(Timecode on L channel, audio on
R channel)
Timecode
generator
Timecode
generator
