64 TASCAM FR-AV4 V1.00
4. Connections
4-2.
Cameras

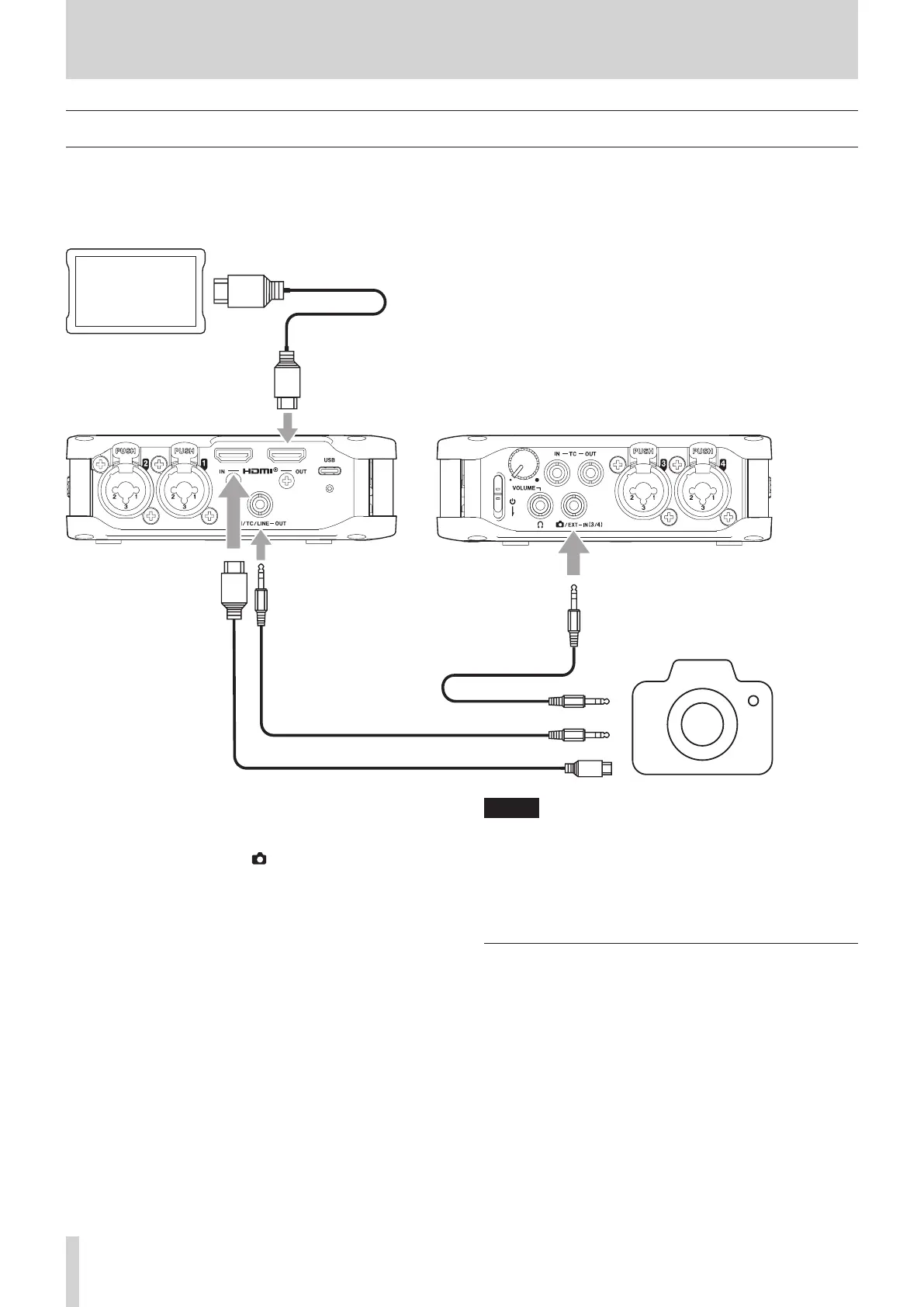

When recording video with a camera, the same sound can be recorded simultaneously by the camera and this
unit. In order to output sound to a camera, connect it with this device as shown below.
HDMI® output port
Digital SLR camera
HDMI® monitor/recorder
HDMI® input port
Audio output jack
External mic input jack
Left side panel Right side panel
Recording audio from this unit on a camera
Use a commercially-available 3.5mm stereo mini
plug cable to connect the /TC/LINE OUT jack on
the left side of this unit with the external mic input
on the camera.
Connecting with a camera using HDMI®
This unit can be synchronized with a camera's clock
by connecting the camera's HDMI® output to this
unit's HDMI® IN port. Moreover, HDMI® timecode can
be received from a camera.
Connecting HDMI® monitors/recorders
Video input from the camera by HDMI® can have
audio recorded by this unit added to it and then
be output from the HDMI® OUT port. The received
HDMI® timecode can also be output.
NOTE
o Refer to the camera’s operation manual to identify
this connector on the camera.
o To mount a camera on this unit, use the camera
attachment screw on the top of the unit.
Setting output for camera use
The line output level can be attenuated up to 80 dB
for camera use.
See “Setting output for camera use” on page 106
for details.
