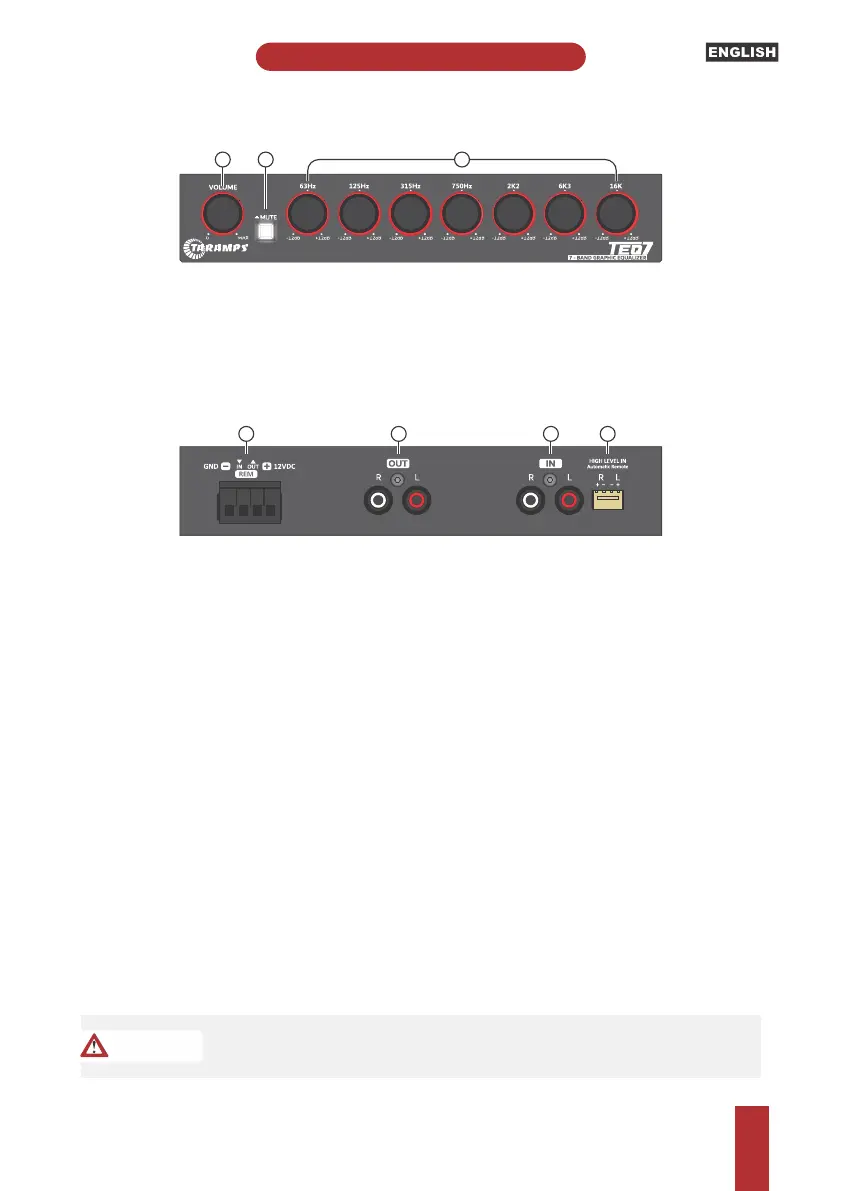

Front panel

Rear panel

1234

12

3

3- Gain controls: Adjusts the gain of each frequency from -12dB to +12dB.

2- Mute: Turns off the audio signal at the output.

1- Volume: Controls the output signal level.

1- Power Connector: The recommended wiring gauge is 0.75mm².

Note: The system was designed for use in virtually all head units on the market. However, some of

them may not get the trigger effect due to the type of audio output circuit. In that case, use

REMOTE wire insfead.

4- High Level IN: Input for high level / low impedance signals (from the speaker output of the

Head Unit), with automatic remote activation system compatible with original multimedia

with diagnosis (A.S.S. Advanced Speaker Simulation OEM HU). Don’t need the remote signal

while using this input.

12VDC - Positive Power Supply (Connect to positive pole of 12V battery).

GND - Power Negative (Connect to battery negative pole).

IN - Remote input (Connect the remote output of the CD/DVD Player).

2- OUT: Audio output for amplifiers or accessories.

3- IN: Input for low level / high impedance (RCA) signals.

OUT - Remote output (Connect to the remote input of the accessory or amplifier).

Functions and Controls

Check power polarity and recommended gauge.

It’s recommended to install a 1 Ampere fuse on the positive supply terminal.

CAUTION
