Lifting formwork mode
Wall mounting mode
Installation base
material
Bracket
Screw
Screen
Wall installation
Screen
Bracket
Screw
How to install the Sylvox TV, please scan the
QR code as below to get more information.

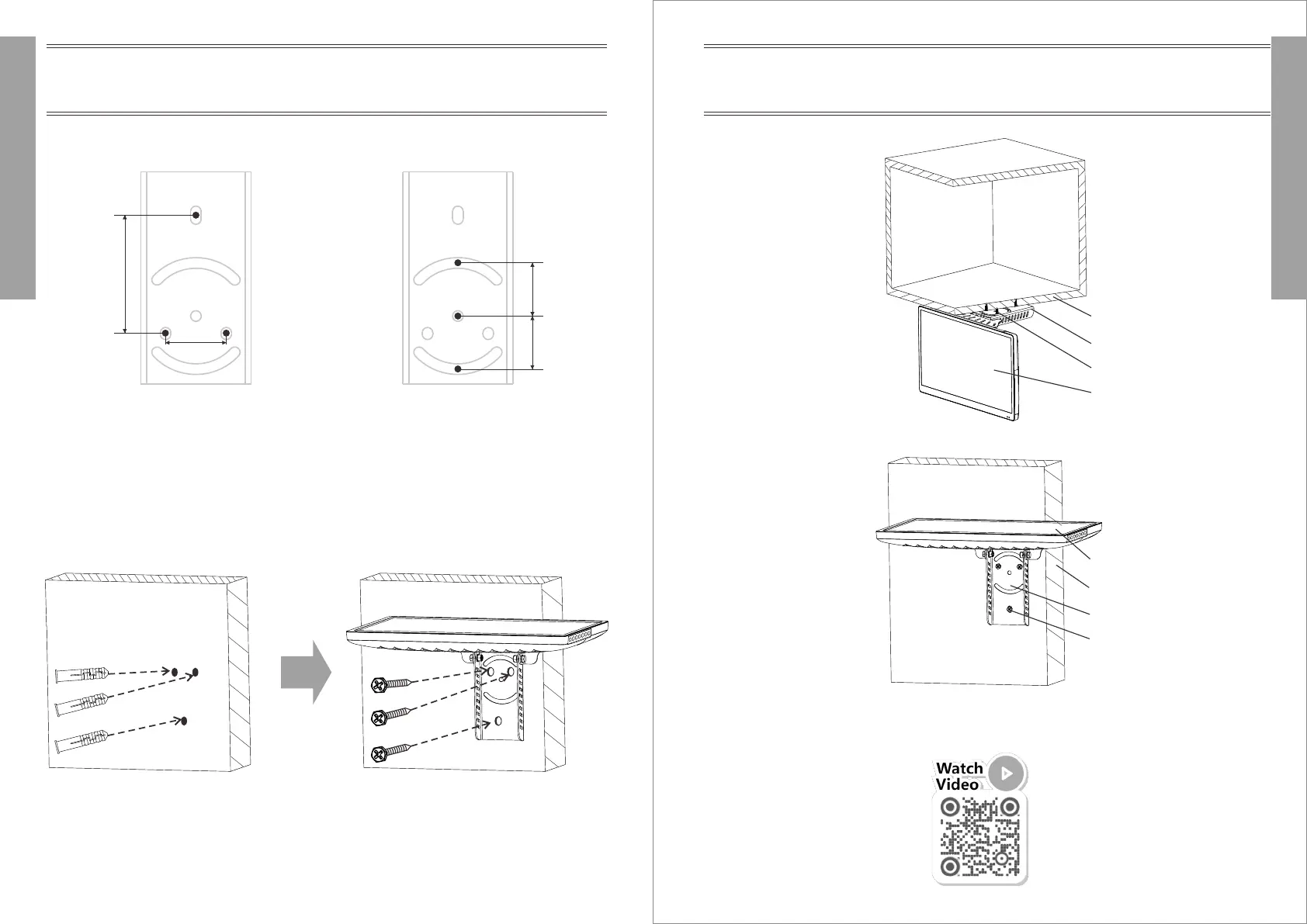

Installation Guidelines Installation Guidelines
1. Mark the fixing holes position of the machine according to the A or B holes on the bracket
and make sure that the installation space is enough to flip the machine.
2. Pre-drill the pilot holes before installing the TV to make it easier to secure.
2.1. When installing on a wooden base, first drill a 5-20mm pilot hole, and then secure the
bracket with M6-L20 screws.
2.2. When installing on a concrete base, first drill a 7-40mm pilot hole, then insert a plastic ex-
pansion pipe, and secure the bracket with M6-L20 screws.
A
A A
B
B
B
UseholeAifhorizontal
rotationisnotrequired
Forhorizontal
rotationuseholeB
35.00 mm
35.00 mm
78.00 mm
40.00 mm
