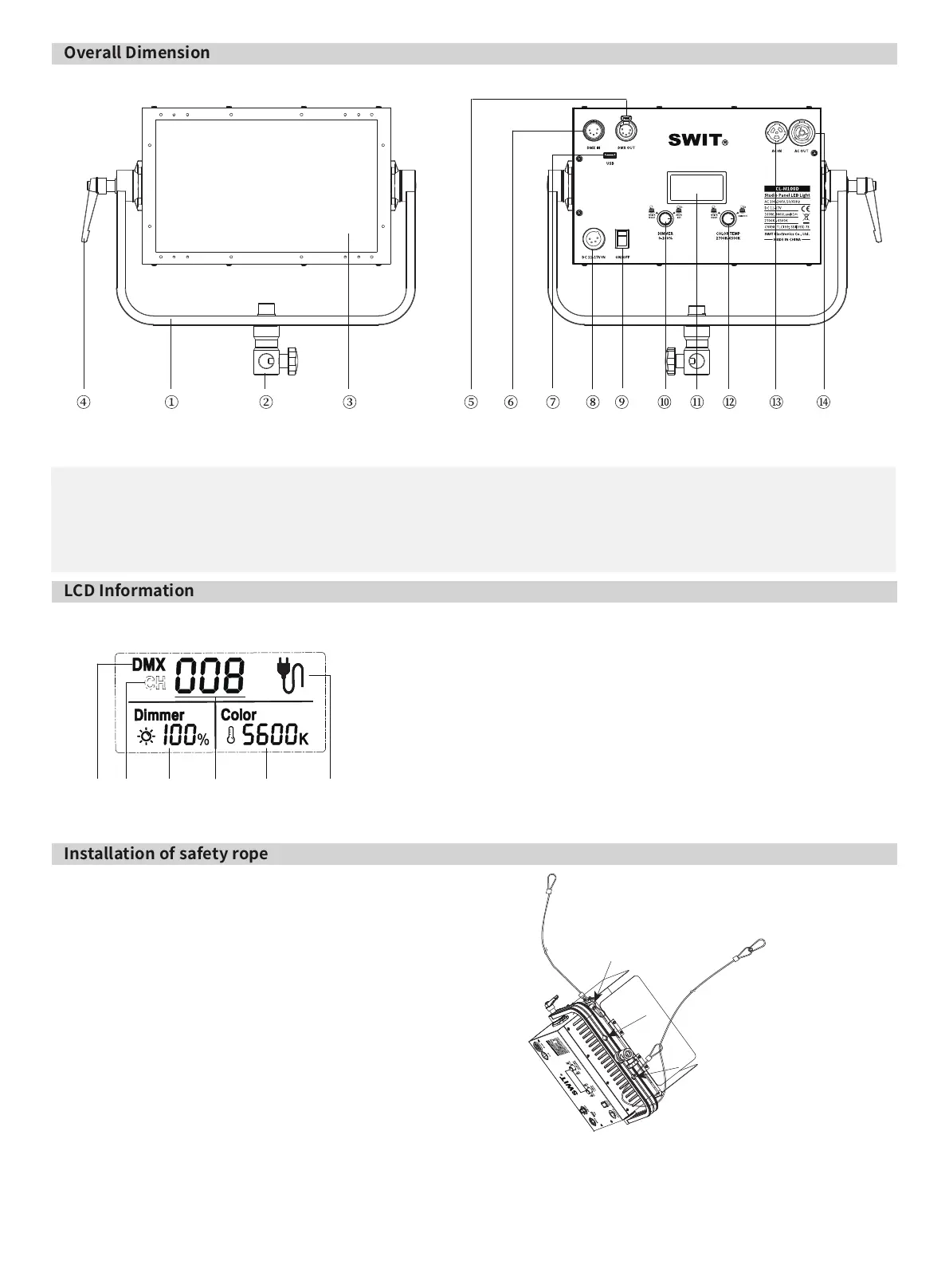

Overall Dimension
LCD Information
Installation of safety rope
1.Front View： 2.Back View
① U-Bracket
② York Connector
③ Diffuser
④ Fasten Knob
⑤ DMX OUT
⑥ DMX IN
⑦ USB
⑧ DC 11-17 IN
⑨ Power switch
⑩ DIMMER djusting knob
⑪ LCD
⑫ COLOR Temp adjusting knob
⑬ AC IN
⑭ AC OUT
Take“CCT=5600K，Dimmer=100%，Full capacity，DMX Communication mode，DMX address “008” for example：
Fig.5 LCD Information
Fig.6 Installation diagram of safety rope
① Current Mode⸺DMX Mode
② Current Mode⸺Group Mode
③ Current Dimmer value
④ Current communication address
⑤ Current color value
⑥ Power indicator
When lifting and using the lamps, please pass the safety rope
(hereafter referred to as "safety rope") through the lamp wire
hole and the round tube of the barn door according to the method
shown in Fig. 6, so as to establish an effective connection between
the product and the hanging devices such as hinges.
Precautions for use of safety rope are as follows:
1) If you use your own safety rope, please confirm that the load of
the safety rope is greater than that of this product;
2) The safety rope cannot be dragged on the rough surface;
3) Please check carefully before using the safety rope, where the
rope strand is broken or the number of broken wires in one twist
distance exceeds 6, the safety rope shall not be used.Safety rope
with obvious wear, corrosion, deformation and damage caused by heat or arc is not allowed to use;
4) The safety rope is strictly prohibited from contact with any charged body, hot object or flame;
5) The two safety rope buckles shall not be directly connected with each other, and D shackle in accordance with the load specifications
must be added.
① ② ③ ④ ⑤ ⑥
Fig.3 CL-M100D Front View Fig.4 CL-M100D Back View
