55
Click for contents
Drawing a Counting Line
Rule Switch: Leave this enabled.
Rule Type: Select the appropriate rule for the line drawn. The two rules avail-
able will change the in/out counting direction.
Using the mouse, click once at the start point, then click again at the end-
point. A counting line will be drawn between the two points. Direction A and
direction B will be shown, denoting the rule you can apply to the counting line.
A counting line can be drawn at any orientation, length or angle.

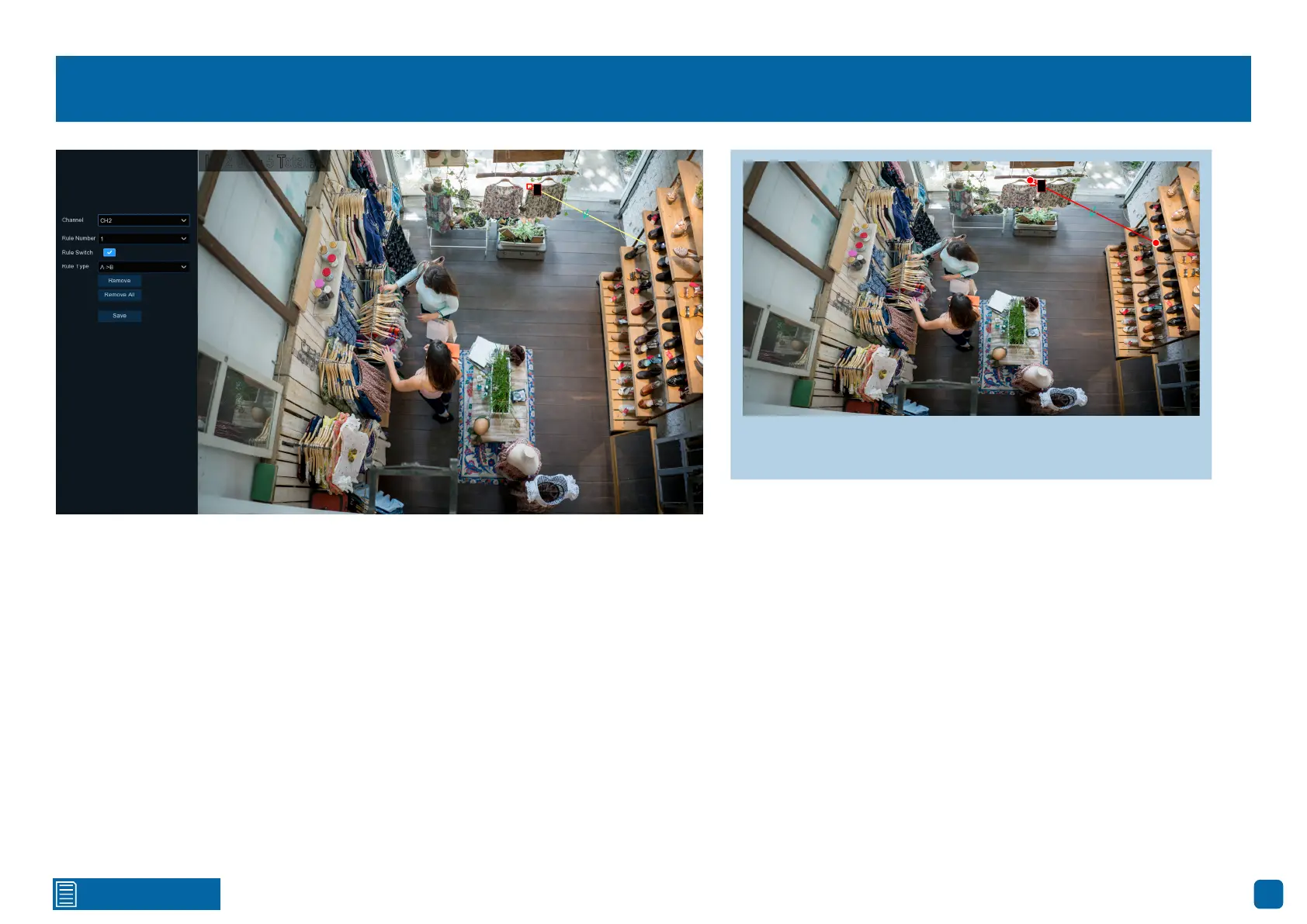

As illustrated above left, a counting line has been drawn across the shop en-
trance. The In counter will increase when a person has entered, and the Out
counter will increase when they leave.
Remove: See the example above right.
Remove All: Click this to remove all detection lines.
Save: Click this to save any changes made, then click “OK” to continue.
Right-click to exit.
To remove a counting line: Click the rule number checkbox
to select, then press the “Remove” button.
1
B
A
1
B
A
In: 2 Out: 5 Total: 7
