CONNECTING & CONTROLLING YOUR SUBWOOFER
OLED Display - Displays the level for Volume, Low Pass Filter Frequency, Phase, and other
settings
[ ] - Press this navigation button to cycle through the main features. The list of features are
in the following order: Volume > Low Pass Filter Frequency > Phase > Power Mode > Flip
Display > BT Lock (if enabled) > Firmware Version > Factory Reset
[ ] - Push repeatedly or long press to increase volume, raise the low pass frequency cut-off,
set to LFE, increase phase degree, or adjust other settings
[
] - Push repeatedly or long press to decrease volume, lower the low pass frequency
cut-off, reduce phase degree, or adjust other settings.
USB Type A Port - Used for Firmware updates and powering a USB device like the SVS Sound-
Path Wireless Audio Adapter.
3.5mm IR Input - This feature allows IR based control
systems to send specific commands to the subwoofer
amplifier. A powered IR repeater must be used, passive IR
sensors will not work. The IR control system must be able
to send NEC format commands. For more information
please consult your IR control system for more details
about the IR pin layout and IR codes that can be used for
programming with IR based control systems.
3V-12V Trigger Input - This feature will automatically turn
the subwoofer on/off when a signal is sent to the trigger
input from another component in the system (typically the
pre/pro or AV receiver). The other component in the
system must be equipped with a trigger output feature and

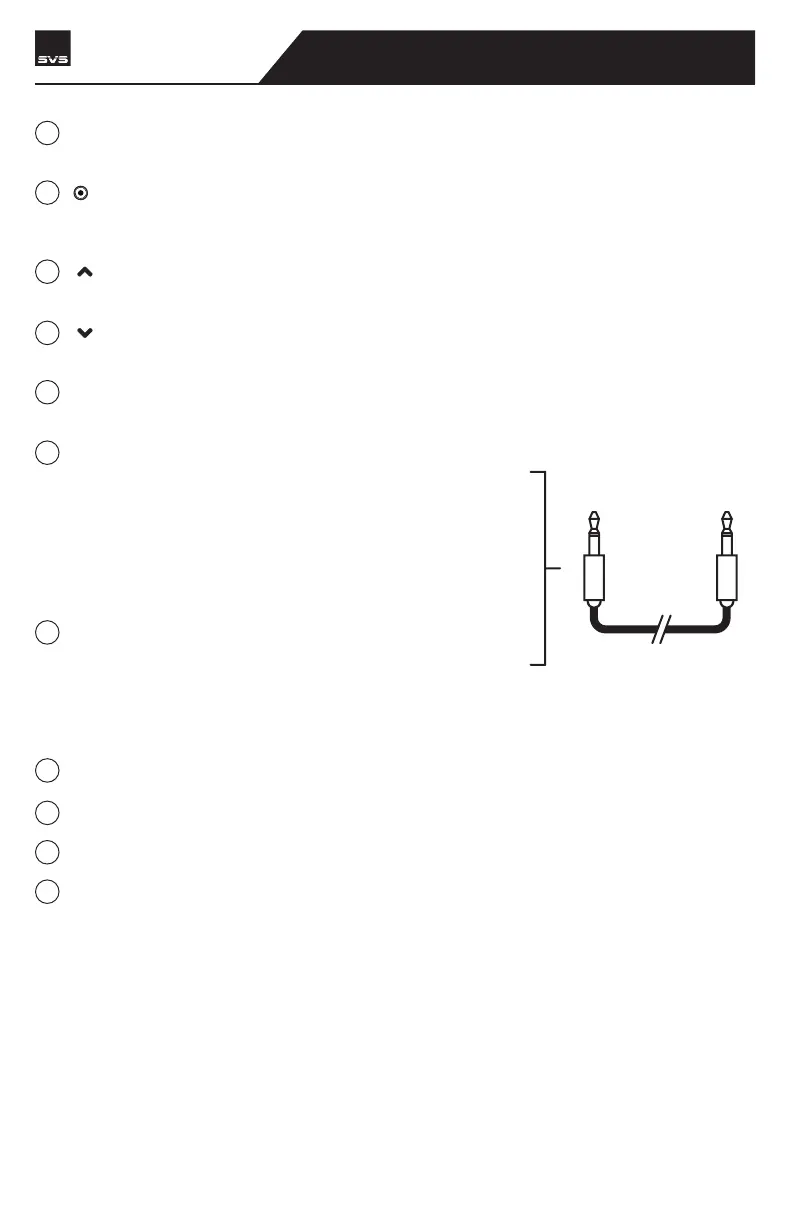

requires a TS 1/8” mono cable (pictured below).
Unbalanced (RCA) Line Level Inputs and Outputs
Balanced (XLR) Line Level Input and Outputs
On/Off Switch - Turns Subwoofer On/Off
AC Power Cord Receptacle
1/8” TS
MONO CABLE
1
2
3
4
5
6
7
8
9
10
11
SB-5000 R|Evolution
SUBWOOFER
