2. Installation and Components
1 2 3 4 5 6 7 8 9
SELF -TEST
A B
SHUTDOW N
OUTLETSAUX, RELAYS
MAINS
SX-AEP-209
AC OUTLET 9
~120V, 12A
ELITE
1 2 3 4 5 6 7 8
~120V, 16A FOR RCPT 1-2
~120V, 16A
CC T/ H
NO NC C
AUX A
NO NC C
AUX B
IO I OI
US B
RE SE T
SW
HW
~120V, 12A FOR RCPT 3-8
16A MAX LOAD TOTAL
B
D I/JV H K E
B
FCLG
MA A

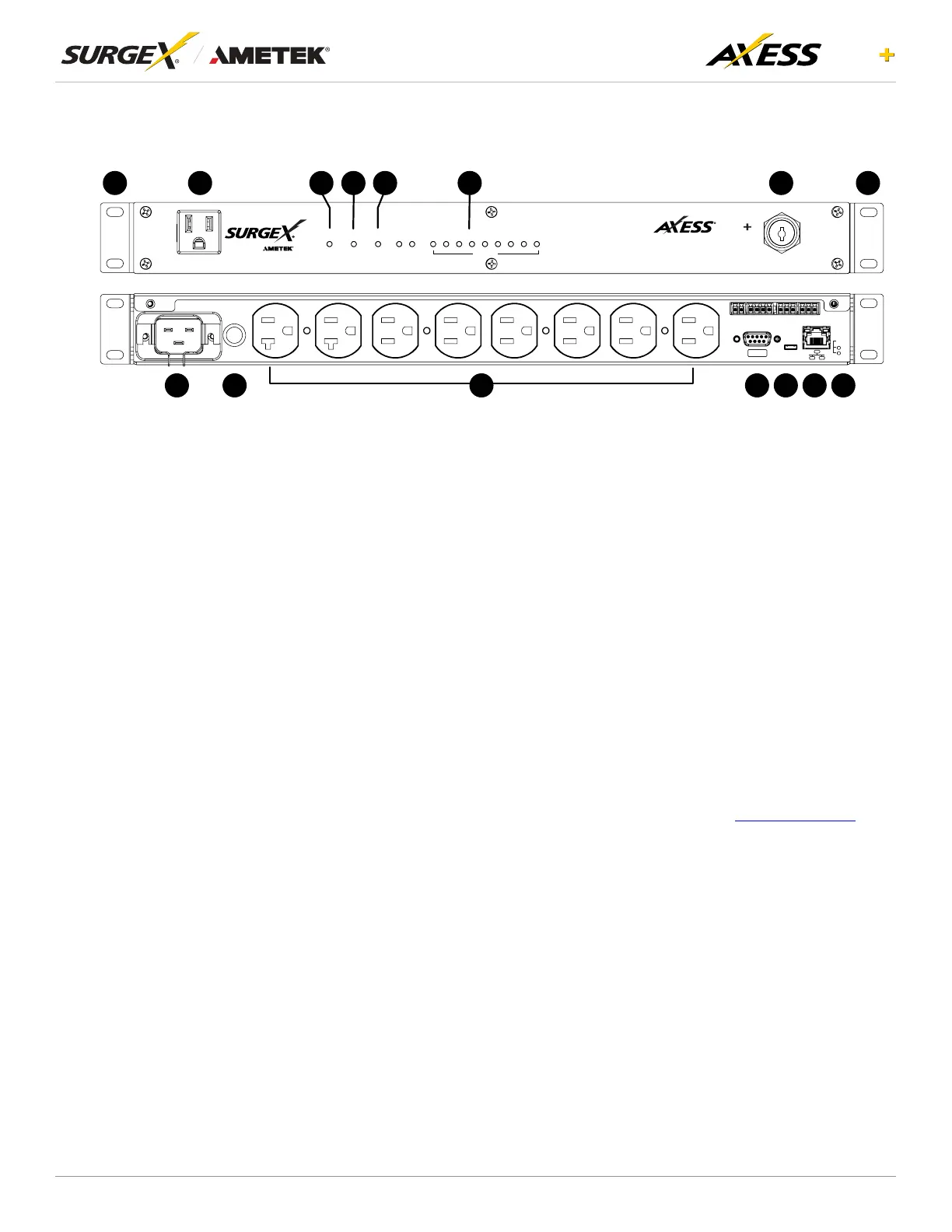

AxessELITE+isdesignedtobeinstalledhorizontallyontheequipmentrackorplacedonaatsurface.The
supplied nuts, bolts and washers must be used to mount the Axess ELITE+ to the rack through the mounting
holes (A) following the appropriate local regulations and requirements. If the Axess ELITE+ is used outside
of a rack, attach the supplied rubber feet.
2.1 AC Power: Output
Plug the equipment cord (B) into the suitable receptacles as needed. Please review Introduction,
Physical Interfaces, column Outputs, for the suitable plugs for each model’s receptacles.
2.2 AC Power: Input
Connect power to the Axess ELITE+ using an appropriately rated 3 wire grounding type power cord
provided with the equipment in inlet (V). Do not plug the unit into a relocatable power tap. Check the
outlet for correct polarity and presence of a ground conductor before plugging the unit in.
2.3 Ethernet and Account Admin Password
The RJ-45 connector for Ethernet (D) is situated on the back panel. The default IP Address is DHCP
assigned.TondIPaddress ofthe device,please usethediscovery toolat ametekesp.com. The
mDNS protocol is supported for dynamic device discovery.
The default login credentials are:
Username: admin
Default password: Adm1nXXXXXX
Where XXXXXX are the last six characters of the MAC address.
