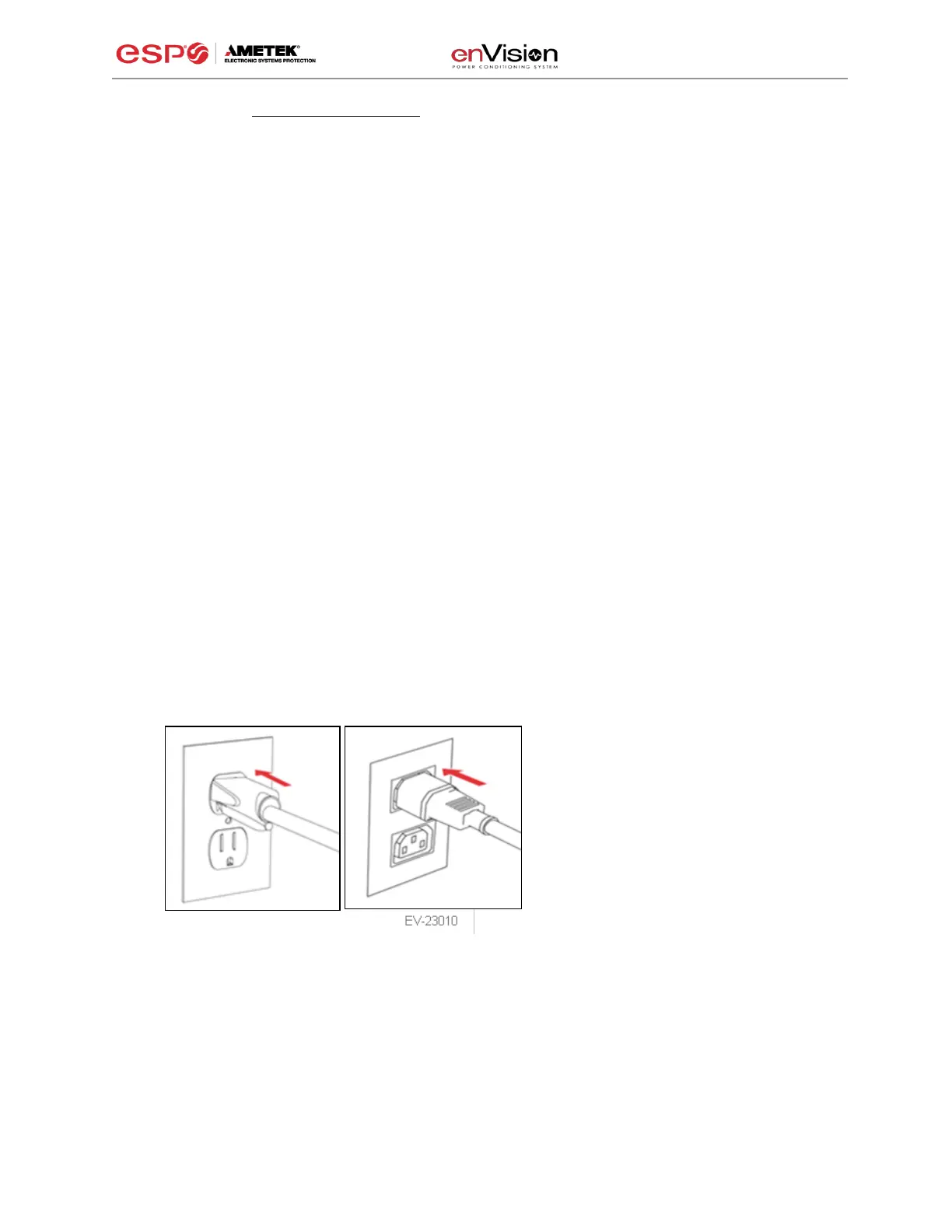

e. Connect Filter to Outlet: Plug the Filter input power cord into a properly grounded
and compatible branch circuit outlet. The plug is used as the disconnect device.
Please Note: Do not plug the Filter into a re-locatable power tap.
i. If the branch circuit outlet is correctly wired and the magnitude of the line
voltage is acceptable (between 105 and 140 V
RMS
for 120V products, or
between 190 and 260V
RMS
for 208-240V products), power will be
connected to the outlets of the Filter and the Green “System On” LED will
illuminate. Your equipment is now protected and installed correctly. You
may now turn all connected equipment back on.
ii. If the branch circuit outlet is incorrectly wired, the Red ‘Wiring Fault” LED
will illuminate and the LCD will display specific wiring fault information. If
this occurs, contact a licensed electrician to correct the outlet wiring. Refer
to Section III: Hardware/EnVision PCS Filter, for LCD EVENT MONITOR
display details.
iii. If neither “System On”, nor the “Wiring Fault” LED illuminates, there is
either no voltage at the receptacle or the magnitude of the line voltage is
not acceptable (less than 105 V
RMS
or above 140 V
RMS
for 120V products,
or less than 190 V
RMS
or above 260 V
RMS
for 208-240V products). If the
magnitude of the line voltage is not acceptable, specific information will be
displayed on the LCD. If this occurs, contact a licensed electrician to
trouble-shoot the abnormal voltage condition. Refer to Section III:
Hardware/EnVision PCS Filter, for LCD EVENT MONITOR display details.
1. You may also need to verify that the Filter is operating properly.
To test, plug the Filter into a known properly functioning outlet. If the “System
On” LED still does not illuminate in the functioning outlet, contact ESP at 1-800-
645-9721.
• Protection against short-circuits and earth
faults shall be provided as part of the building
installation.
• The socket-outlet shall be installed near the
equipment and shall be easily accessible.
• A dedicated Earth Ground (PE) wire is
required in addition to line voltage.
