© 2019 AMETEK Electronic Systems Protection / Technical Support: 1-800-645-9721 / ametekesp.com 5

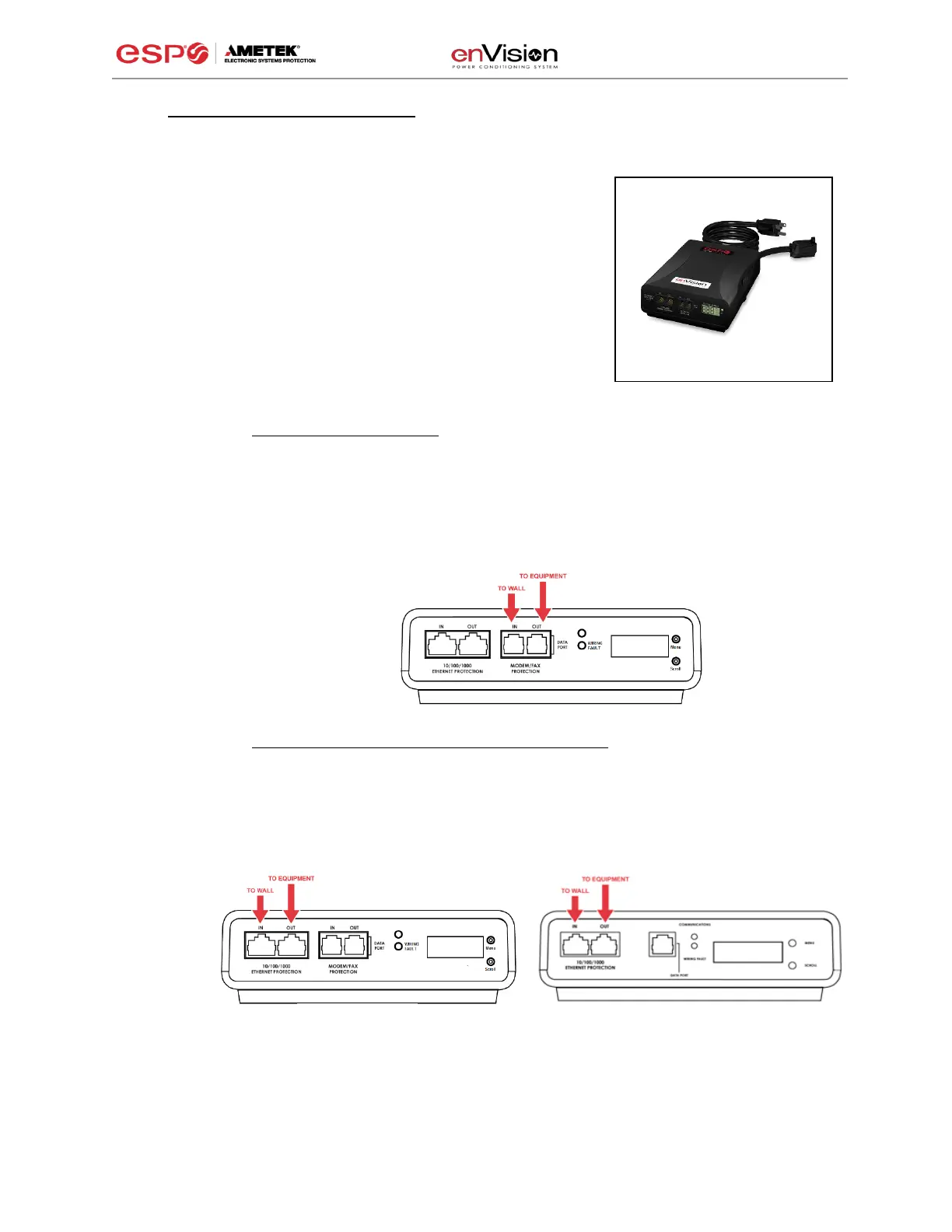

II. INSTALLATION INSTRUCTIONS
1. Filter Installation:
a. Turn off the machine you are connecting to the
Filter, and unplug the machine’s power cord
from wall outlet.
Éteignez la machine que vous connectez au
filtre et débranchez de la prise murale le cordon
d'alimentation de la machine.
Apague la máquina que intenta conectar al filtro
y desconecte el cable de alimentación de la
máquina del tomacorriente.
b. Connect Modem/Fax line: Connect a phone cord from the wall jack to the
“Modem/Fax” modular jack labeled “IN”, and then connect a second phone cord
from the “Modem/Fax” modular jack labeled “OUT” to the machine/equipment to
be protected. The EV-23010 and EV-23016 models do not support a Modem Fax
telco port.
Please Note: The Filter only provides connectivity and protection for a single phone line.
c. Connect “10/100/1000 ETHERNET” network line: Connect a CAT6 network cable
from the wall jack to the “10/100/1000 ETHERNET” modular jack labeled “IN”, and
connect a second CAT6 network cable from the “10/100/1000 ETHERNET”
modular jack labeled “OUT” to the equipment to be protected.
One CAT6 network cable is included with the Filter.
EV-23010
EV-23016
EV-12015/20
EV-20815/20
