© 2019 AMETEK Electronic Systems Protection | Technical Support: 800-645-9721 | surgex.com 9
User Manual
Firmware Version v2.10.300
5.

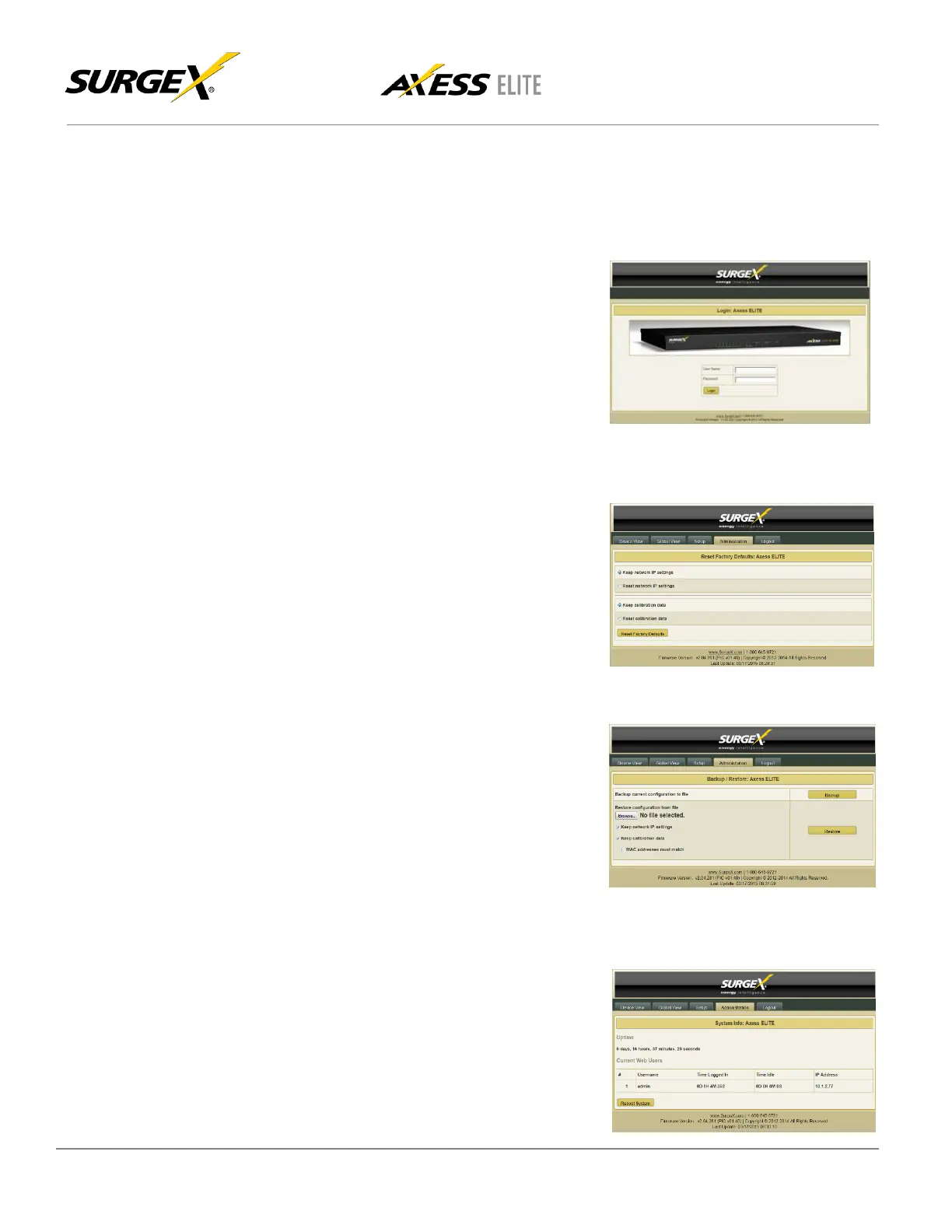

Web Server
The web server is built around 4 pages: Login, Device View, Global View, and Setup. Each page is discussed in
detail below.
5.1 Login
The Login page is the first page displayed when
a web browser makes a connection to the
Axess Elite. Enter a valid user name and
password in the “User Name” and “Password”
fields, and press “Login” to log in to the Axess
Elite.
A mobile login page is available at
IPAddress/mobile_login.html
5.2 Administration
5.2.1 Reset Factory Defaults
• Allows resetting of factory defaults from the
web interface.
• Options to keep or reset network IP settings.
• Options to keep or reset calibration data.
5.2.2 Backup/Restore
• Provides Configuration Management via
*.conf files.
• Backup current configuration to file.
• Restore configuration from previously saved
file.
- Option to keep current network IP
settings or use those in configuration file.
- Option to keep current calibration data or
use calibration values in configuration
file.
· If restoring the calibration values
stored in a configuration file, there
is an option to only restore the
values if the MAC address
of the unit and the MAC address in
the configuration file match.
5.2.3 System Info
• Displays number of logged in web users, time
each user has been logged in, and System
uptime. Also provides a Reboot button
