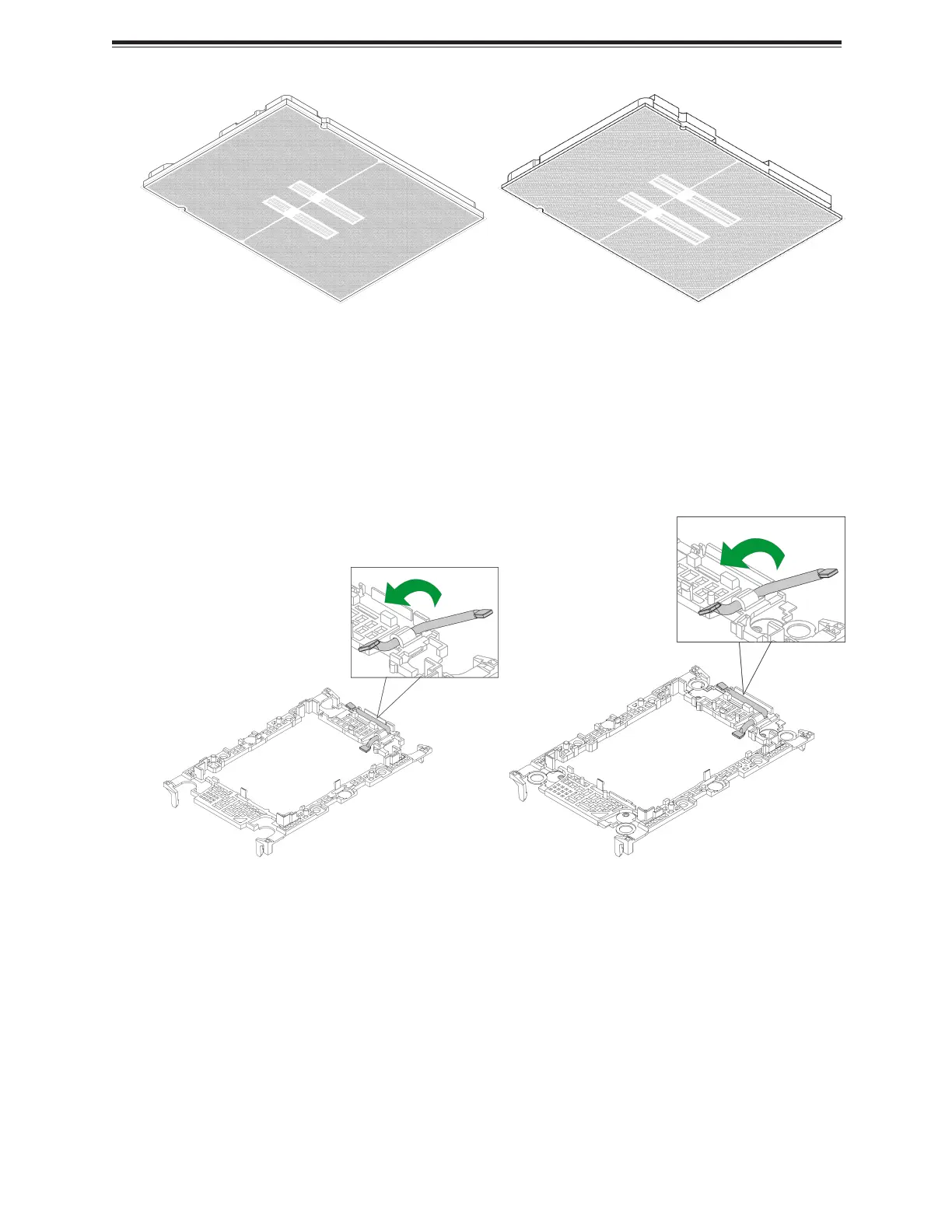

Figure 2-11. Processor (SP XCC E2A left, SP HCC/LCC E2B right)
Creating the Processor Carrier Assembly
To install a processor into the processor carrier, follow the steps below:
1. Before installation, make sure the lever on the processor carrier is pressed down as
shown below.
Figure 2-12. Carrier Lever (SP XCC left, SP HCC/LCC right)
2. Hold the processor with the LGA lands (gold contacts) facing up. Locate the small, gold
triangle in the corner of the processor and the corresponding hollowed triangle on the
processor carrier. These triangles indicate pin 1.
33
X14SBH: Component Installation
