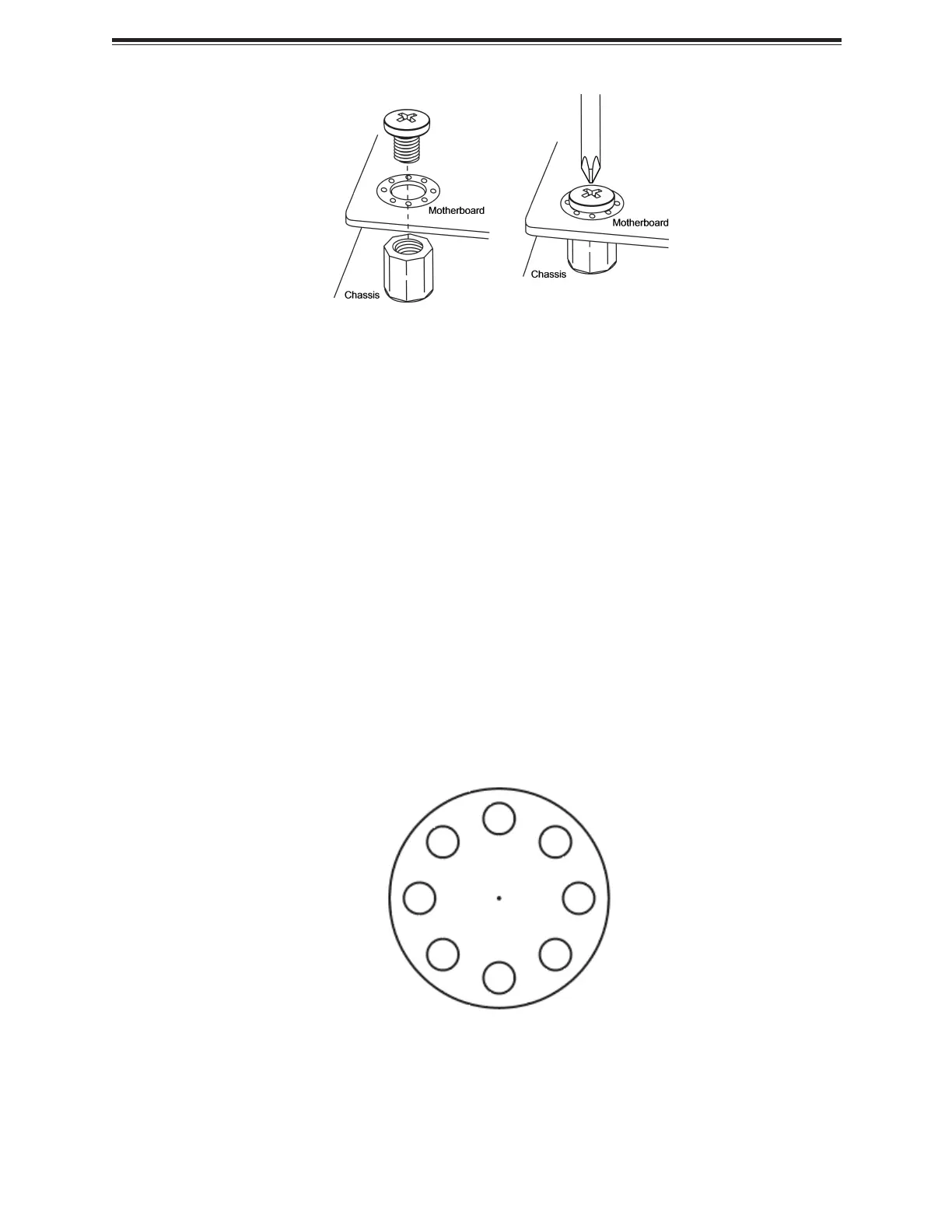

Figure 2-4. Align the Mounting Holes
4. Install standoffs in the chassis as needed.
5. Install the motherboard into the chassis carefully to avoid damaging other motherboard
components.
6. Insert pan head #6 screws into the mounting holes on the motherboard and the matching
mounting holes on the chassis.
7. Make sure that the motherboard is securely placed in the chassis.
Mounting Holes
The following section provides information on the mounting holes on this motherboard.
l
Motherboard mounting holes (9)
Nine mounting holes, located at MH1–MH9, are used to secure the motherboard onto
the chassis.
Figure 2-5. Motherboard Mounting Hole
l
Cut out (1)
32
X14DBT-FAP/-FLAP: Component Installation
