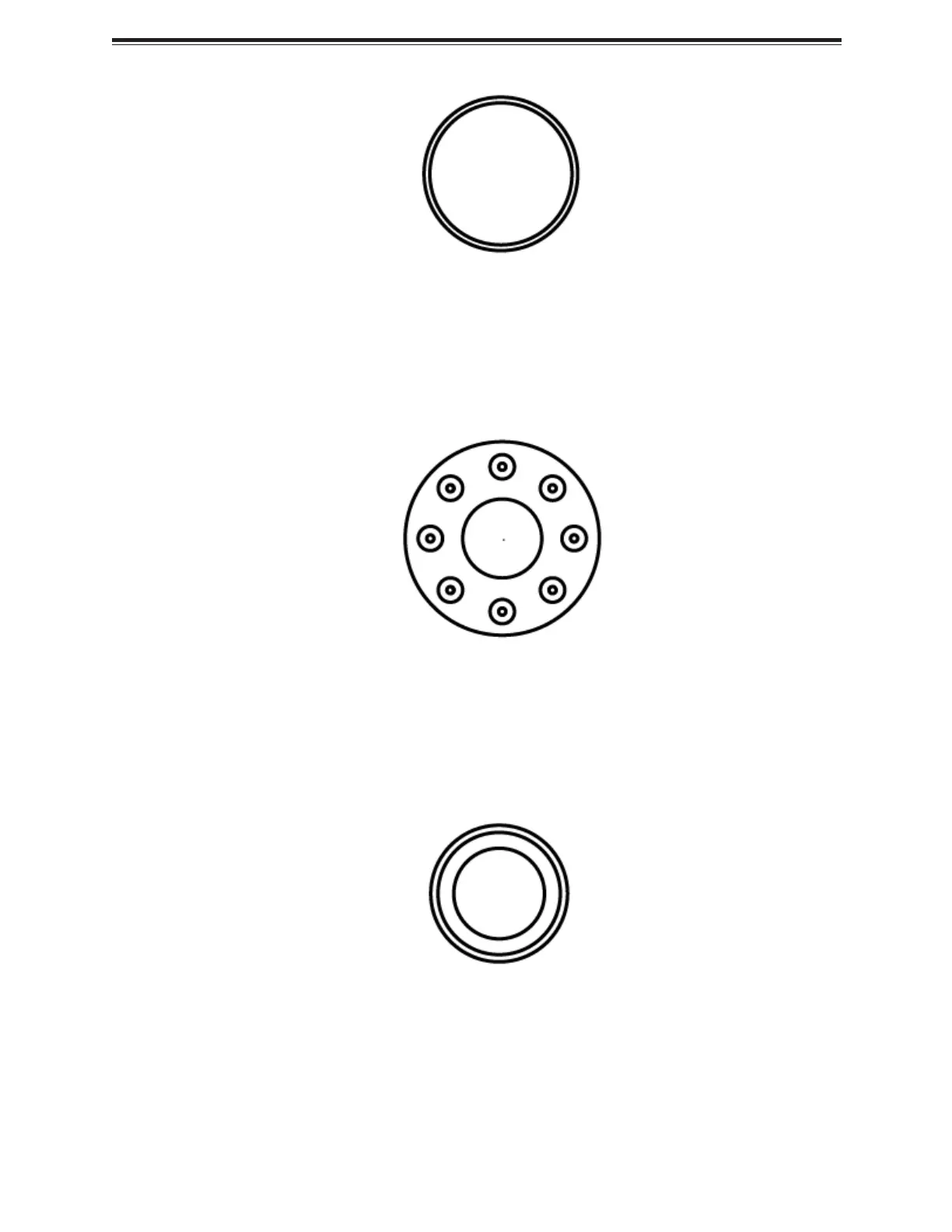

Figure 2-2. BMC Screw Hole
l
Motherboard Mounting Hole
Ten mounting holes, located at MH33–MH42, are used to attach the motherboard to the
tray.
Figure 2-3. Motherboard Mounting Hole
l
Liquid Cooling Standoff
Twelve mounting holes, located at MH19–MH24, MH27–MH32, are used to secure the
liquid cooling solution.
Figure 2-4. Liquid Cooling Standoff
30
X14DBG-MAP: Component Installation
