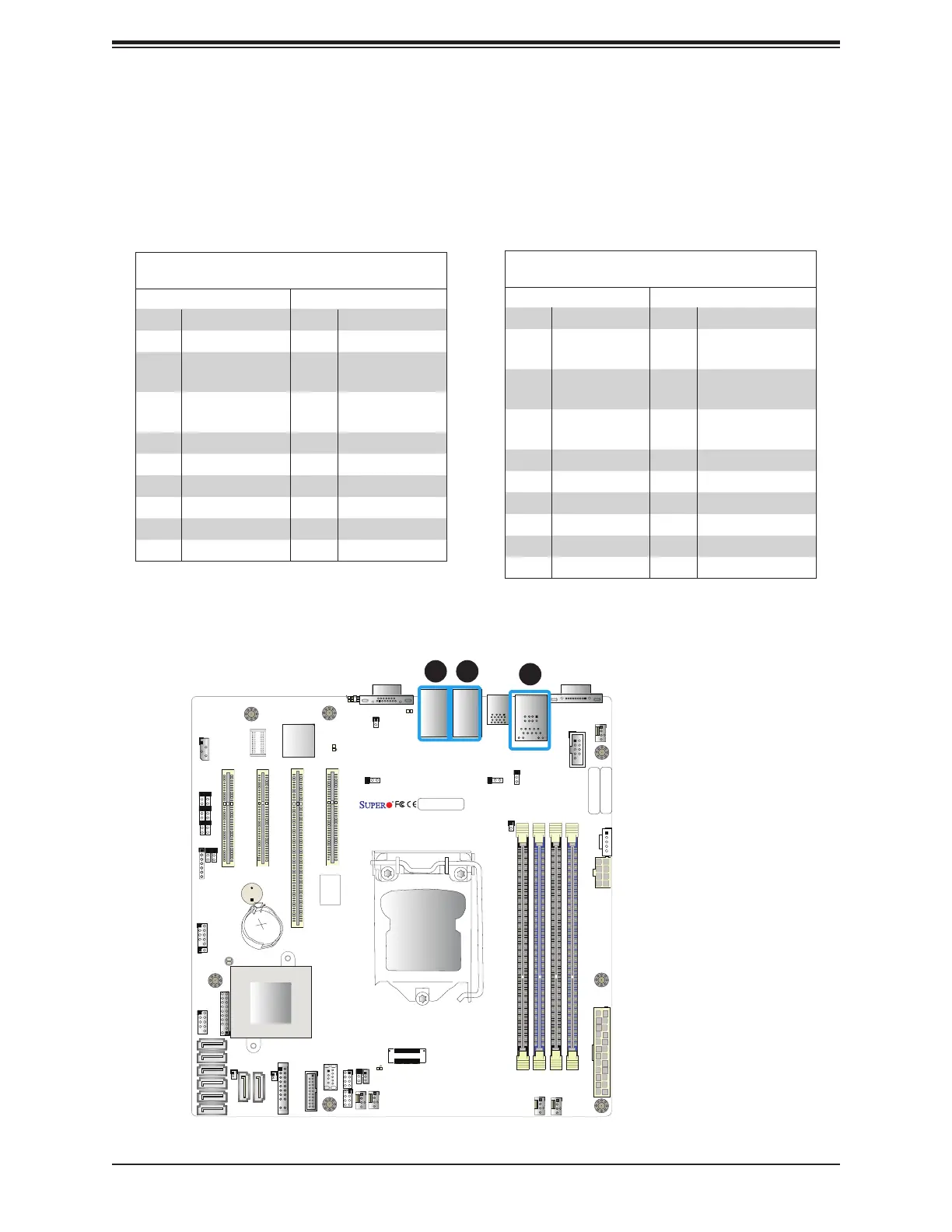

X11SSM(-F)/X11SSL(-F) User Manual
LAN Ports
Two Gigabit Ethernet ports (LAN1 and LAN2) are located on the I/O back panel on the
motherboard. In addition, a dedicated IPMI LAN is located above USB 0/1 ports on the
back panel on the -F boards. All of these ports accept RJ45 cables. Please refer to the LED
Indicator section for LAN LED information.
LAN Ports 1/2
Pin Denition
Pin# Denition Pin# Denition
1 TD0- 11 P3V3_Dual
2 TD0+ 12 Act LED (Yellow)
3 TD1- 13
Link 1000 LED
(Amber)
4 TD1+ 14
Link 100 LED
(Green)
5 TD2- 15 GND
6 TD2+ 16 GND
7 TD3- 17 GND
8 TD3+ 18 GND
9 COMMCT
10 GND
IPMI_LAN (-F versions only)
Pin Denition
Pin# Denition Pin# Denition
9 19 GND
10 TD0+ 20
Act LED
(Yellow)
11 TD0- 21
Link 100 LED
(Green)
12 TD1+ 22
Link 1000 LED
(Amber)
13 TD1- 23 SGND
14 TD2+ 24 SGND
15 TD2- 25 SGND
16 TD3+ 26 SGND
17 TD3-
18 GND
CPU
VGA
LAN2
LAN1
LE1
COM1
COM2
USB6/7
(3.0)
USB0/1
IPMI_LAN
JOH1
JUIDB1
BAR CODE
IPMI CODE
MAC CODE
FAN4
JPWR2
JPWR1
JPL1
DIMMB2
DIMMB1
DIMMA2
DIMMA1
LED BMC
JPI2C1
JPL2
CPU SLOT7 PCI-E 3.0 x8
FAN1
FAN2
FAN3
FANA
LED PWR
JSTBY1
JWD1
I-SGPIO1 I-SGPIO2
USB10(3.0)
USB8/9(3.0)
JSD1
JF1
I-SATA0
I-SATA1
JSD2
I-SATA2
I-SATA3
I-SATA4
I-SATA5
I-SATA6
I-SATA7
USB4/5
JTPM1
JBT1
JL1
USB2/3
JD1
JPG1
JBR1
JPME2
JPB1
JI2C1
JI2C2
X11SSM(-F)/X11SSL(-F)
REV:1.01
Designed in the USA
BMC
MEGERAC
LICENSE
CPU SLOT6 PCI-E 3.0 x8(IN x16)
PCH SLOT5 PCI-E 3.0 x4(IN x8)
PCH SLOT4 PCI-E 3.0 x4(IN x8)
JIPMB1
SP1
Intel PCH
BT1
1. LAN1
2. LAN2
3. IPMI LAN (-F
versions only)
12
3
