19

Chapter 2: Server Installation

3. In each rail set, the two sections are screwed together to keep them immobile during

shipping. Release these screws just enough to allow the rail sections to slide apart. Note

the arrow on the rail, which indicates the end that attaches to the front of the rack.

4. Slide the rails sections apart to match the depth of the rack. Position the rails with the

template and secure the front of each to the front of the rack with two athead screws,

then secure the back of each rail to the rear of the rack with two athead screws (see

Figure 2-3).

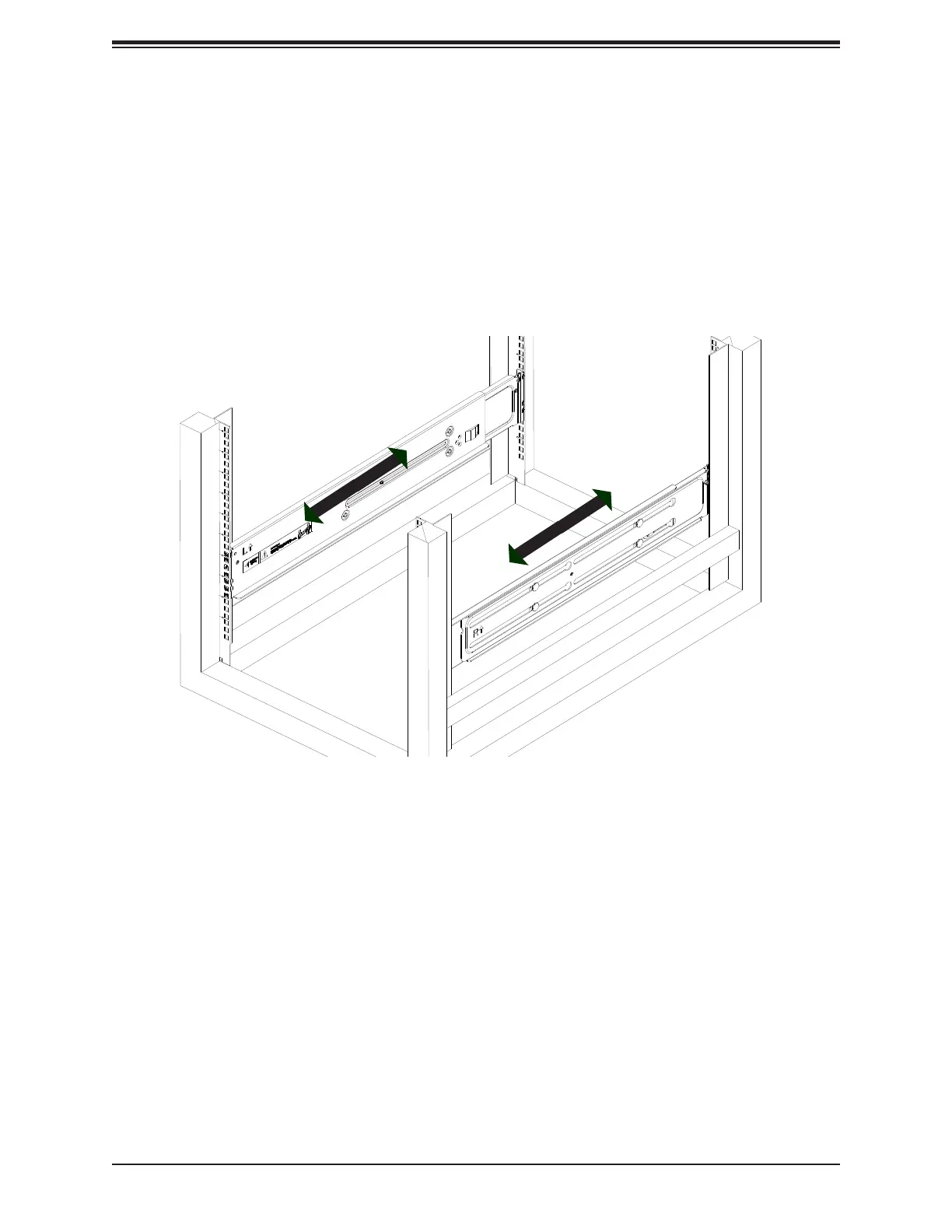

Figure 2-3. Sliding the Rail to the Depth of the Rack

Important: do not pick up the server with the front handles. They are designed to pull the

system from a rack only.
