Chapter 1: Introduction

System Block Diagram

The block diagram below shows the connections and relationships between the subsystems

and major components of the overall system.

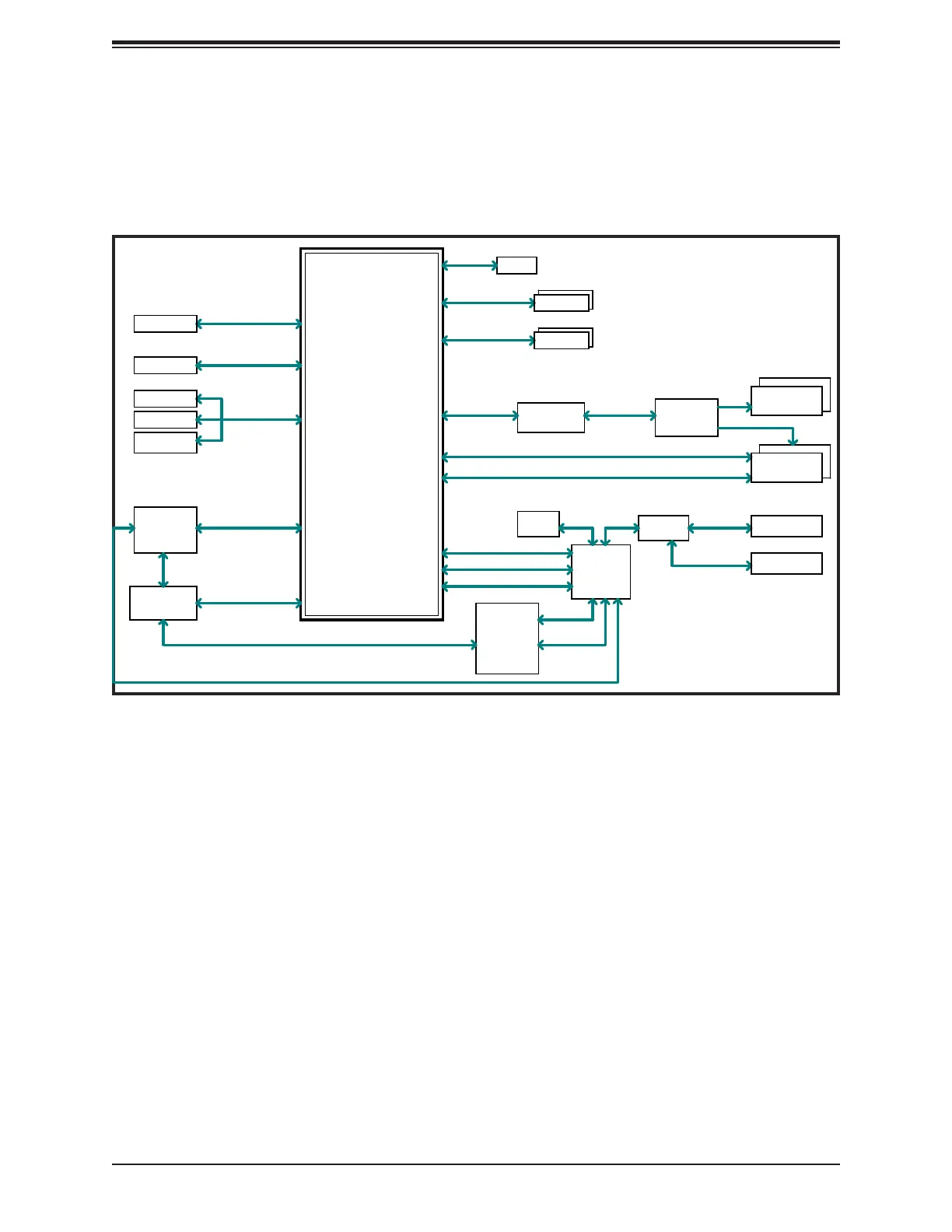

Figure 1-4 System Block Diagram

PCIe p12-x16 SLOT

PCIe5.0 p12-x16 (L0 - L15)

PCIe5.0 p12-x2 (L18-L19)

PCIe5.0 p12-x2 (L16-L17)

RGMII

PCIe to SATA

SERDES

1x RMII

AST2600

BMC

AMD

LAN PHY

up to 5200MHz

USB2.0(P0/P1)

AM5

CPLD

2x USB2.0 (Hub_P2-P3)

MUX

eSPI Bus

PCIe5.0 x1(L26)

UDIMM-A2

UDIMM-B2

DDR5 (CHB)

UDIMM-B1

DDR5 (CHA)

UDIMM-A1

SlimSAS PORTS

(2x SATA)

USB HUB

TPM2.0

PCIe5.0 p12-x4 (L20 - L23)

SPI Bus

PCIe5.0 p12-x2 (L24 - 25)

1x PCIe p12-x4

2x USB2.0

1x RMII

1x USB2.0 (P2)

MLP SLOT

2x USB2.0 (Hub_P0-P1)

EEPROM

SPI 256Mb

80 port Header

M.2 PCIE

(Socket LGA-1718)

up to 5200MHz

2x SATA-III

SMBUS

KVM connector

VGA

COM

MDI

Backplane

RJ45 (Front)

VRM

SVI3

PCIe5.0 x1(L27)

SFF-8639 x2

NVMMe
