Chapter 2: Installation and Setup Chapter 2: Installation and Setup
2. Turn the processor over (with the gold pins up). Locate the CPU keys on the processor
and the four latches on the carrier.
CPU Key
CPU Key
Latch
Latch
Latch
Latch
SP XCC
CPU Key
CPU Key
Latch
Latch
Latch
Latch
SP MCC/LCC
Latch
Latch
Latch
Latch
CPU Key
CPU Key
SP HBM

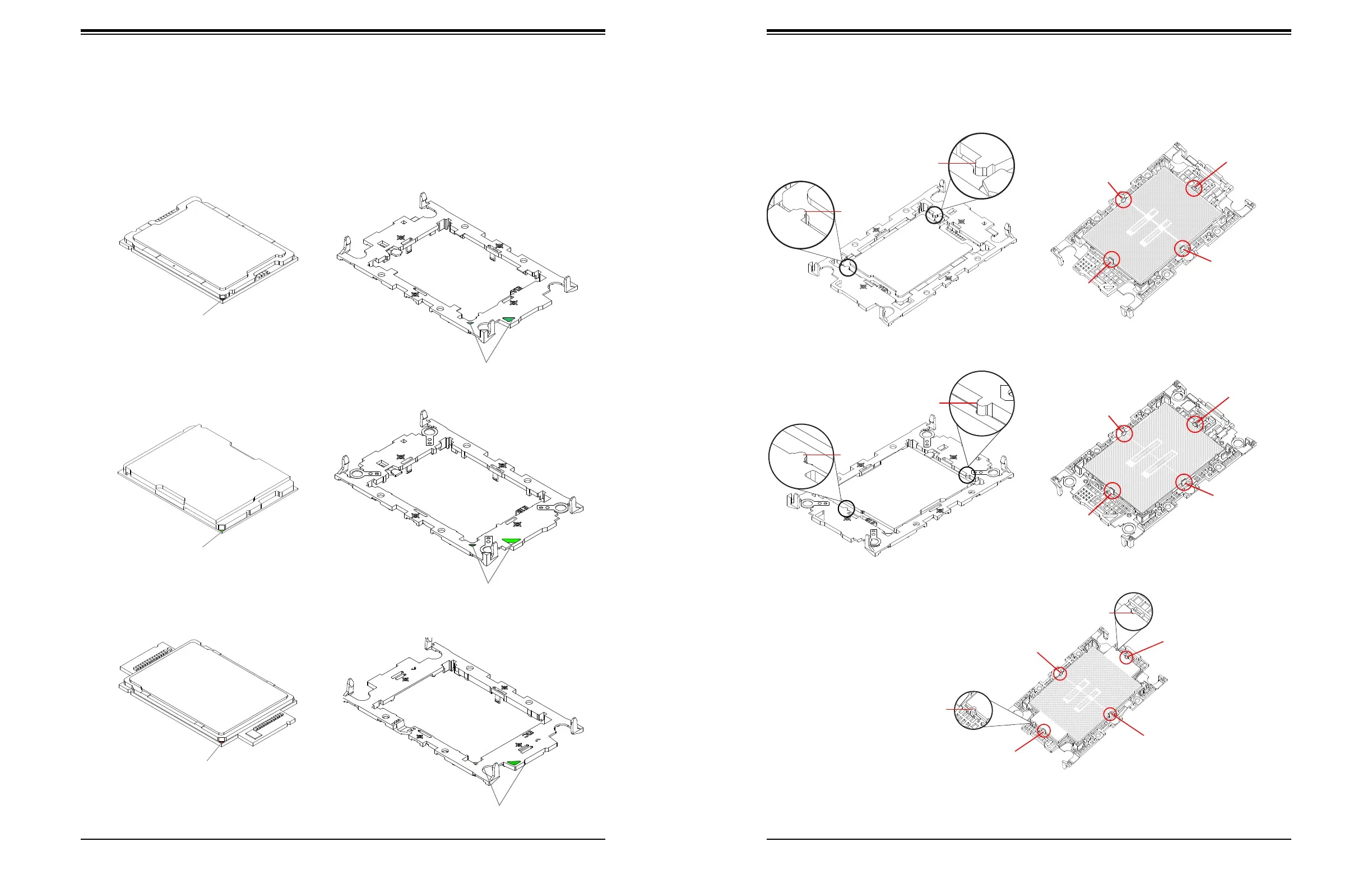

Create the Processor Carrier Assembly
Assembling the Process Carrier Assembly
1. Hold the processor with the gold pins (LGA lands) facing down. Locate the gold triangle
at the corner of the processor and the corresponding hollowed triangle on the processor
carrier as shown below. These triangles indicate the location of pin 1.
Pin 1
Pin 1
Carrier E1A
Pin 1
Carrier E1B
Pin 1
SP XCC
SP MCC/LCC
Pin 1
SP HBM
Pin 1
Carrier E1C
