Control Panel Features

Feature State Description

KVM/UID LED

Blue,

steady

Indicates that KVM has been initialized.

Blue,

blinking

Unit Identifier indicator (The UID function is activated with a

management program.)

NIC Activity

LED

Green,

flashing

Indicates traffic (Tx and RX data) on the LAN connection to this

blade module.

Orange,

flashing

Indicates traffic over the network (when present in the system).

System Fail

LED

Red

Indicates a fatal error. This may be a memory error, a VGA error, or

any other fatal error that prevents the operating system from

booting.

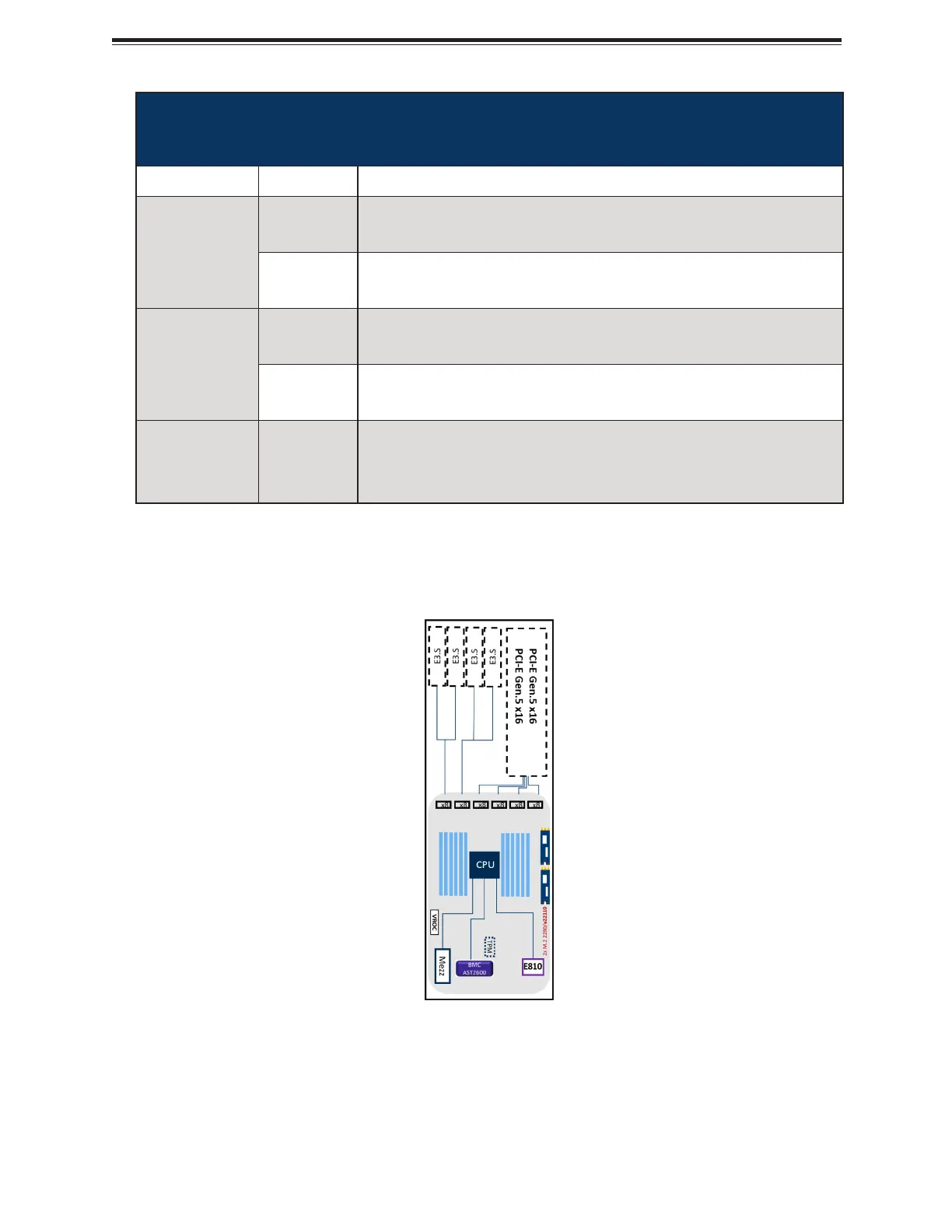

System Block Diagram

The following block diagram displays the connections and relationships between the

subsystems and major components of the SBI-612BA-1NE34-LCC blade.

Figure 1-3. System Block Diagram

16

Blade Server SBI-612BA-1NE34-LCC: Introduction
