SuperBlade Server SBI-420P-1(C2/T3)N User's Manual
36
M.2 Solid State Drives
One option for the mezzanine card supports M.2 solid state drives (SSDs) of 80mm in length.
There is an hole in the motherboard stando for a plastic clasp.

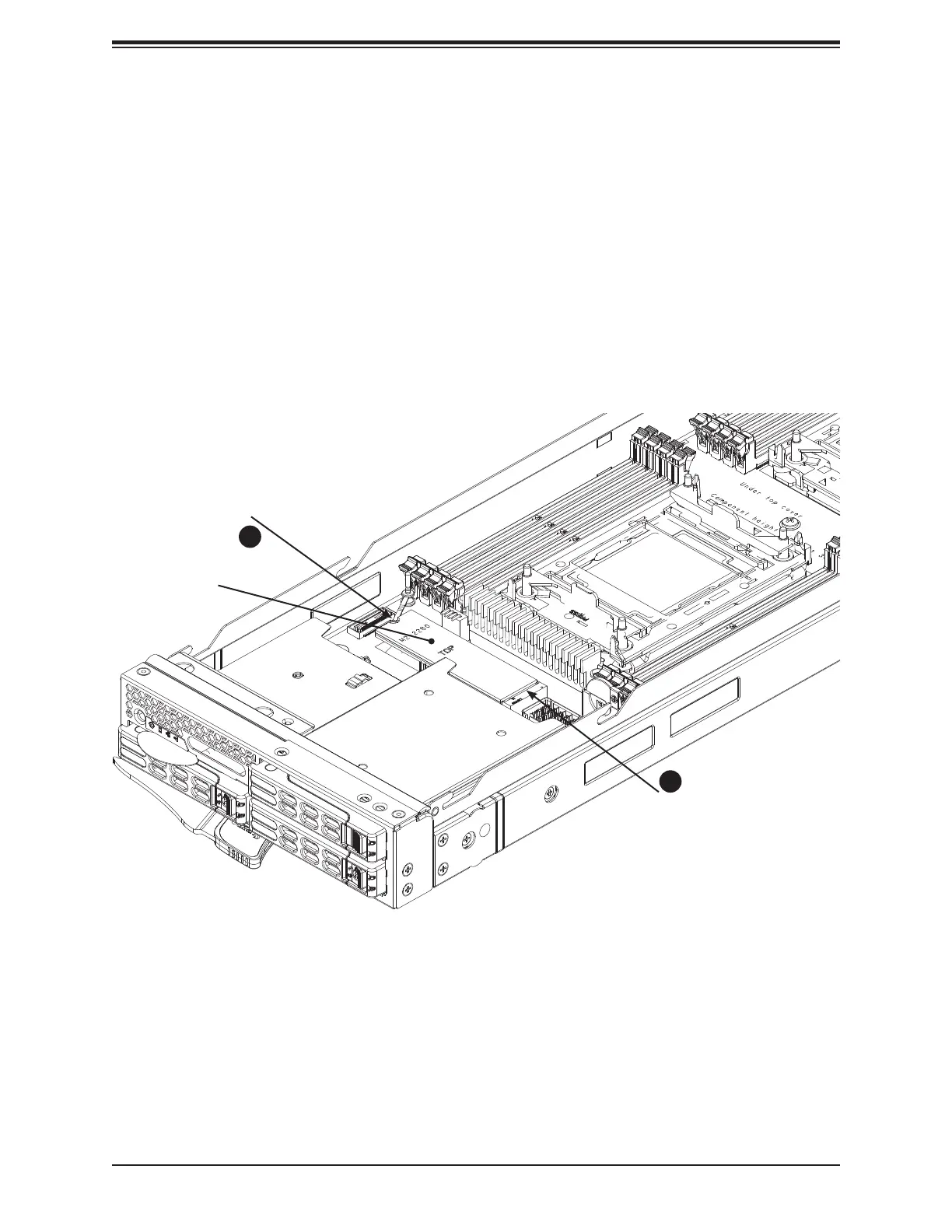

Figure 2-7. Installing M.2 SSD
Installing an M.2 SSD
Caution: Use industry-standard anti-static equipment, such as gloves or wrist strap, and
follow precautions to avoid damage caused by ESD.
1. Insert the SSD into the socket on the motherboard. Then push it at against the
stando.
2. Secure the SSD by rmly inserting the plastic plug into the stando.
M.2 SSD
Plastic Plug
M.2 Socket
2
1
