Chapter 1: Introduction

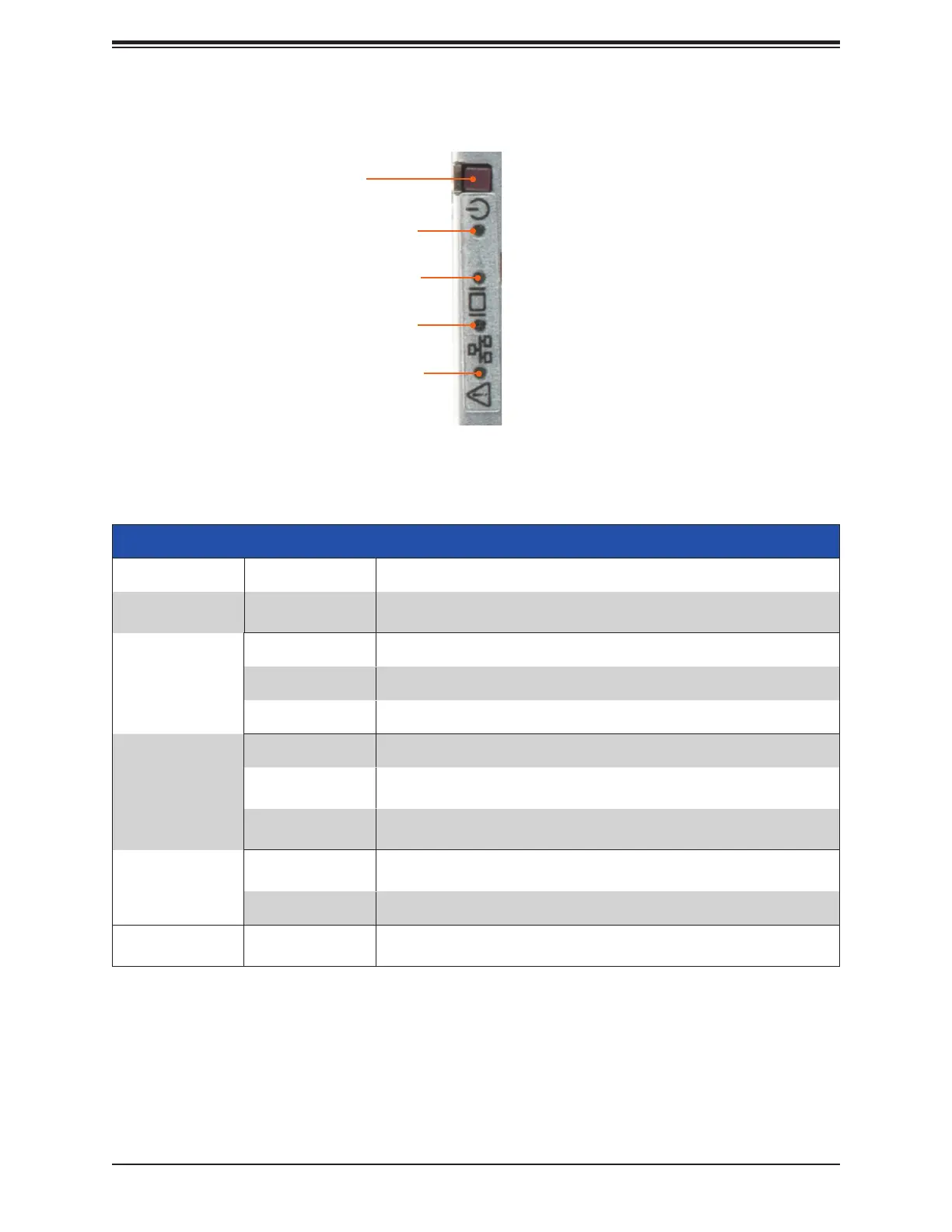

Figure 1-2. Control Panel

Control Panel Features

Features Color/State Description

Power Button

The main power switch applies or removes primary power from the

power supply to the server but maintains standby power.

Power LED

Green Power on

Amber, ashing Before the BMC is ready, blinks until every node is ready

Amber, steady Power o󰀨

KVM/UID LED

Blue, steady Indicates that KVM has been initialized

Blue, ashing

slowly

Unit Identier indicator (The UID function is activated with a

management program.)

Blue, ashing

quickly

Firmware revision

NIC LED

Green, ashing

Indicates tra󰀩c (Tx and RX data) on the LAN connection to this blade

module

Orange, ashing Indicates tra󰀩c over the network (when present in the system)

System Fail LED Red

Indicates a fatal error. This may be a memory error, a VGA error or any

other fatal error that prevents the operating system from booting.

Control Panel

Power Button

KVM/UID LED

Power LED

NIC LED

System Fail LED
